Strain relief on four sides, empty housing, internal height 175 mm 560 | 510 | 200 | 225 | 175

Strain relief on four sides, empty housing, internal height 175 mm

Item no. 7215786 | EAN 4012196814770

Item no. / Types

Dimension B

Dimension b

Dimension H	200 mm

Dimension t	225 mm

Dimension t	175 mm

Product description

Product description

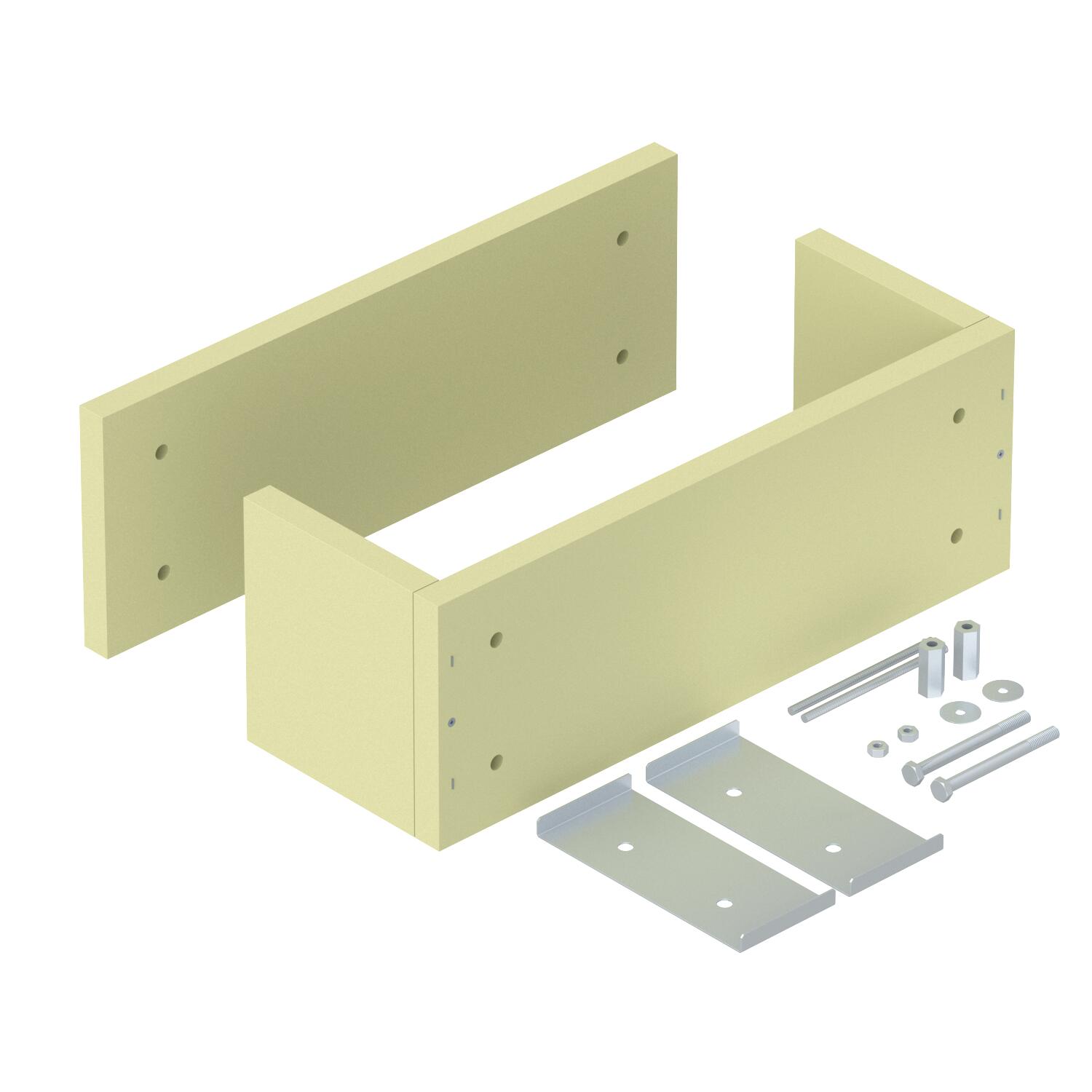

Strain relief as an effective support measure for vertical cable routing, according to DIN 4102 Part 12. Approved for all cable types and vertical ladders, created as suspended mounting. Maintenance of electrical function classes E30 to E90. Empty housing for individual filling with the PYROSIT® NG fire protection foam and/or PYROPLUG® Block insulation systems, incl. mounting set and labelling panel.

Technical data

Technical data

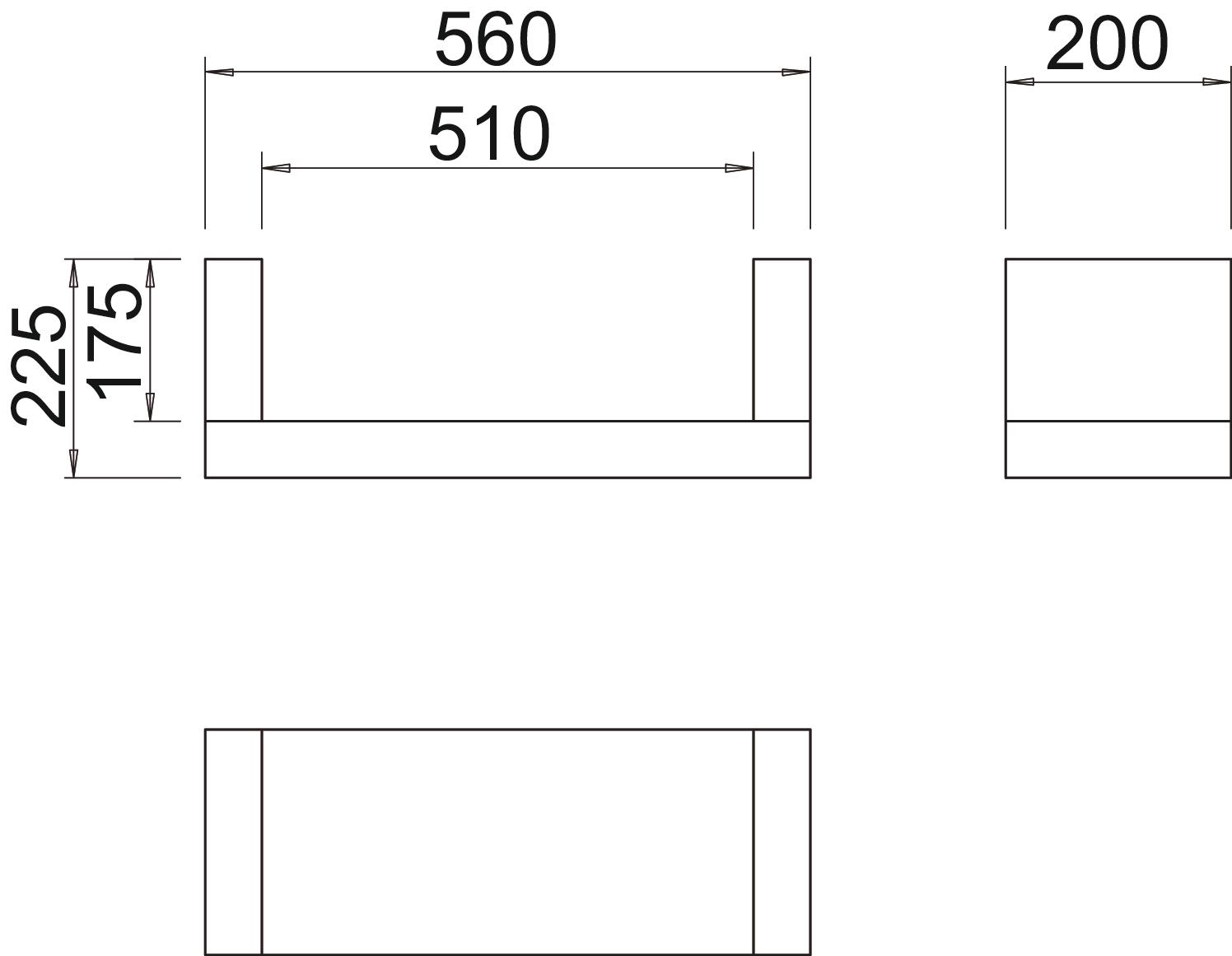

Dimension	560x225x200
Dimension b	510 mm
Dimension B	560 mm
Dimension H	200 mm
Dimension t	175 mm
Dimension t	225 mm

Height	225 mm
Length	200 mm
Material	Calcium silicate
Shape	Rectangular
Thickness	25 mm
Width	560 mm

All types

All types

Types	Dimension B	Dimension b	Dimension H	Dimension t	Dimension t	Item no.	Quantity	SSU
ZSE90-21-17 LH	260 mm	210 mm	200 mm	225 mm	175 mm	7215780	piece	1 piece
ZSE90-31-17 LH	360 mm	310 mm	200 mm	225 mm	175 mm	7215782	piece	1 piece
ZSE90-41-17 LH	460 mm	410 mm	200 mm	225 mm	175 mm	7215784	piece	1 piece
ZSE90-51-17 LH	560 mm	510 mm	200 mm	225 mm	175 mm	7215786	piece	1 piece
ZSE90-61-17 LH	660 mm	610 mm	200 mm	225 mm	175 mm	7215788	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Mixer pipe set	FBS-M	7203803	PU	1 PU
Professional cartridge pistol	FBS-PH	7203806	piece	1 piece
Identification plate for strain relief	KS-ZSE DE	7215750	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
2-component fire protection foam PYROSIT® NG	FBS-S	7203800	piece	1 piece
PYROPLUG® Block foam block	FBA-B200-14	7202505	piece	4 piece
PYROPLUG® screed filler	FBA-SP	7202322	piece	1 piece
