Strain relief clip 7909
Item no. 1443011 | EAN 4012195135616
- Product description
-

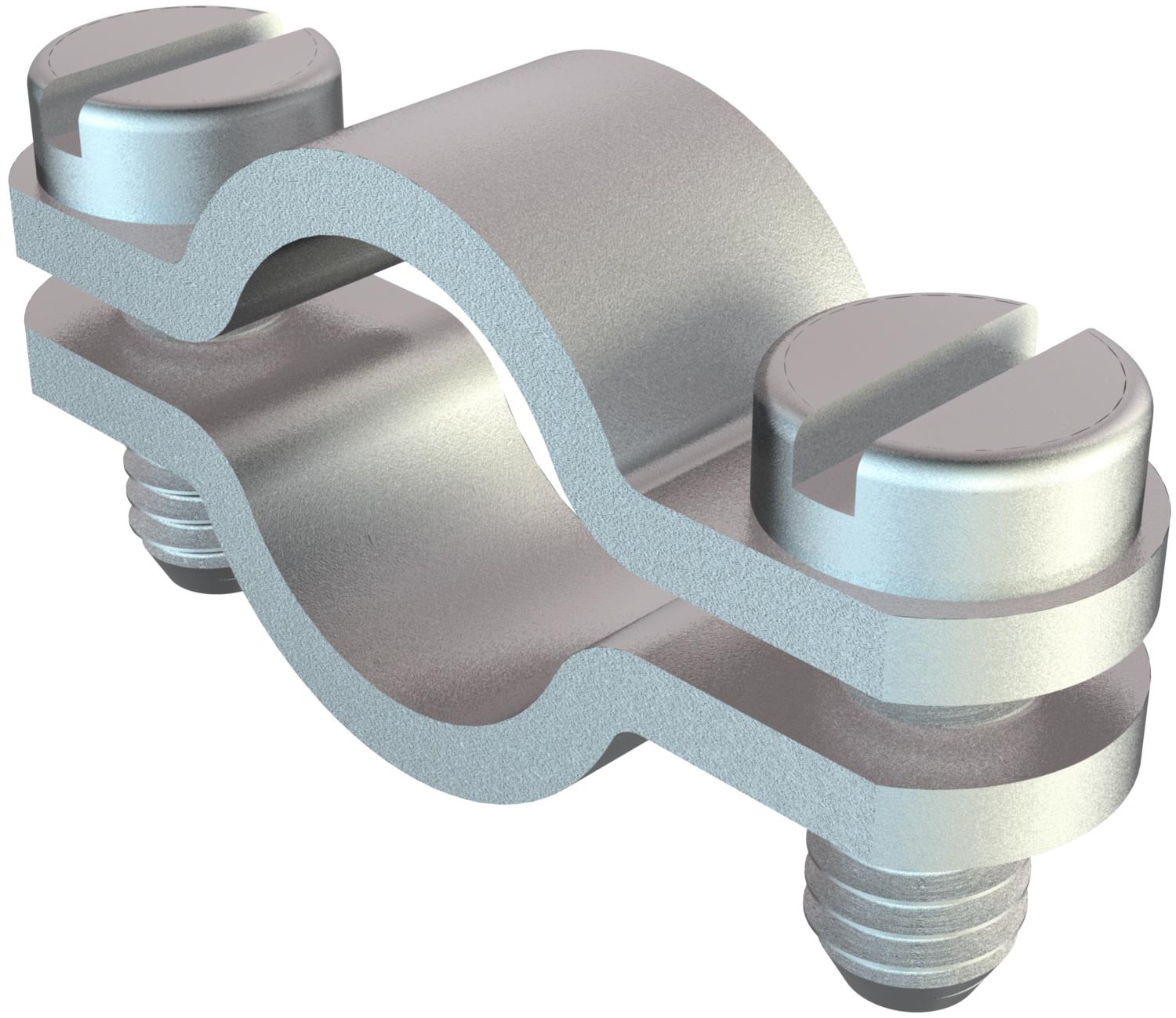

Product descriptionFastening clip for strain relief of cables
-
- Technical data
-
Technical data

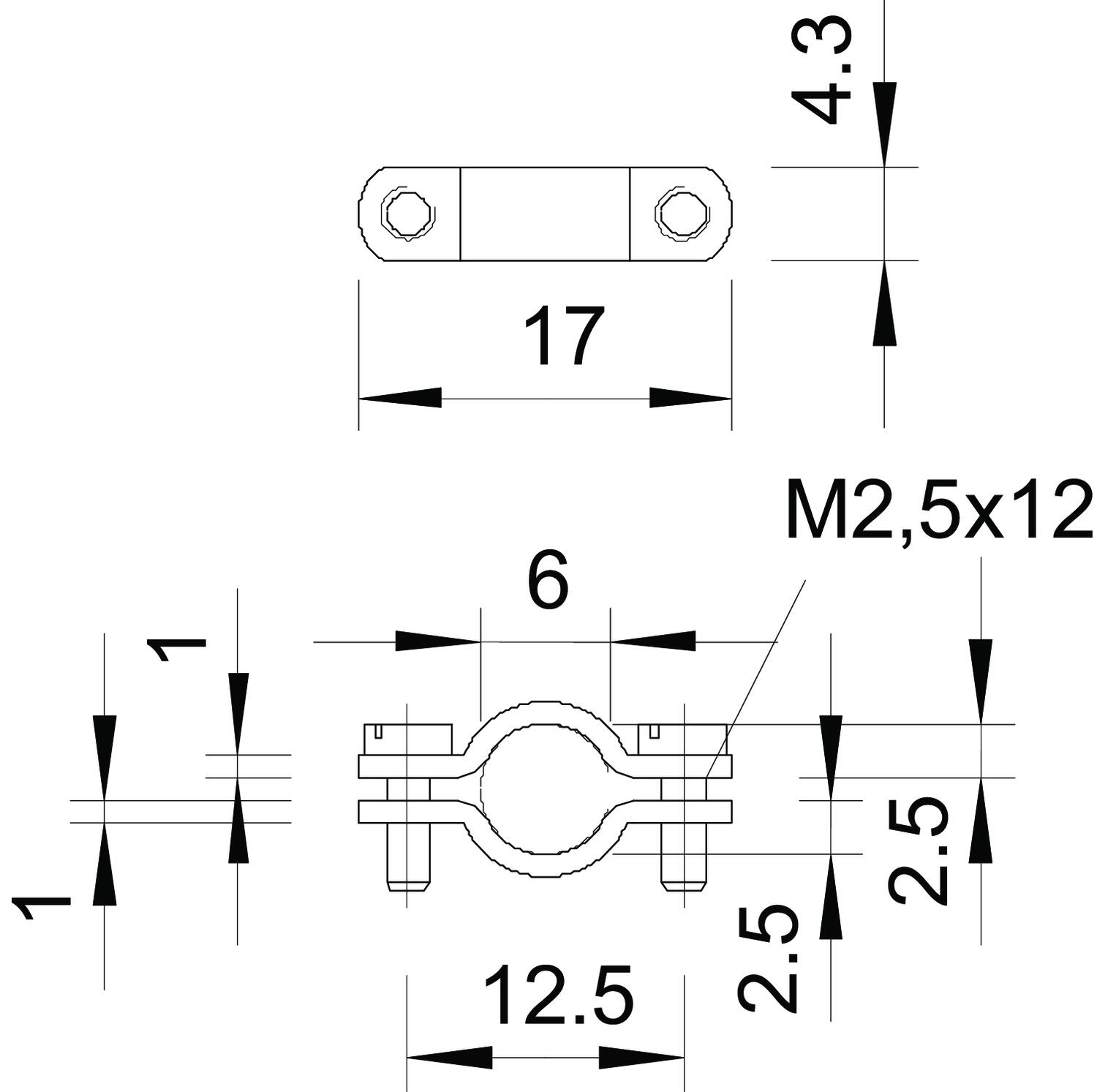

Clamping range D, max. 6 mm Clamping range D, min. 6 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,007 kg CO₂e / 1 Piece Dimension 6mm Distance to the wall no Fastening type Screw hole For diameter 6 Halogen-free yes Material Steel Material thickness 1 mm Nominal diameter 6 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe - All types
- Downloads
-
Data sheet 7909 6 G / 1443011 , 0.21MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 7909 6 G / 1443011 , 0.06MB , pdfREACH Declaration of conformity 7909 6 G / 1443011 , 0.12MB , pdfRoHS Declaration of conformity 7909 6 G / 1443011 , 0.12MB , pdf
