Strain relief clip 7905
Item no. 1439014 | EAN 4012195135319
- Product description
-
Product description
Strain relief clip 5 mm
-
- Technical data
-
Technical data

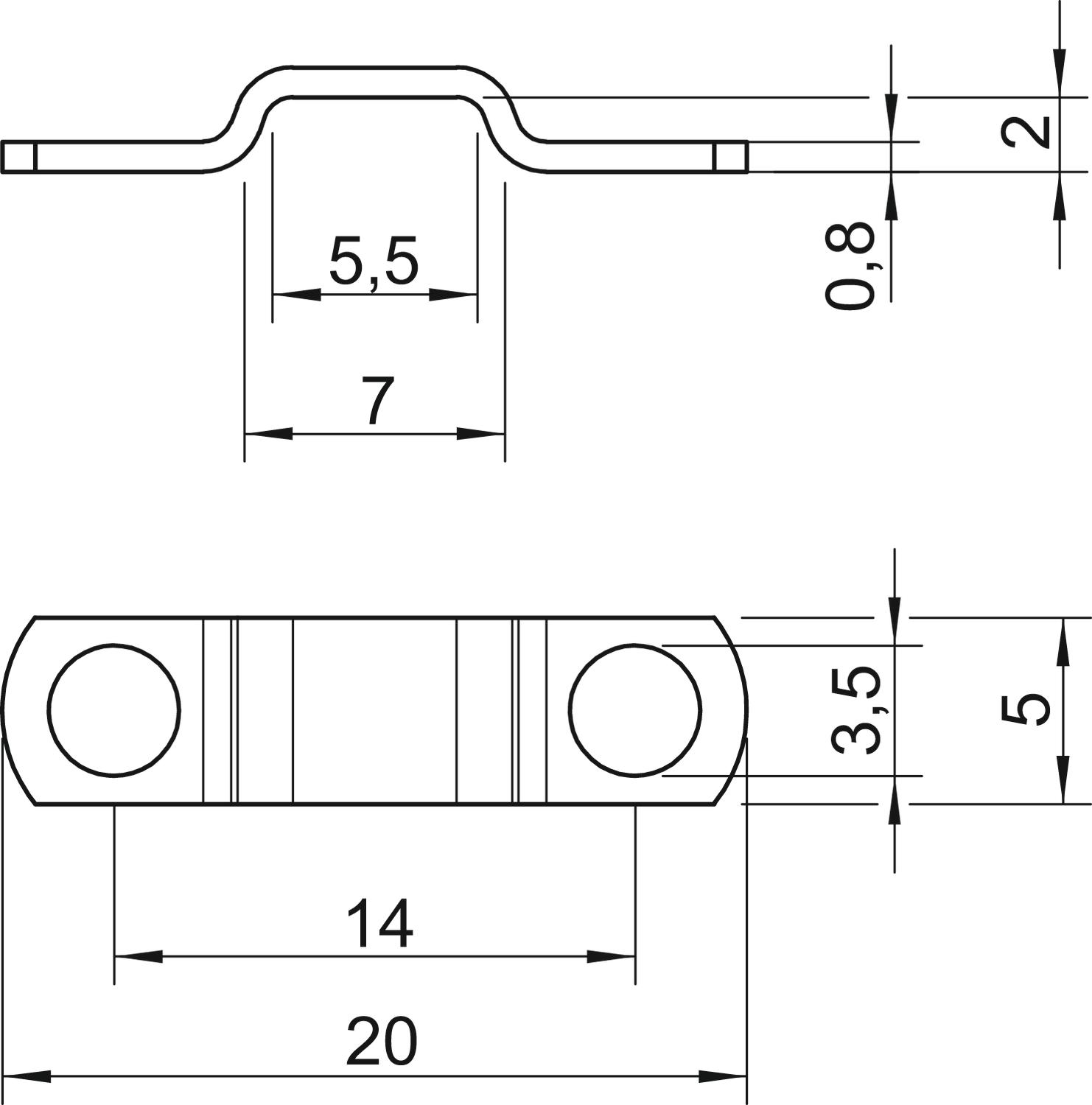

Clamping range D, max. 5 mm Clamping range D, min. 5 mm Dimension 5mm Dimension a 7 mm Dimension a1 (mm) 5,5 mm Dimension b 5 mm Dimension d 3,5 mm Dimension h 2 mm Dimension l 14 mm Dimension L 20 mm Dimension t 0,8 mm Distance to the wall no Fastening type Screw hole For diameter 5 Halogen-free yes Height 2 mm Hole size 3,5 mm Length 20 mm Material Steel Material thickness 0,8 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Width 5 mm - All types
- Downloads
-
Data sheet 7905 5 G / 1439014 , 0.19MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 7905 5 G / 1439014 , 0.06MB , pdfREACH Declaration of conformity 7905 5 G / 1439014 , 0.12MB , pdfRoHS Declaration of conformity 7905 5 G / 1439014 , 0.12MB , pdf
