Strain relief clip 7904
Item no. 1438018 | EAN 4012195135258
- Product description
-

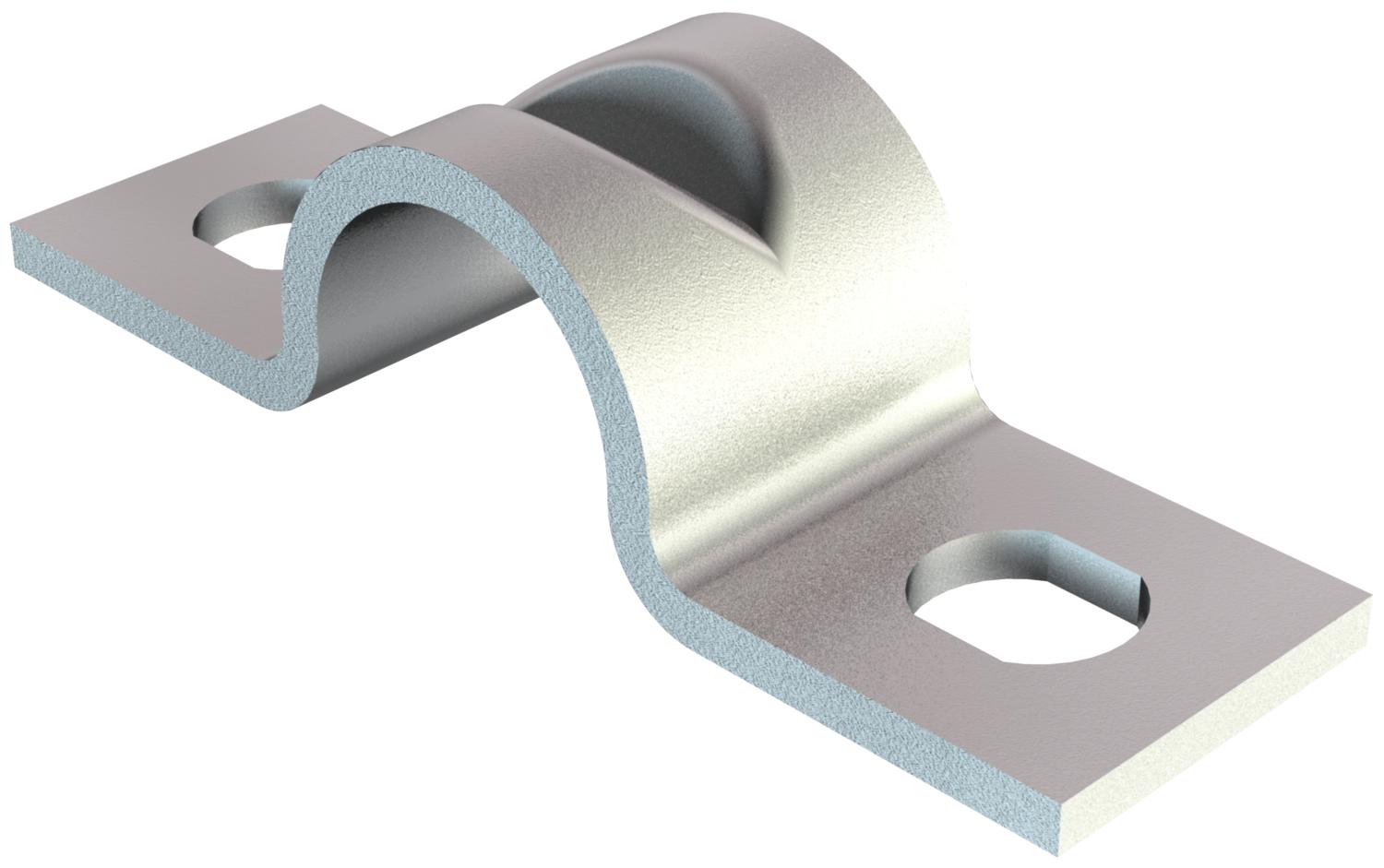

Product descriptionFastening clip for strain relief of cables
-
- Technical data
-
Technical data

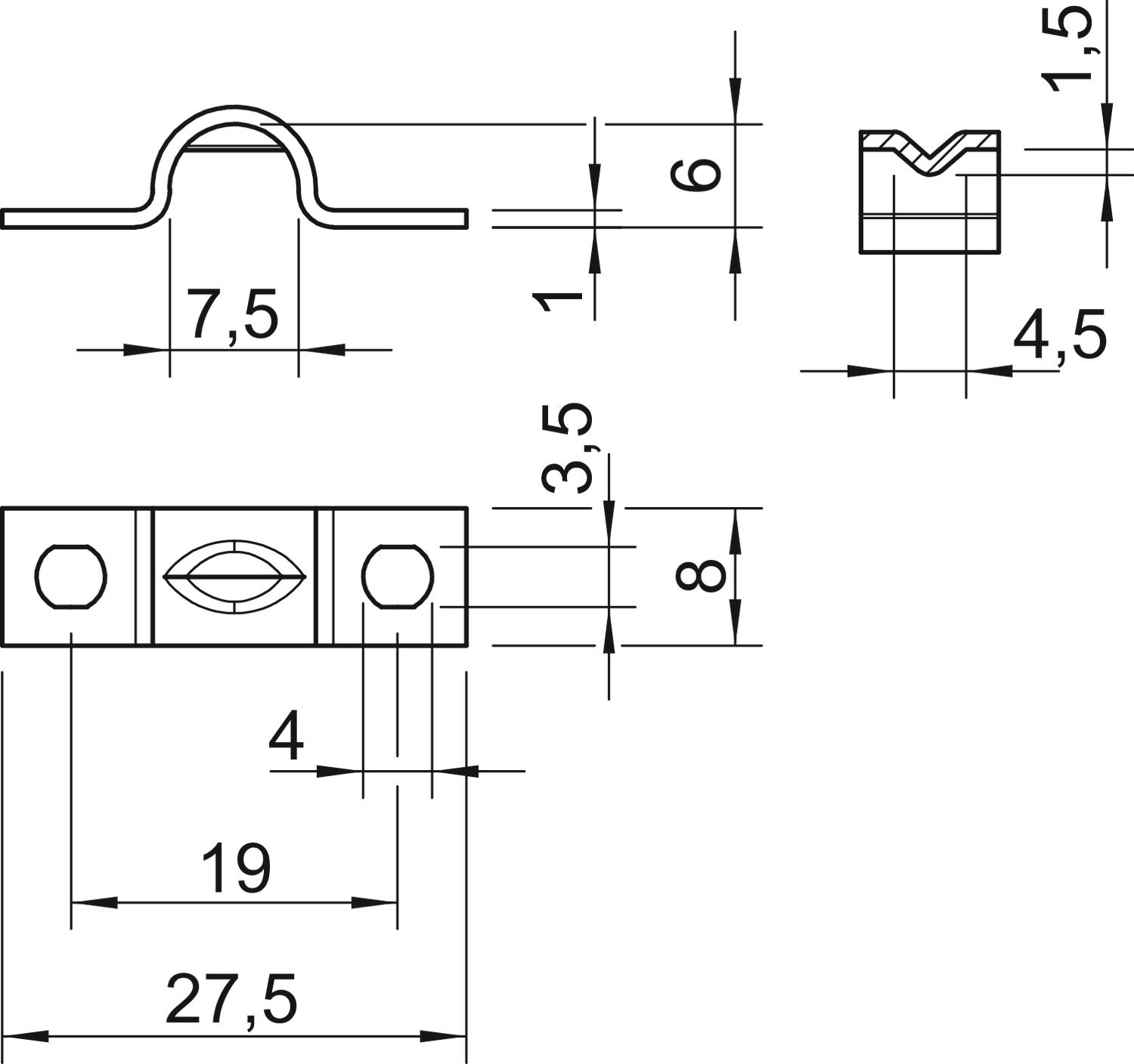

Clamping range D, max. 6 mm Clamping range D, min. 6 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,005 kg CO₂e / 1 Piece Dimension 6mm Dimension a 7,5 mm Dimension b 8 mm Dimension b1 4,5 mm Dimension d 4 mm Dimension f 3,5 mm Dimension h 6 mm Dimension H1 (mm) 1,5 Dimension l 19 mm Dimension L 27,5 mm Dimension t 1 mm Distance to the wall no Fastening type Screw hole For diameter 6 Halogen-free yes Height 6 mm Hole size 3,5x4 mm Length 27,5 mm Material Steel Material thickness 1 mm Nominal diameter 6 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Width 8 mm - All types
