Strain relief clip 7903
Item no. 1437038 | EAN 4012195135197
- Product description
-
Product descriptionFastening clip for strain relief of cables
-
- Technical data
-
Technical data

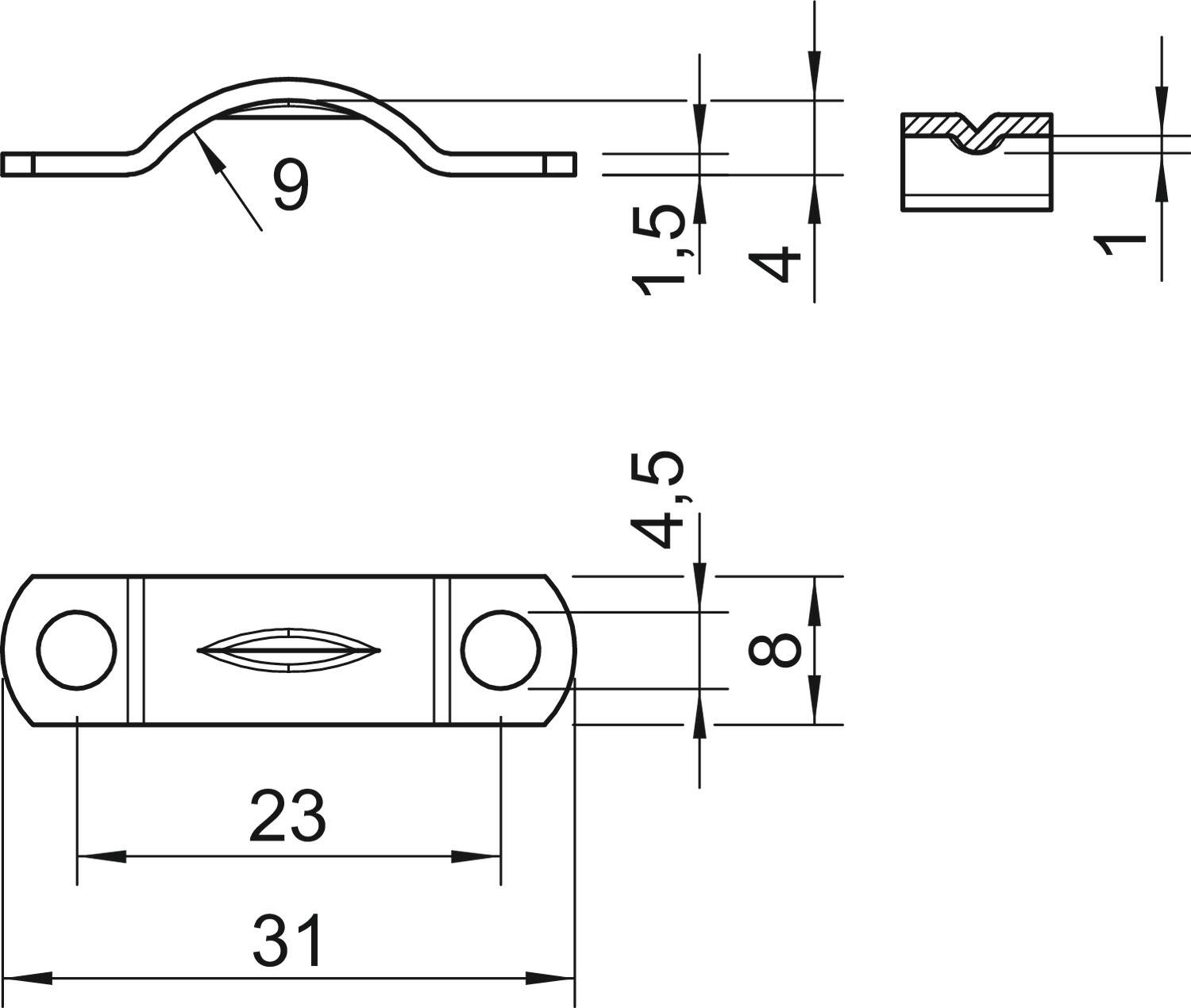

Clamping range D, max. 9 mm Clamping range D, min. 9 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,01 kg CO₂e / 1 Piece Dimension 9mm Dimension b 8 mm Dimension d 4,5 mm Dimension h 4 mm Dimension H1 (mm) 1 Dimension L 31 mm Dimension l 23 mm Dimension R 9 mm Dimension t 1,5 mm Distance to the wall no Fastening type Screw hole For diameter 9 Halogen-free yes Height 4 mm Hole size 4,5 mm Length 31 mm Material Steel Material thickness 1 mm Nominal diameter 9 mm Number of cables/pipes 1 Plastic-covered no Size III Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Width 8 mm - All types
- Downloads
-
Data sheet 7903 9 G / 1437038 , 0.19MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 7903 9 G / 1437038 , 0.06MB , pdfREACH Declaration of conformity 7903 9 G / 1437038 , 0.12MB , pdfRoHS Declaration of conformity 7903 9 G / 1437038 , 0.12MB , pdf
