Strain relief clip 7903
Item no. 1437011 | EAN 4012195135135
- Product description
-
Product description
Fastening clip for strain relief of cables
-
- Technical data
-
Technical data
Clamping range D, max. 8 mm Clamping range D, min. 8 mm Dimension 8mm Distance to the wall no Fastening type Screw hole For diameter 8 Halogen-free yes Hole size 3,6 mm Material Steel Material thickness 0,8 mm Nominal diameter 8 mm Number of cables/pipes 1 Plastic-covered no Size II Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Dimensions

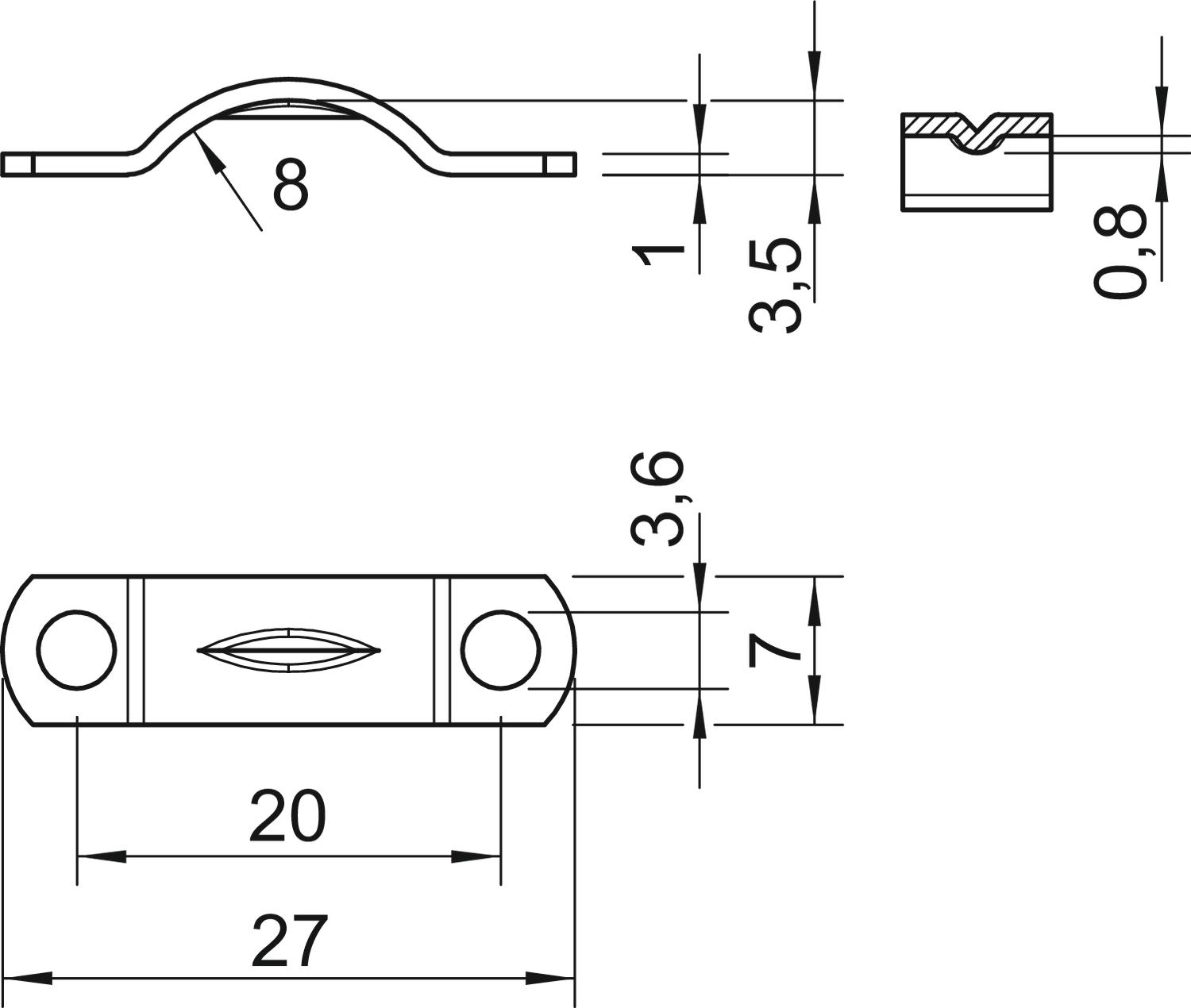

Dimension b 7 mm Dimension d 3,6 mm Dimension h 3,5 mm Dimension H1 (mm) 0,8 Dimension L 27 mm Dimension l 20 mm Dimension R 8 mm Dimension t 1 mm Height 3,5 mm Length 27 mm Width 7 mm - All types
