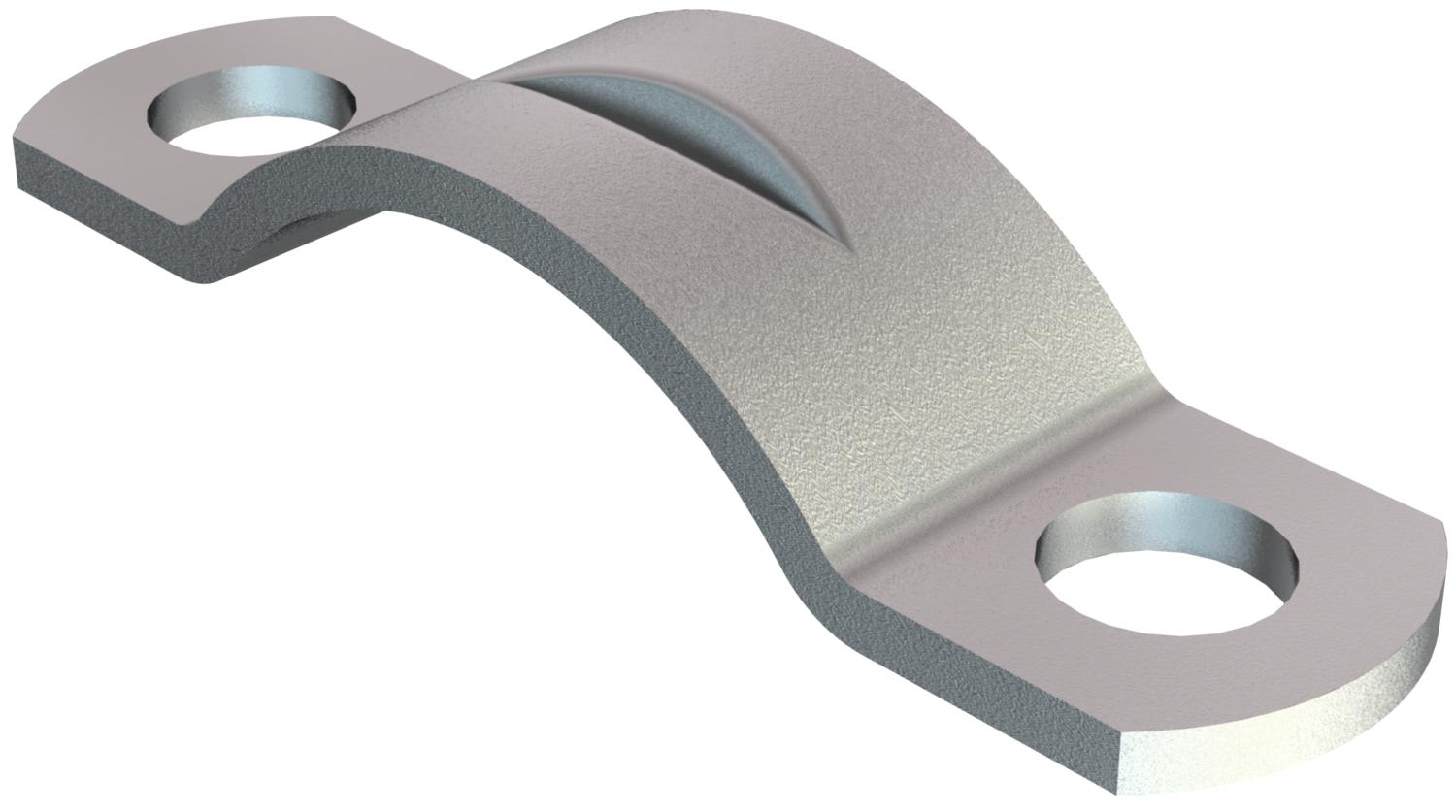

Strain relief clip 7903
Item no. 1437003 | EAN 4012195135074
- Product description
-
Product description
Fastening clip for strain relief of cables
-
- Technical data
-
Technical data
Clamping range D, max. 6 mm Clamping range D, min. 6 mm Dimension 6mm Distance to the wall no Fastening type Screw hole For diameter 6 Halogen-free yes Hole size 2,5 mm Material Steel Material thickness 0,5 mm Nominal diameter 6 mm Number of cables/pipes 1 Plastic-covered no Size I Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Dimensions

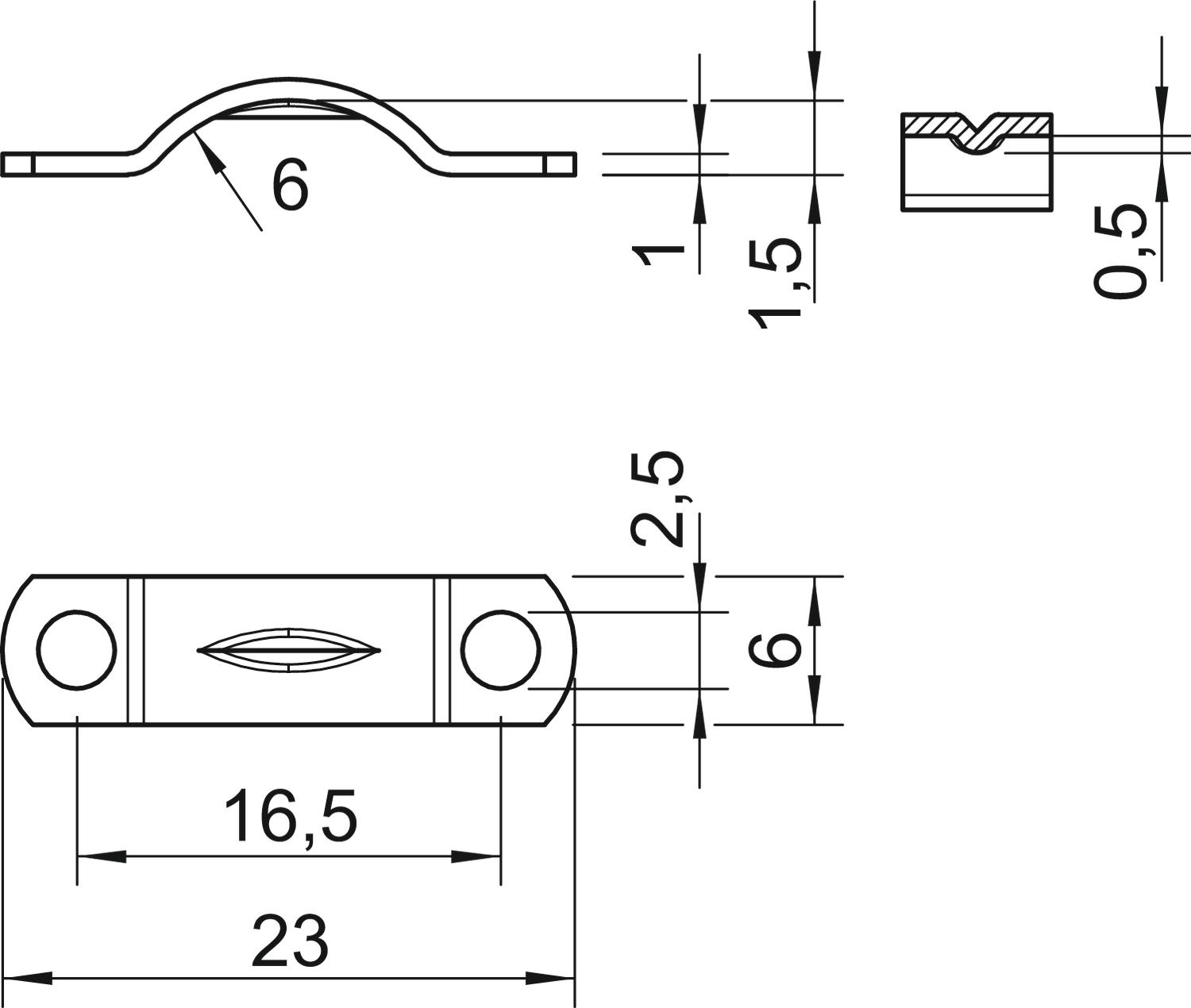

Dimension b 6 mm Dimension d 2,5 mm Dimension h 1,5 mm Dimension H1 (mm) 0,5 Dimension l 16,5 mm Dimension L 23 mm Dimension R 6 mm Dimension t 1 mm Height 1,5 mm Length 23 mm Width 6 mm - All types
