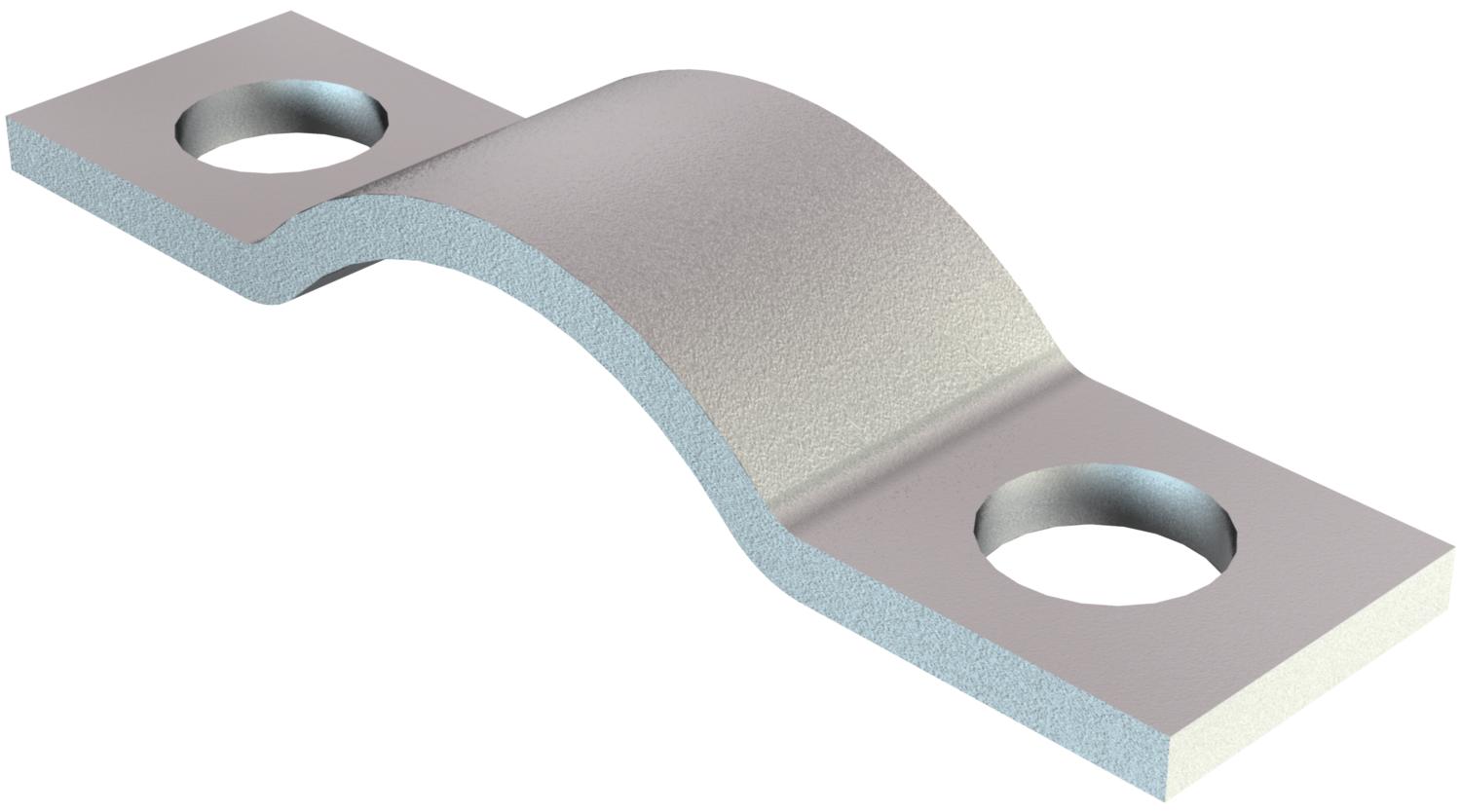

Strain relief clip 7902
Item no. 1436015 | EAN 4012195134954
- Product description
-
Product descriptionFastening clip for strain relief of cables
-
- Technical data
-
Technical data

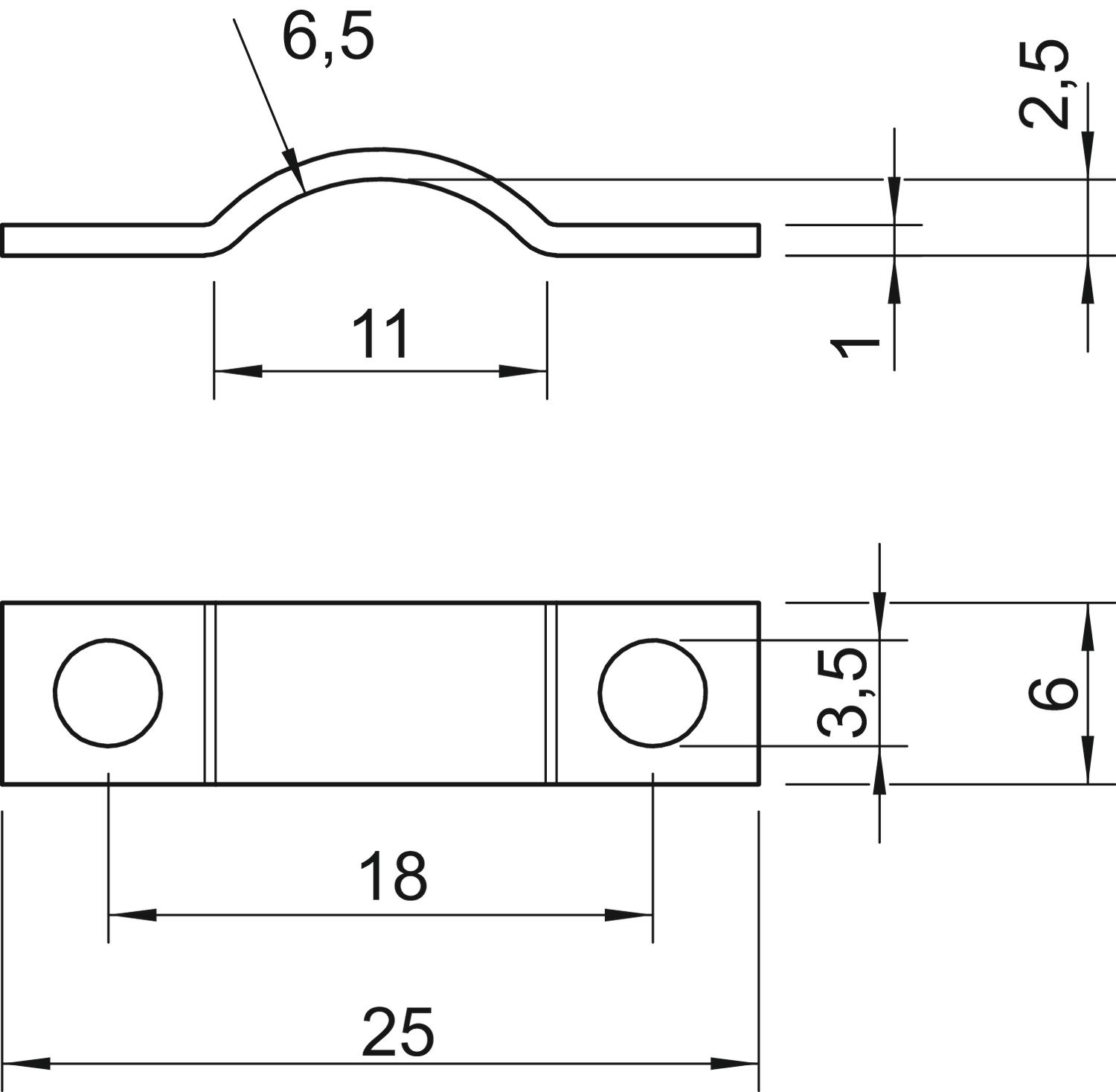

Clamping range D, max. 6,5 mm Clamping range D, min. 6,5 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,003 kg CO₂e / 1 Piece Dimension 6,5mm Dimension a 11 mm Dimension b 6 mm Dimension d 3,5 mm Dimension h 2,5 mm Dimension L 25 mm Dimension l 18 mm Dimension R 6,5 mm Dimension t 1 mm Distance to the wall no Fastening type Screw hole For diameter 6,5 Halogen-free yes Height 2,5 mm Hole size 3,5 mm Length 25 mm Material Steel Material thickness 1 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no Surface Electrogalvanized UV-resistant yes Version for Two-lobe Width 6 mm - All types
- Downloads
-
Data sheet 7902 6 G / 1436015 , 0.17MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 7902 6 G / 1436015 , 0.06MB , pdfREACH Declaration of conformity 7902 6 G / 1436015 , 0.12MB , pdfRoHS Declaration of conformity 7902 6 G / 1436015 , 0.12MB , pdf
