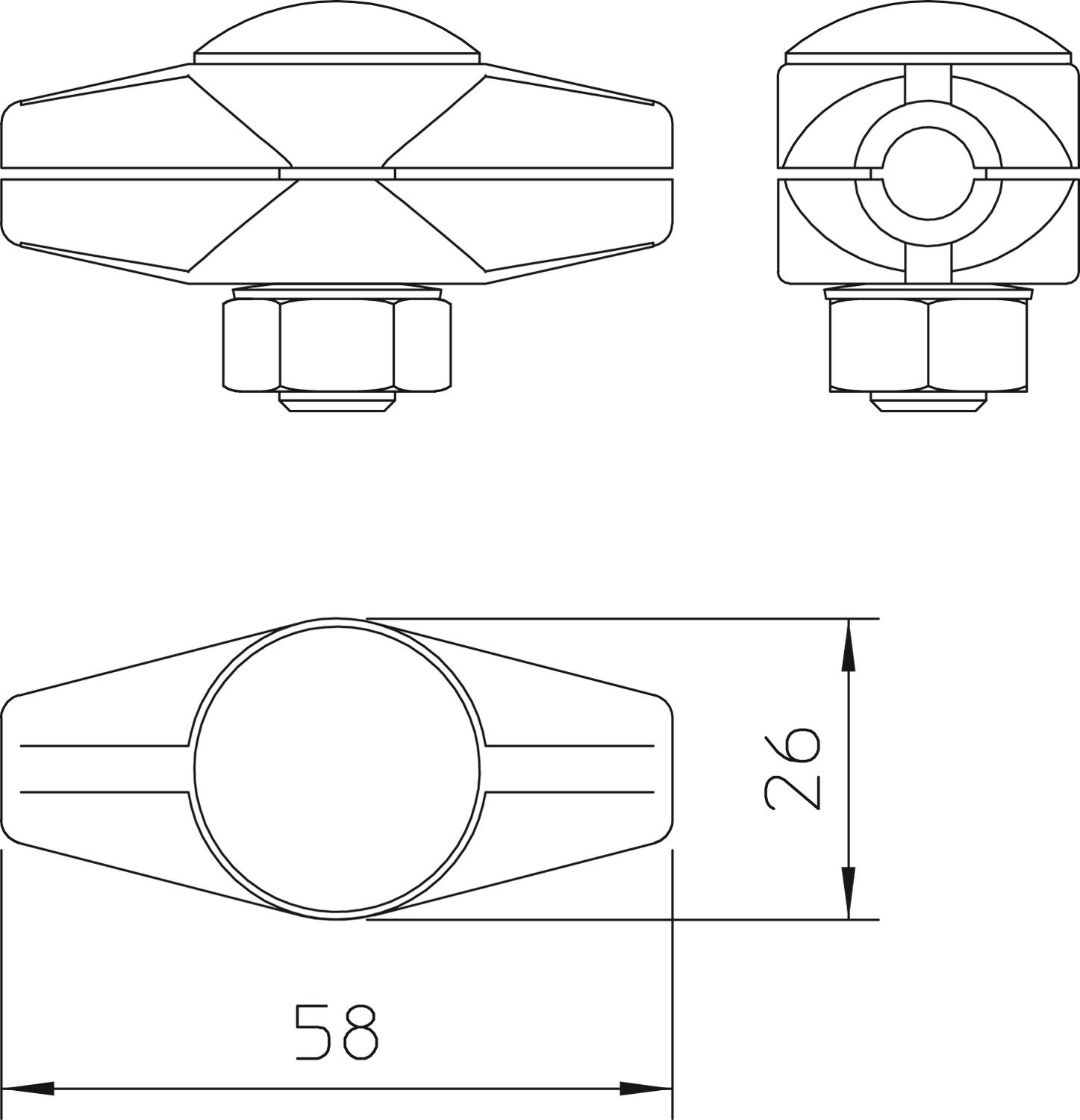

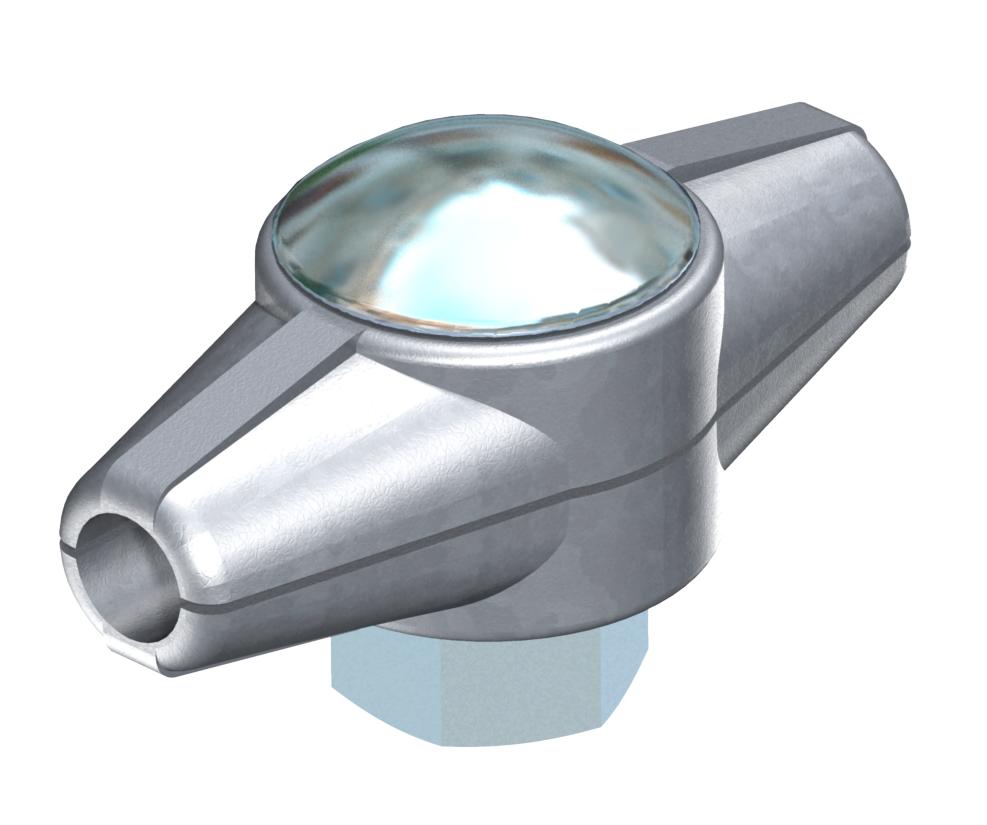

Straight connector Rd 8 mm
Item no. 5329078 | EAN 4012195423195
- Product description
-
Product description• With truss-head bolt M10 x 30 and hexagonal nut M10
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
-
- Technical data
-
Technical data
Dimension 8mm Fit Rd 8 mm Flat conductor width, conductor 1, max. 8 mm Flat conductor width, conductor 1, min. 8 mm Intermediate plate no Lightning current carrying capacity N/50 kA Material Die-cast zinc Round conductor diameter, conductor 1, max. 8 mm Round conductor diameter, conductor 1, min. 8 mm Suitable for connection Round conductor Rd 8 / Rd 8 Surface Electrogalvanized Type of connector Connectors Type of fastening screw Gutter bolt - All types
- Downloads
-
Data sheet 239 / 5329078 , 0.18MB , pdfEU declaration of conformity 239 / 5329078 , 0.06MB , pdf
