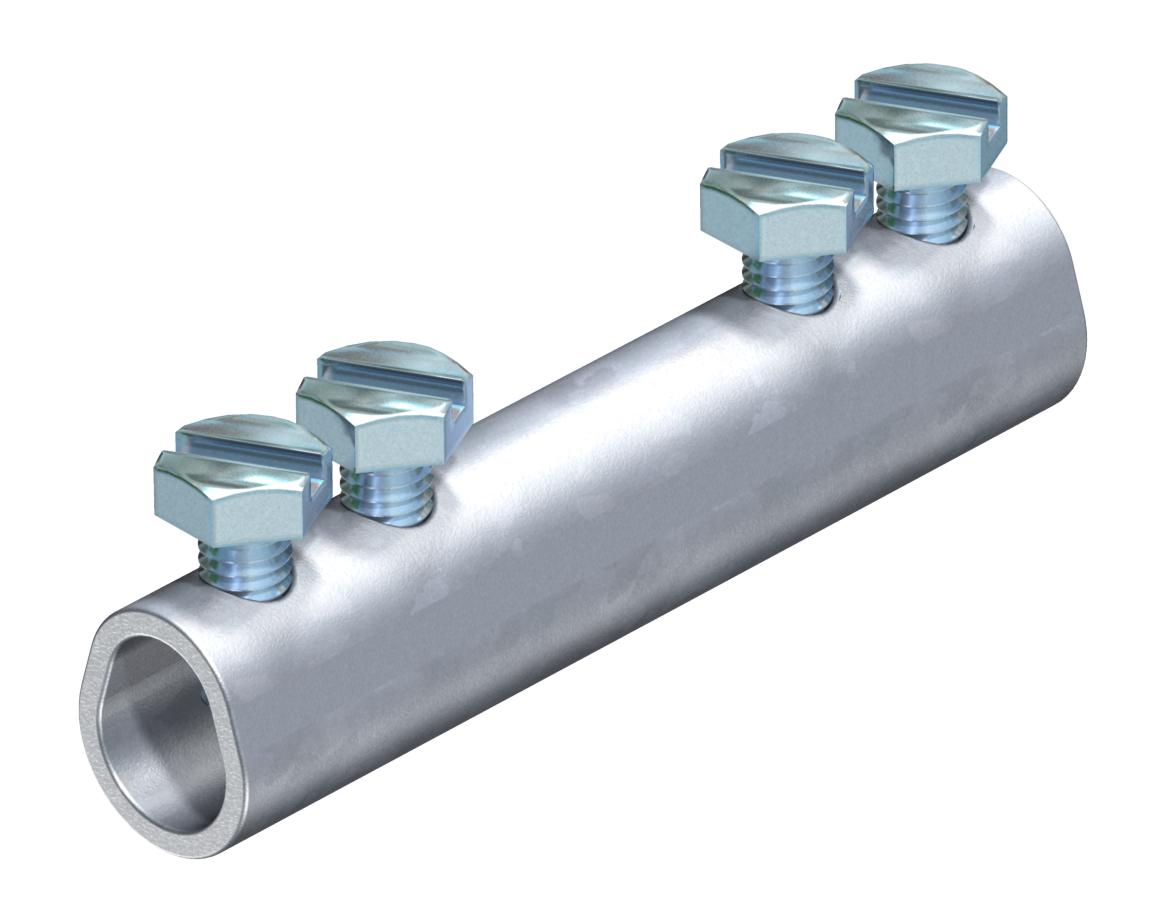

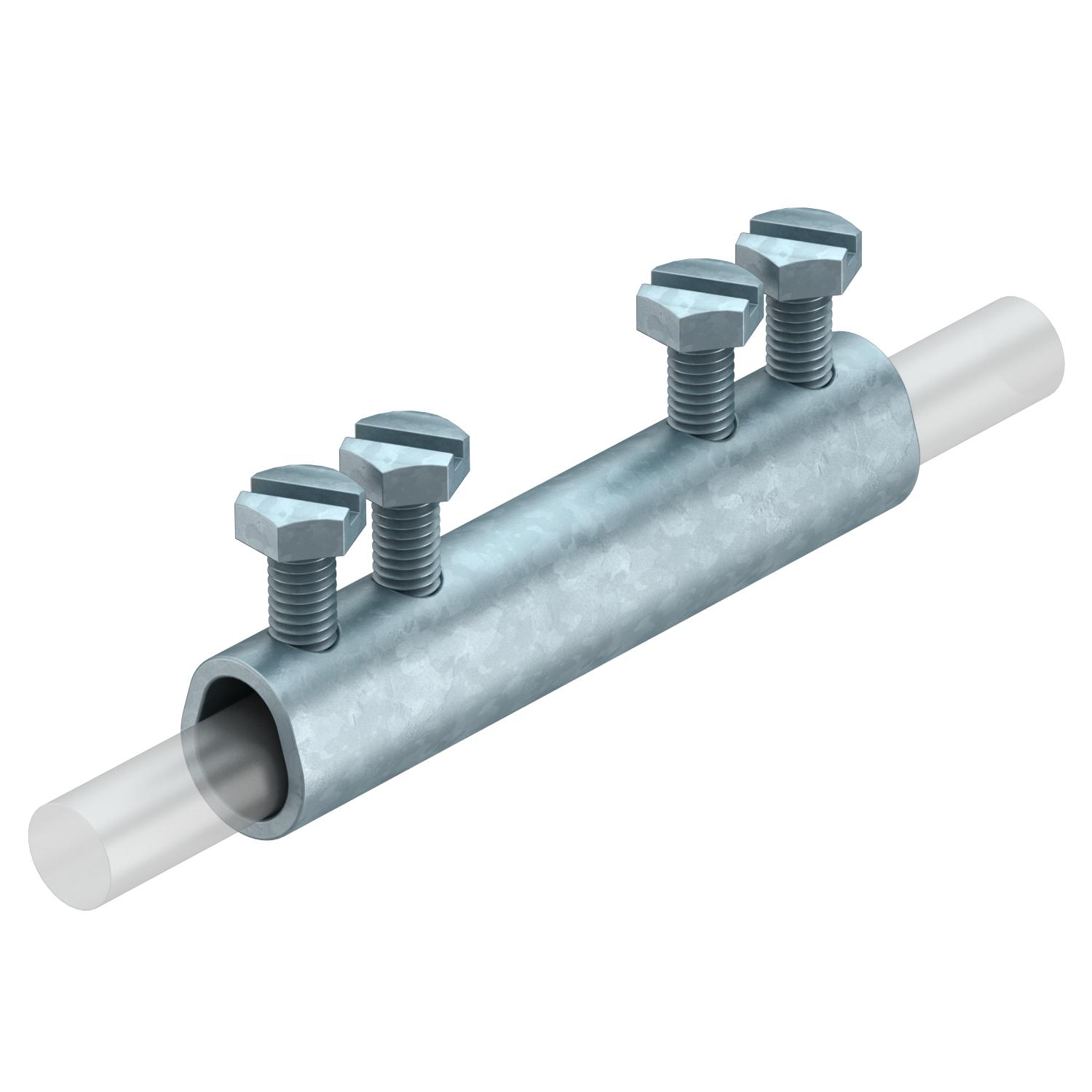

Straight connector Rd 8−10 mm
Item no. 5328209 | EAN 4012195453611
- Product description
-
Product description
• With 4 hexagonal bolts M6 x 10
• Complies with the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
-
- Technical data
-
Technical data

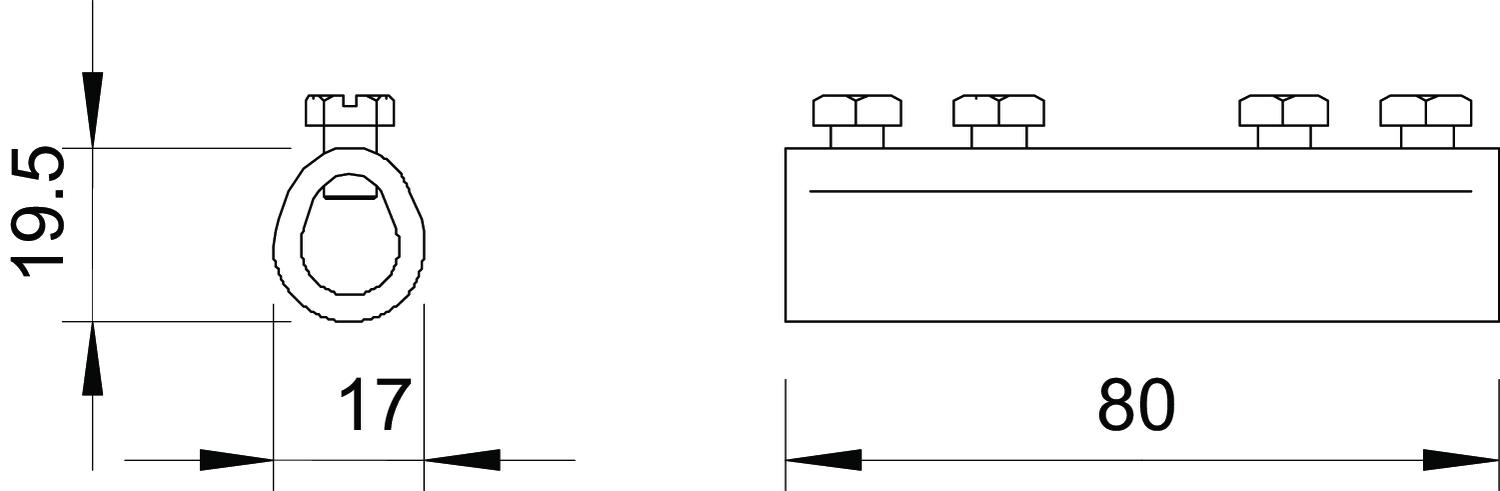

Dimension 8-10mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Steel Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 8 mm Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Surface Hot galvanized Type of connector Connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 237 N FT / 5328209 , 0.16MB , pdfDeclaration of conformity 237 N FT / 5328209 , 0.06MB , pdfREACH Declaration of conformity 237 N FT / 5328209 , 0.27MB , pdfRoHS Declaration of conformity 237 N FT / 5328209 , 0.12MB , pdfMounting instructions Mounting instructions, 237 N FT; 237 N CU , 0.09MB , pdf
