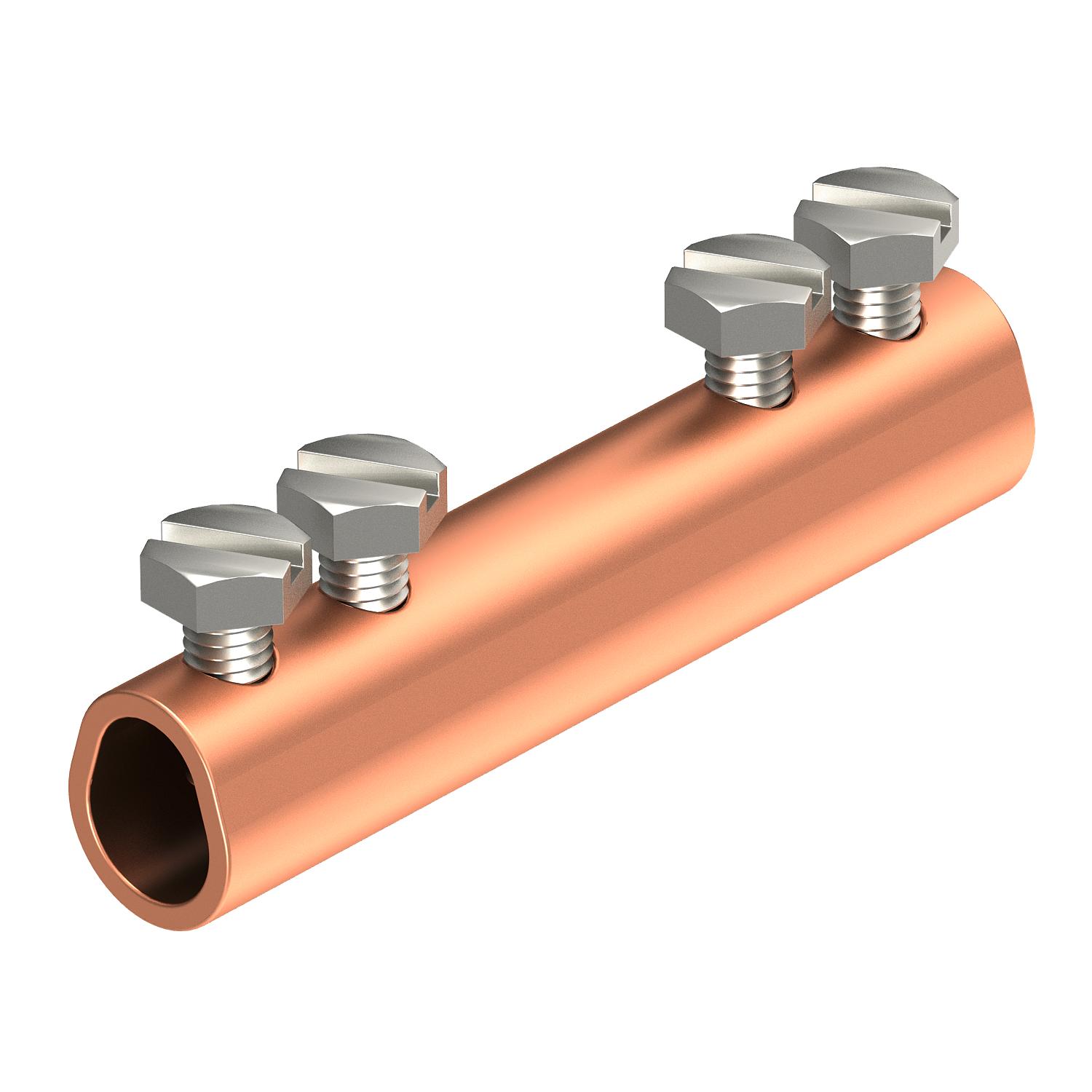

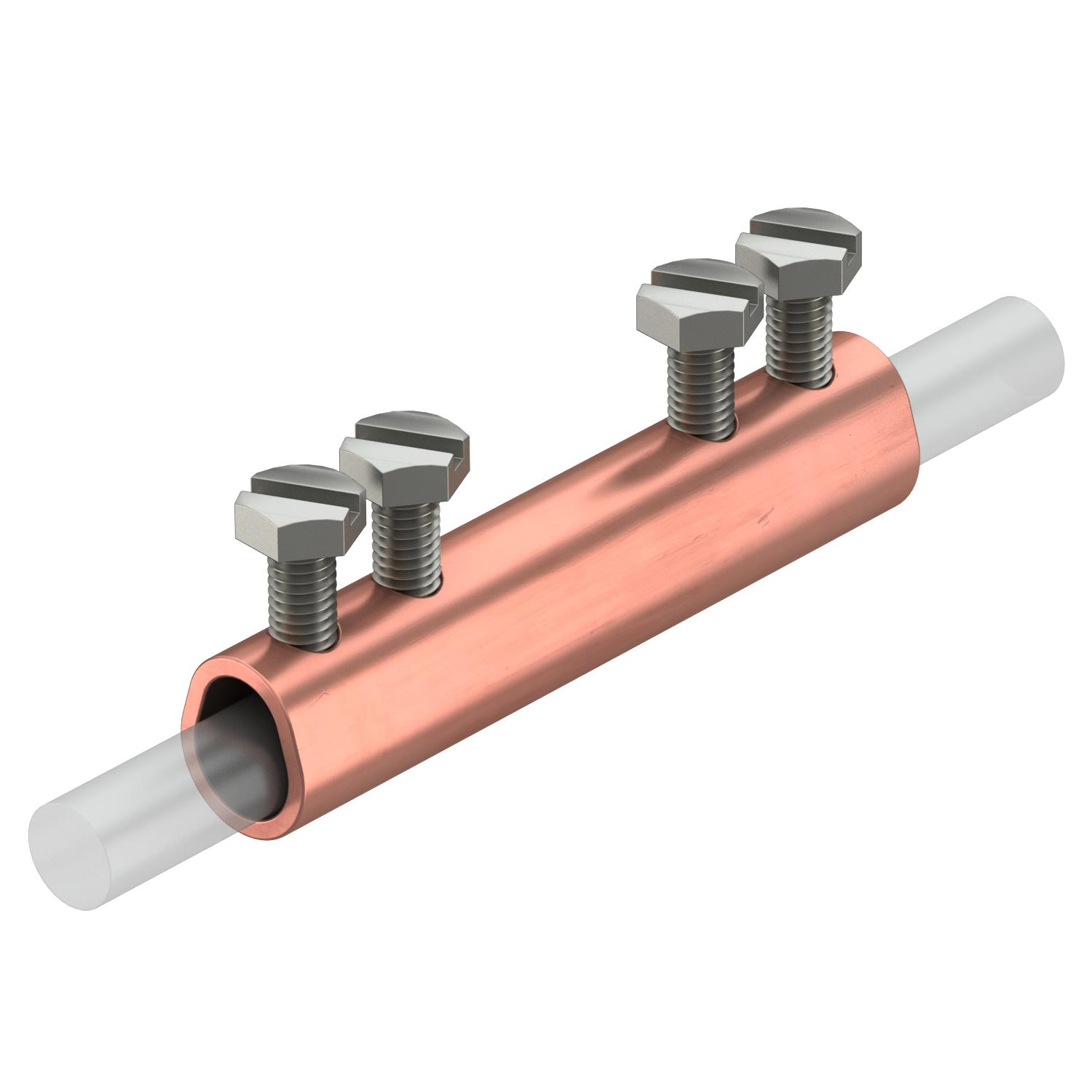

Straight connector Rd 6−10 mm Cu
Item no. 5328284 | EAN 4012195453673
- Product description
-
Product description
• With 4 hexagonal bolts M6 x 12
• Complies with the requirements of VDE 0185-305-3 (IEC/EN 62305-3)
-
- Technical data
-
Technical data
Clamping range, max. 10 mm Clamping range, min. 6 mm Dimension 6-10mm Fit Rd 6-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Copper Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 6 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 6 mm Suitable for connection Miscellaneous Type of connector Connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 237 N CU / 5328284 , 0.18MB , pdfDeclaration of conformity 237 N CU / 5328284 , 0.06MB , pdfREACH Declaration of conformity 237 N CU / 5328284 , 0.12MB , pdfRoHS Declaration of conformity 237 N CU / 5328284 , 0.12MB , pdfMounting instructions Mounting instructions, 237 N FT; 237 N CU , 0.09MB , pdf
