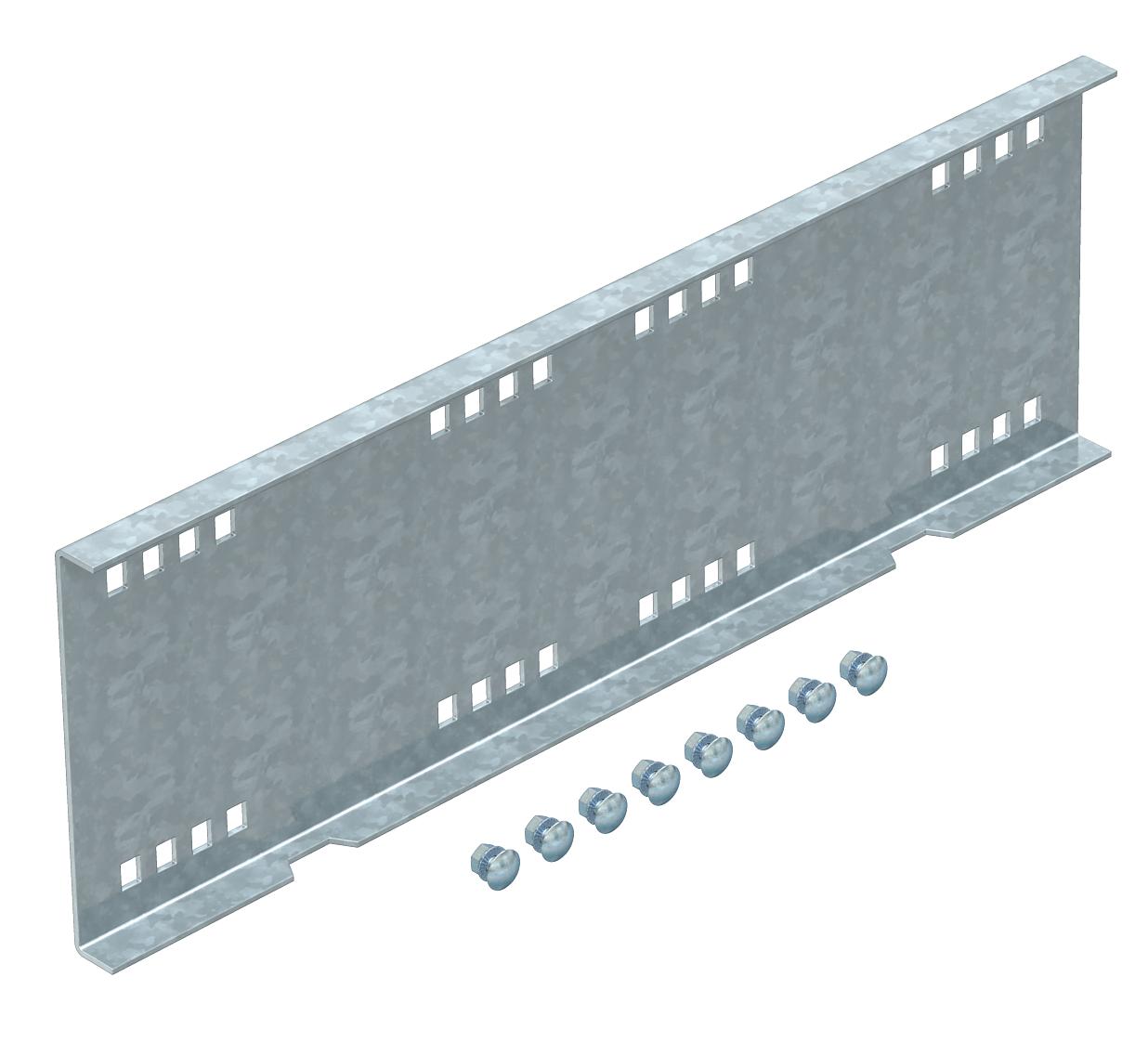

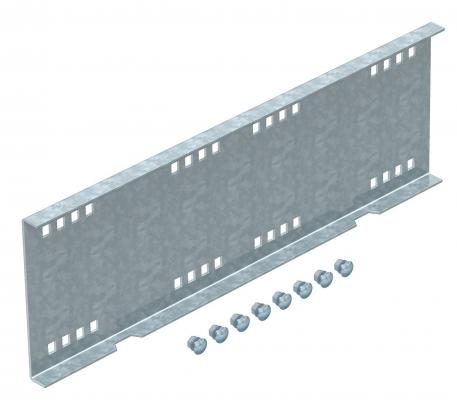

Straight connector FT
Item no. 6227716 | EAN 4012196170531
- Product description
-
Product description
Straight connector for the connection of wide span cable trays and ladders of types WKSG and WKLG with a side height of 160 mm.
-
- Technical data
-
Technical data

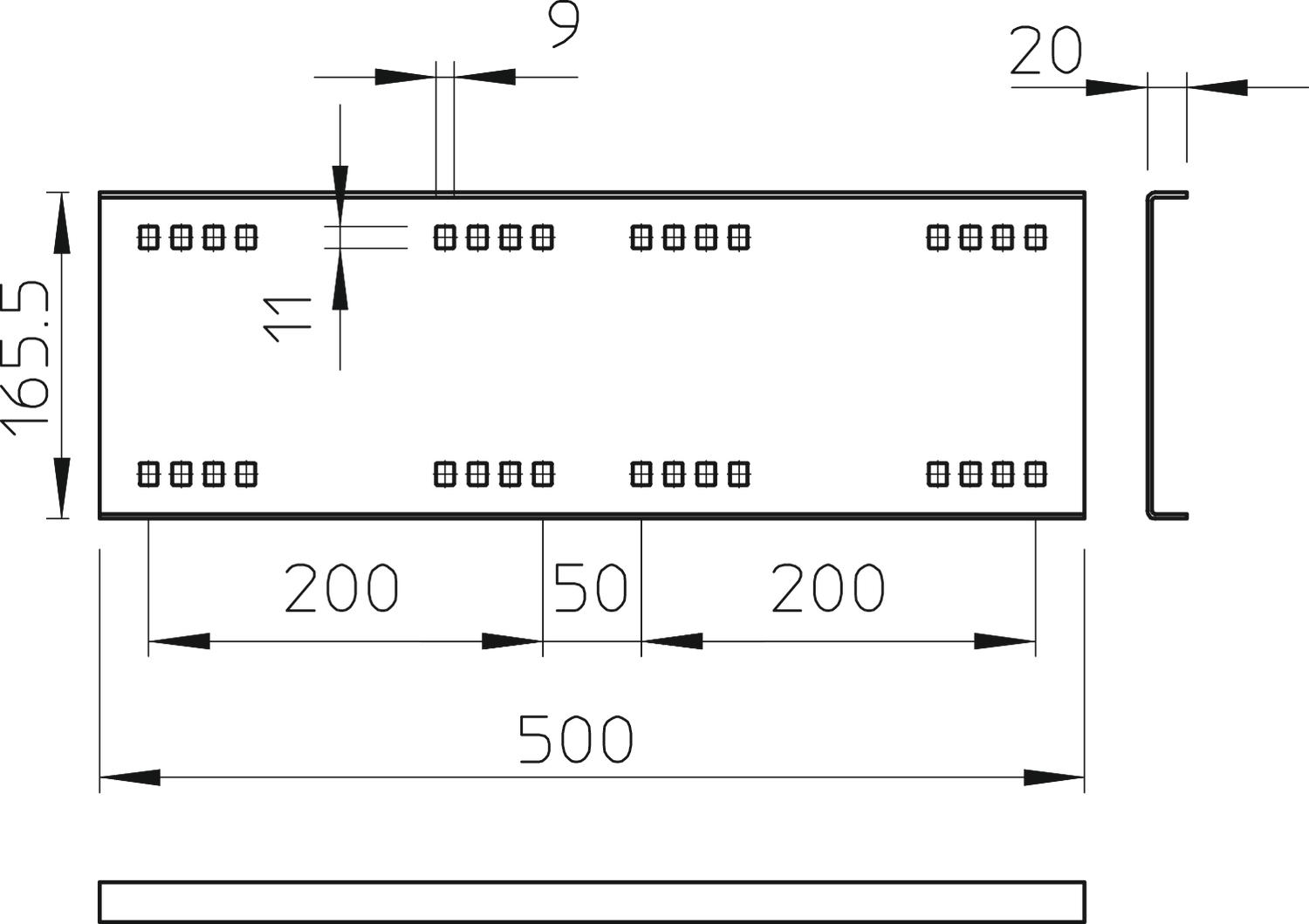

Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 160x500 Height 160 mm Length 500 mm Maintain electrical functions no Material Steel Plate thickness 2,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for cable tray system height 160 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight connector Width 20 mm - All types
- Downloads
-
Data sheet WRVL 160 FT / 6227716 , 0.29MB , pdfDeclaration of conformity WRVL 160 FT / 6227716 , 0.11MB , pdfUK Declaration of Conformity WRVL 160 FT / 6227716 , 0.09MB , pdfREACH Declaration of conformity WRVL 160 FT / 6227716 , 0.12MB , pdfRoHS Declaration of conformity WRVL 160 FT / 6227716 , 0.12MB , pdfMounting instructions Weitspannkabelleitern , 11.33MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
