Straight connector FT
Item no. 6091180 | EAN 4012196299232
- Product description
-
Product description

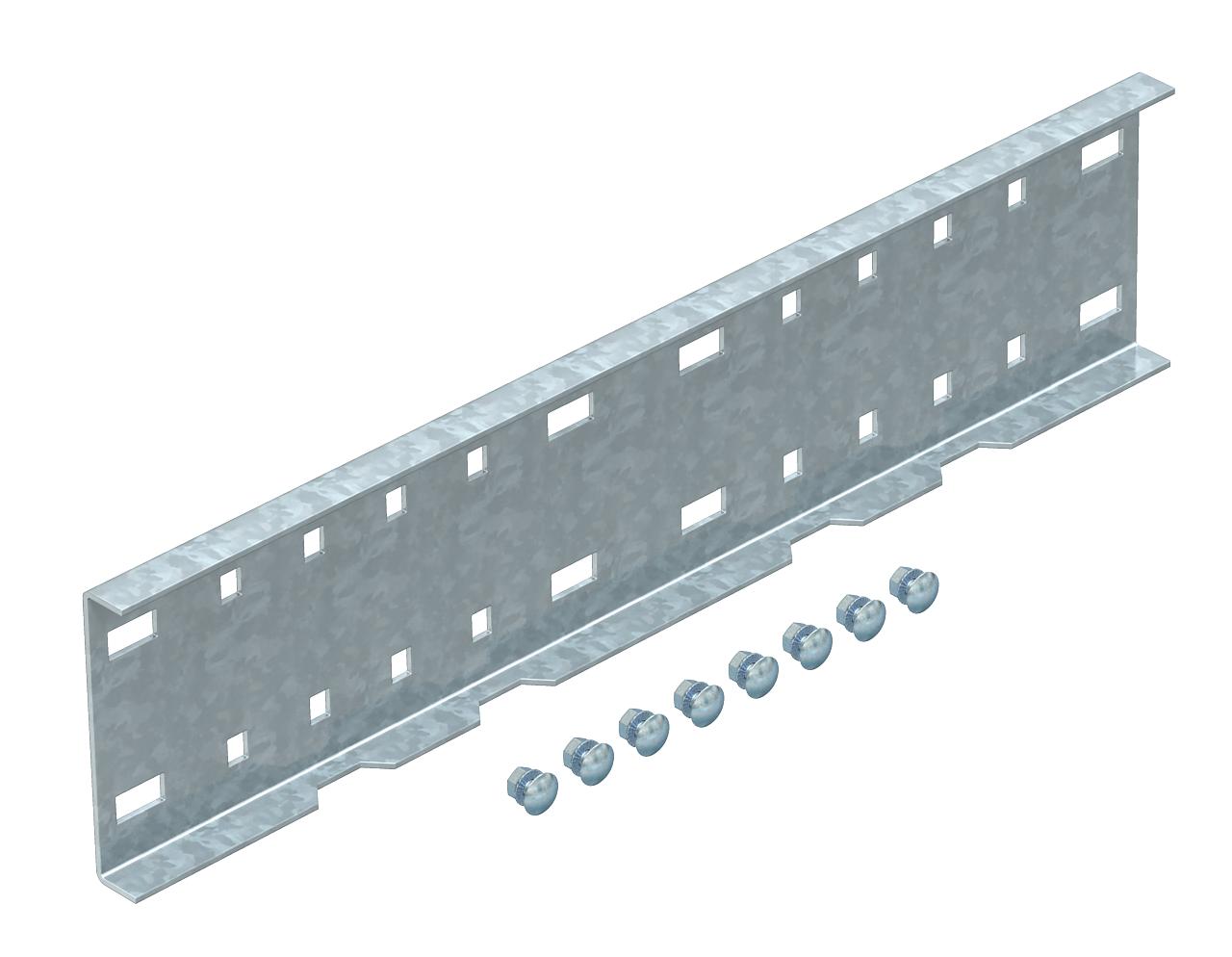

Longitudinal connector for the connection of wide span cable trays and ladders of type WKSG and WKLG with a side height of 110 mm. Including appropriate bolts and combination nuts.
-
- Technical data
-
Technical data

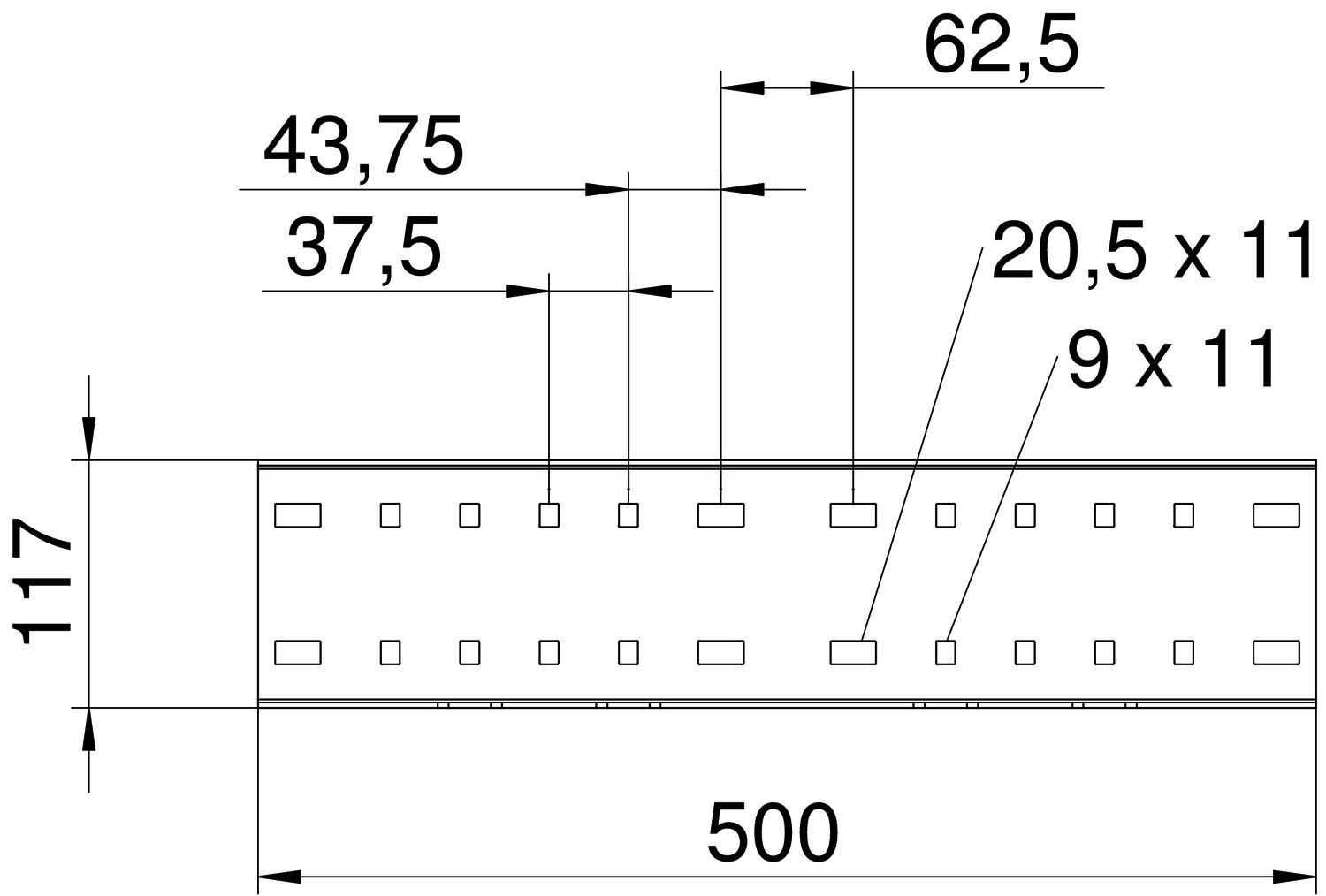

Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 110x500 Height 110 mm Length 500 mm Maintain electrical functions no Material Steel Plate thickness 2,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for cable tray system height 110 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight connector Width 20 mm - All types
- Downloads
-
Data sheet WRVL 110 FT / 6091180 , 0.26MB , pdfDeclaration of conformity WRVL 110 FT / 6091180 , 0.11MB , pdfUK Declaration of Conformity WRVL 110 FT / 6091180 , 0.14MB , pdfREACH Declaration of conformity WRVL 110 FT / 6091180 , 0.12MB , pdfRoHS Declaration of conformity WRVL 110 FT / 6091180 , 0.12MB , pdfMounting instructions Weitspannkabelleitern , 11.33MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
