Note: This article is discontinued.

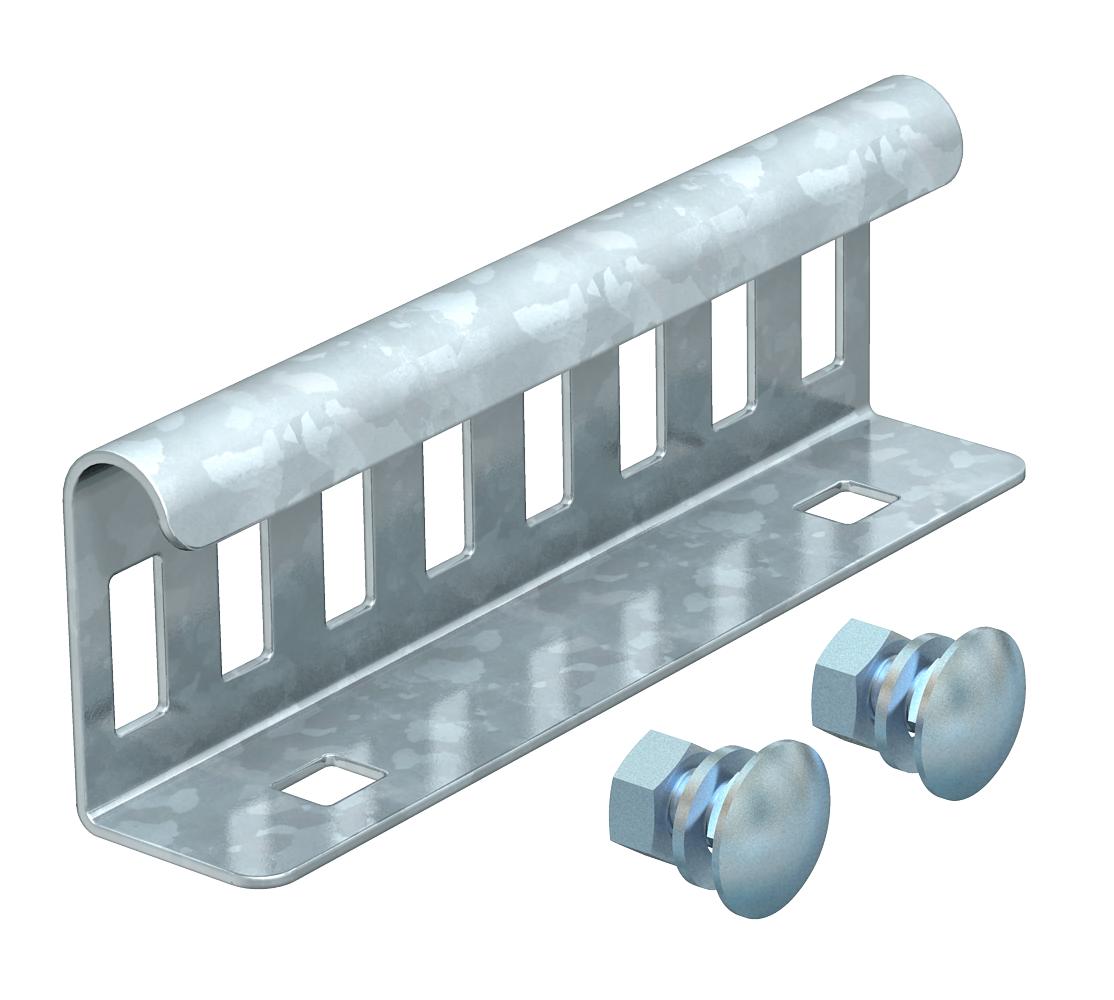

Straight connector FS

Item no. 6200832 | EAN 4012195065197

6200832 / LVG 45 FS
49 mm
1.5 mm
Steel
Strip galvanized
Product description
Product description
Straight connector as external connector to connect cable ladders and fittings with a side height of 45 mm and continuous side perforation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable ladder, side height 45 mm
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical no
Connection type Screw connector

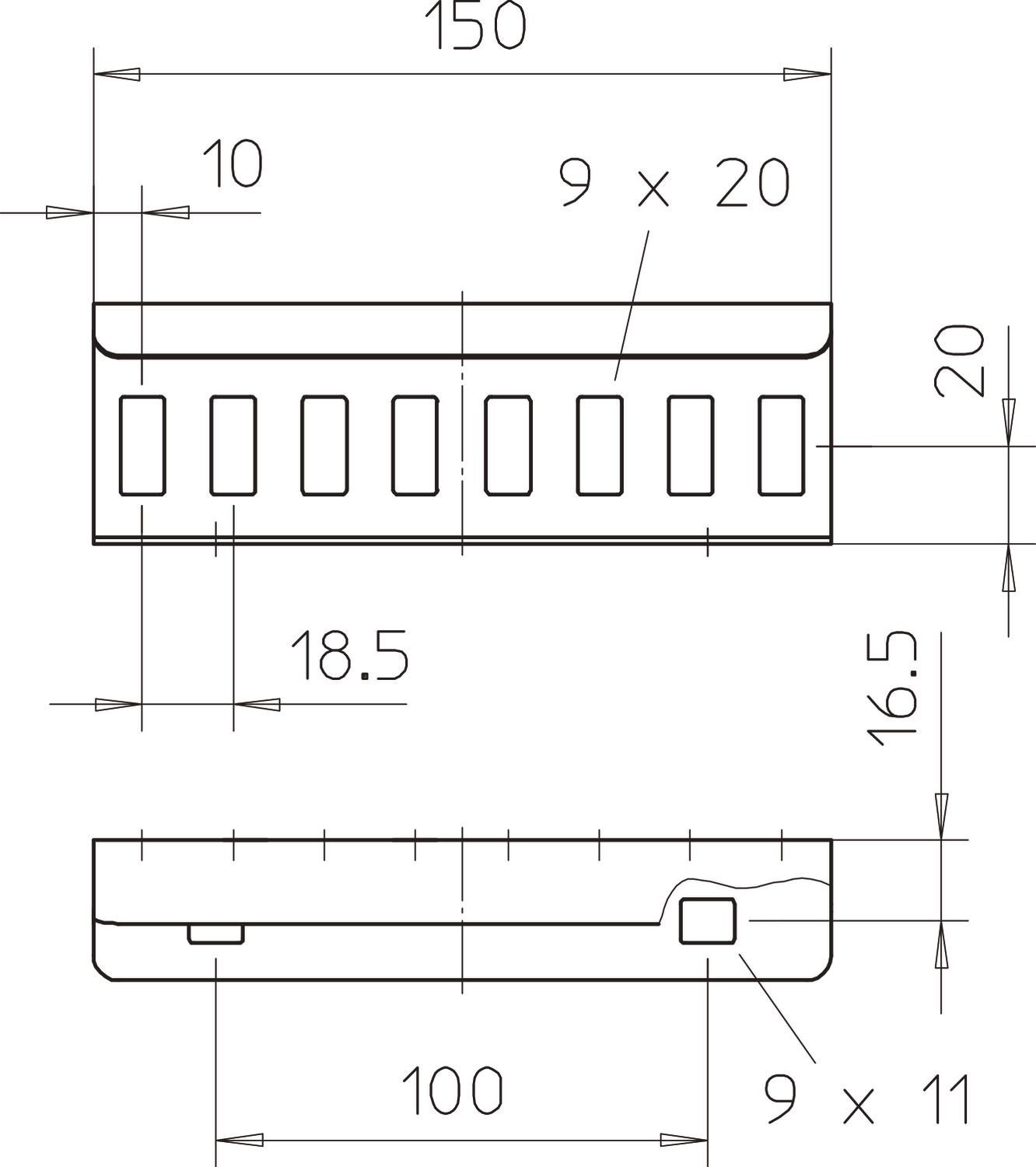

Dimension 49x150
Dimension 49x150
Height 49 mm
Length 150 mm
Maintain electrical functions no
Material Steel
Plate thickness 1,5 mm
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray no
Suitable for cable tray system height 45 mm
Suitable for mesh cable tray no
Surface Strip galvanized
Version for Straight connector
All types

All types

Types Height Plate thickness Material Surface Item no. Quantity SSU
LVG 45 FS 49 mm 1.5 mm Steel Strip galvanized 6200832
10 piece
Downloads

Download

EU declaration of conformity LVG 45 FS / 6200832 , 0.10MB , pdf
Download
REACH Declaration of conformity LVG 45 FS / 6200832 , 0.12MB , pdf

Download
Download

LVG 45 FS / 6200832
Download
