Straight connector FS
Item no. 6216545 | EAN 4012195065678
- Product description
-

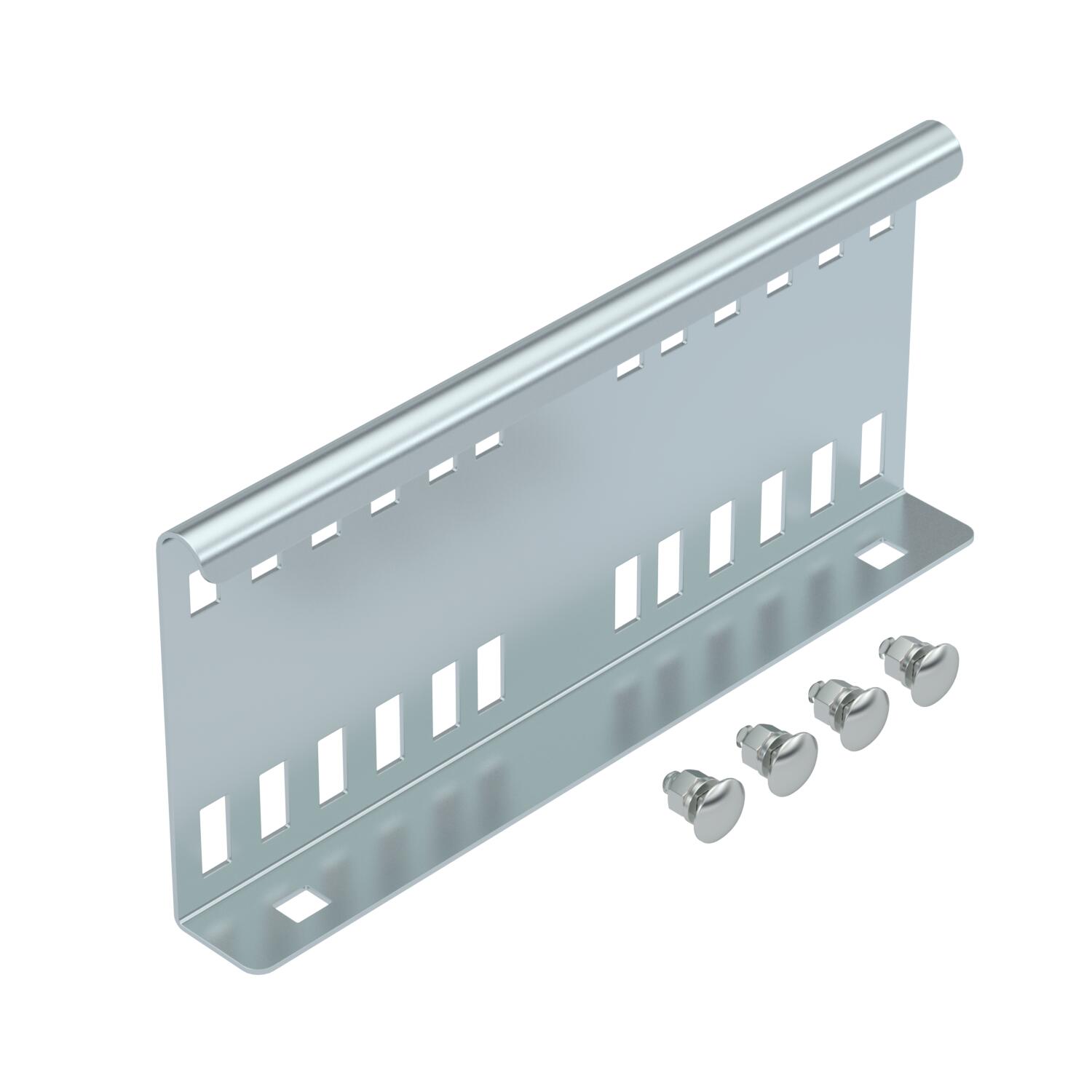

Product descriptionStraight connector as external connector to connect cable ladders and fittings with a side height of 110 mm and continuous rail perforation.
-
- Technical data
-
Technical data

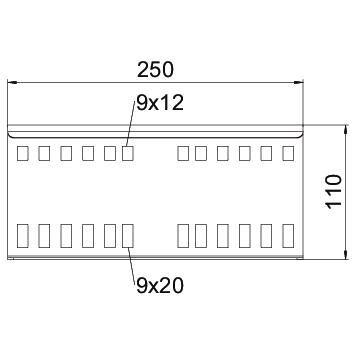

Adjustable connector, horizontal no Articulated connector, vertical no Colour zinc Connection type Screw connector Dimension 114x205 Dimension 114x250 Height 110 mm Length 250 mm Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for cable tray system height 110 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Straight connector Width 28 mm - All types
- Downloads
-
Data sheet LVG 110 FS / 6216545 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LVG 110 FS / 6216545 , 0.10MB , pdfUK Declaration of Conformity LVG 110 FS / 6216545 , 0.09MB , pdfREACH Declaration of conformity LVG 110 FS / 6216545 , 0.12MB , pdfRoHS Declaration of conformity LVG 110 FS / 6216545 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
