- Product description
-
Product description

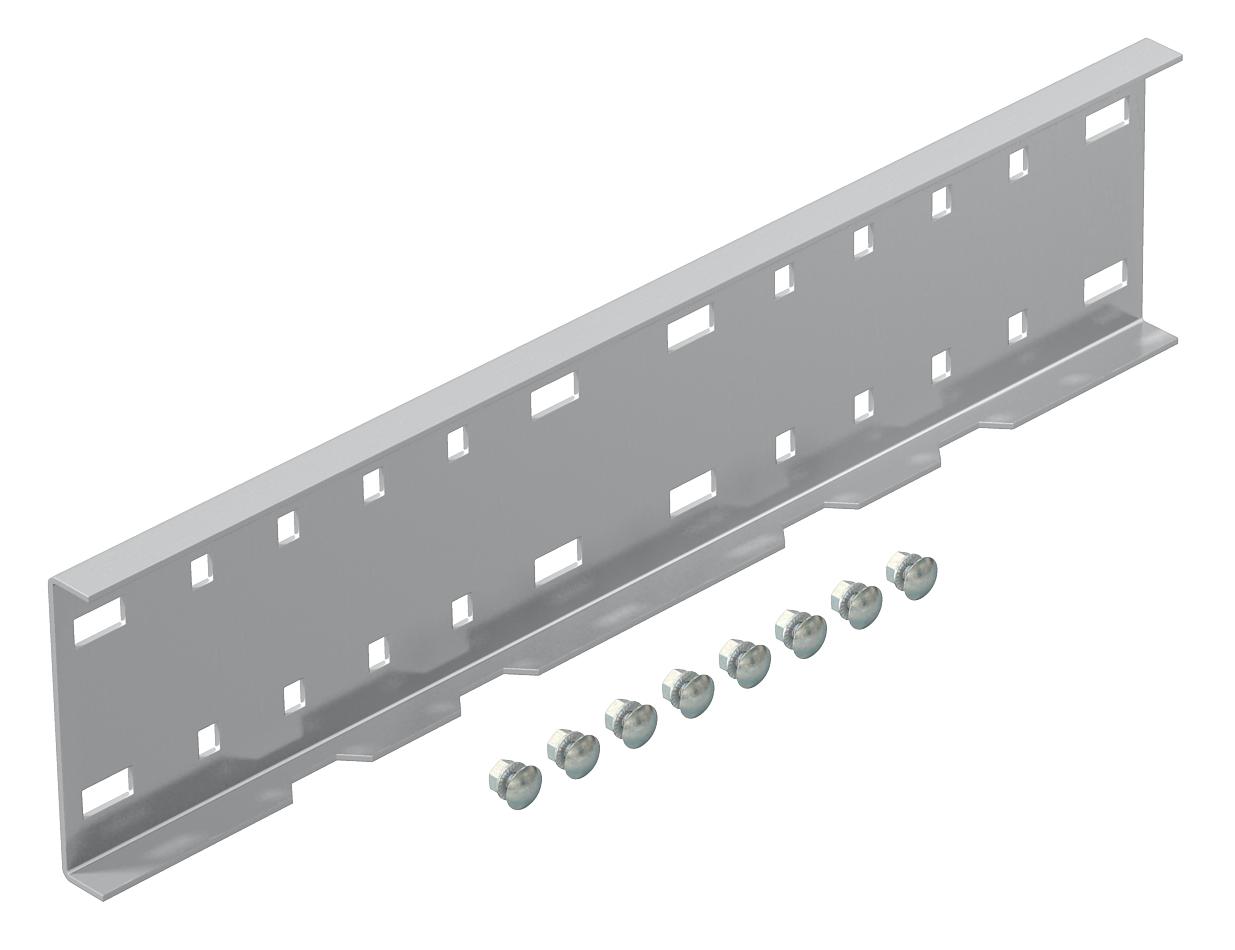

Straight connector for straight connections of cable trays, wide span cable trays and ladders with a side height of 110 mm.
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 110x500 Height 110 mm Length 500 mm Maintain electrical functions no Material Stainless steel Plate thickness 2,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for cable tray system height 110 mm Suitable for mesh cable tray no Surface Bright, treated Version for Straight connector Width 20 mm - All types
- Downloads
-
Data sheet WRVL 110 A4 / 6091234 , 0.23MB , pdfDeclaration of conformity WRVL 110 A4 / 6091234 , 0.11MB , pdfUK Declaration of Conformity WRVL 110 A4 / 6091234 , 0.09MB , pdfMounting instructions Weitspannkabelleitern , 11.33MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
