Straight connector 50 DD 45 | 45 | 1.5
morepic-1 morepic-2 video-1

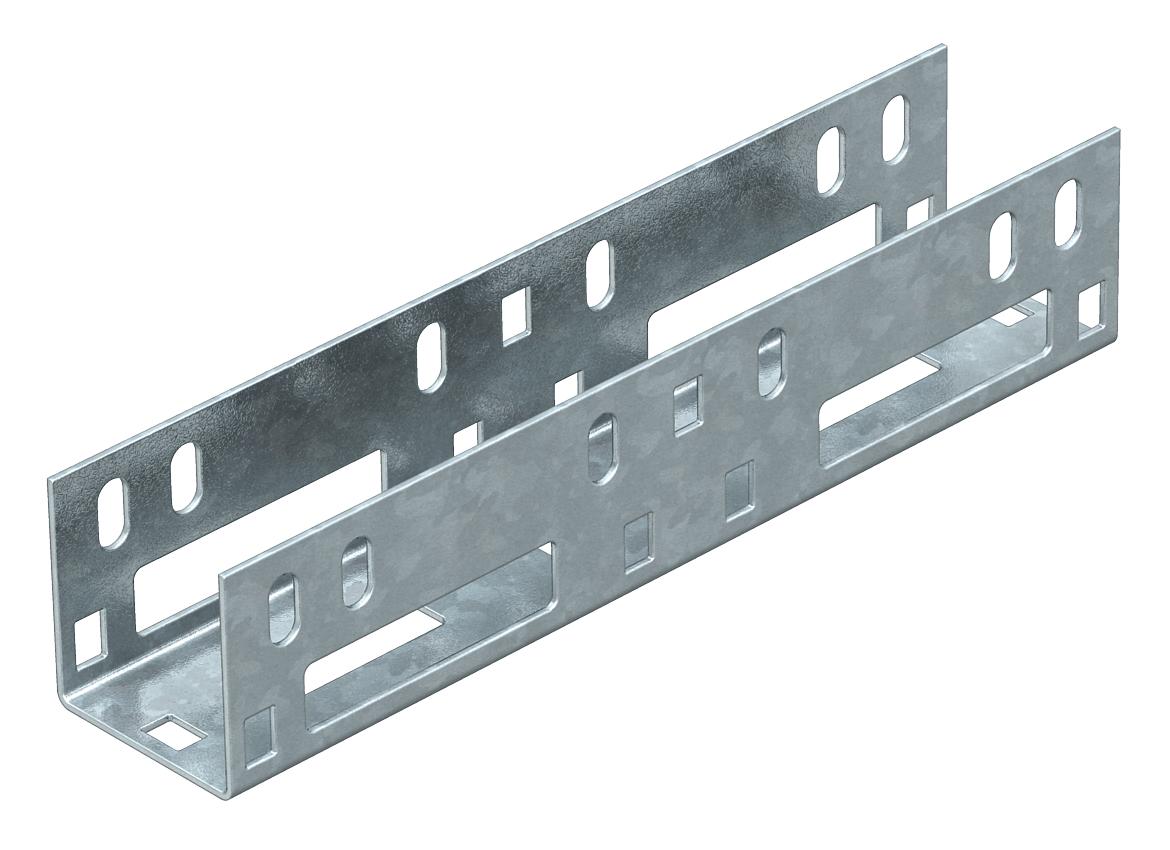

Straight connector 50 DD

Item no. 6066623 | EAN 4012196046089

6066623 / VF AZK 50 DD
45 mm
45 mm
1.5 mm
Product description

Product description

Straight connector for connection of luminaire support channels and AZ channels.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • AZ small duct, side height 50 mm
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical no
Connection type Screw connector
Dimension 45x45x220
Dimension 45x45x220
Material Steel
Plate thickness 1,5 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray no
Suitable for cable tray system height 45 mm
Suitable for mesh cable tray no
Surface Strip galvanised zinc/aluminium, Double Dip
Version for Straight connector

Dimensions

Height 45 mm
Width 45 mm
All types

All types

Types Width Height Plate thickness Item no. Quantity SSU
VF AZK 50 DD 45 mm 45 mm 1.5 mm 6066623
25 piece
