- Product description
-
Product description

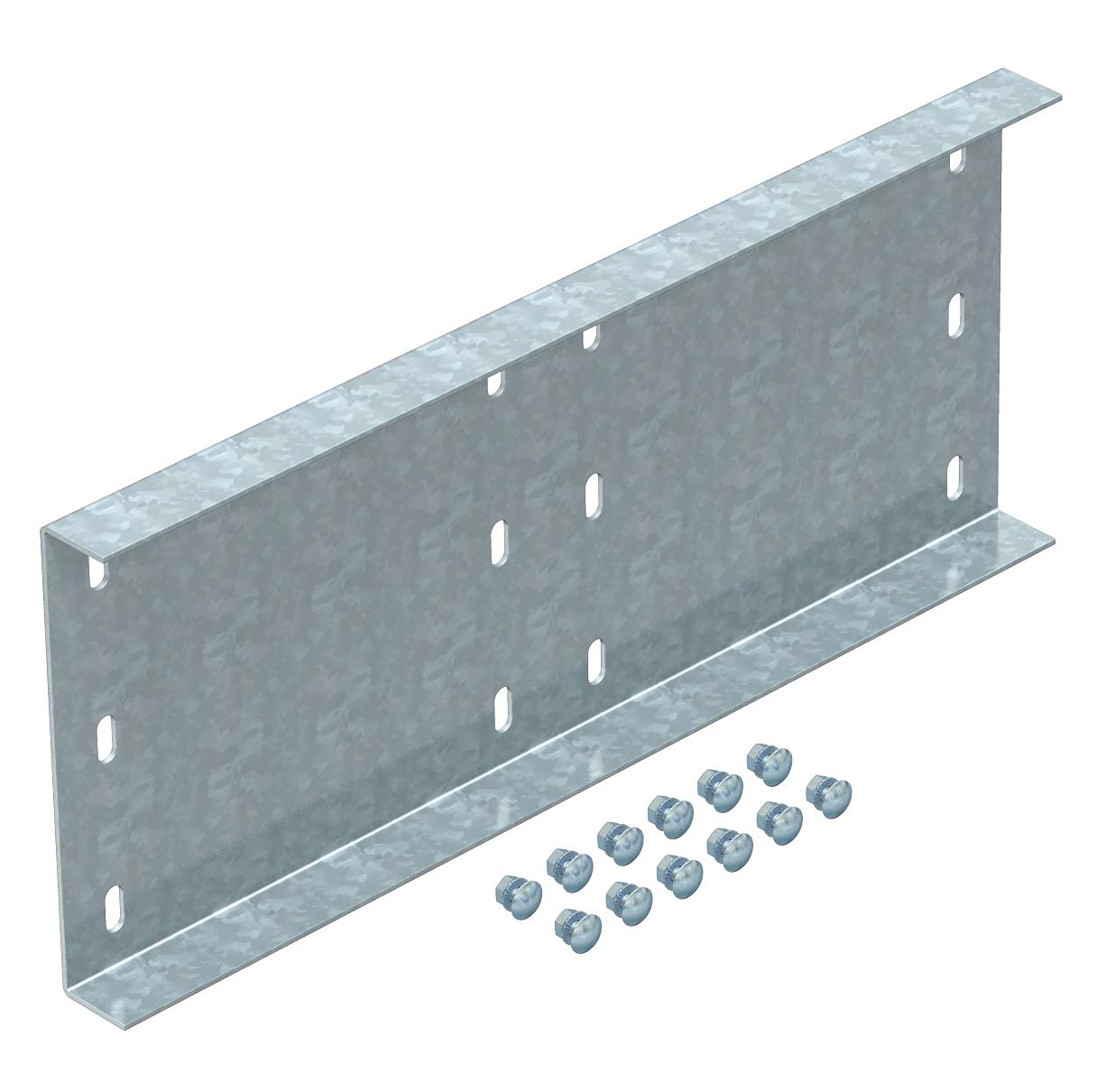

Straight connector for connections of wide span cable ladders and fittings with a side height of 200 mm.
- Technical data
-
Technical data

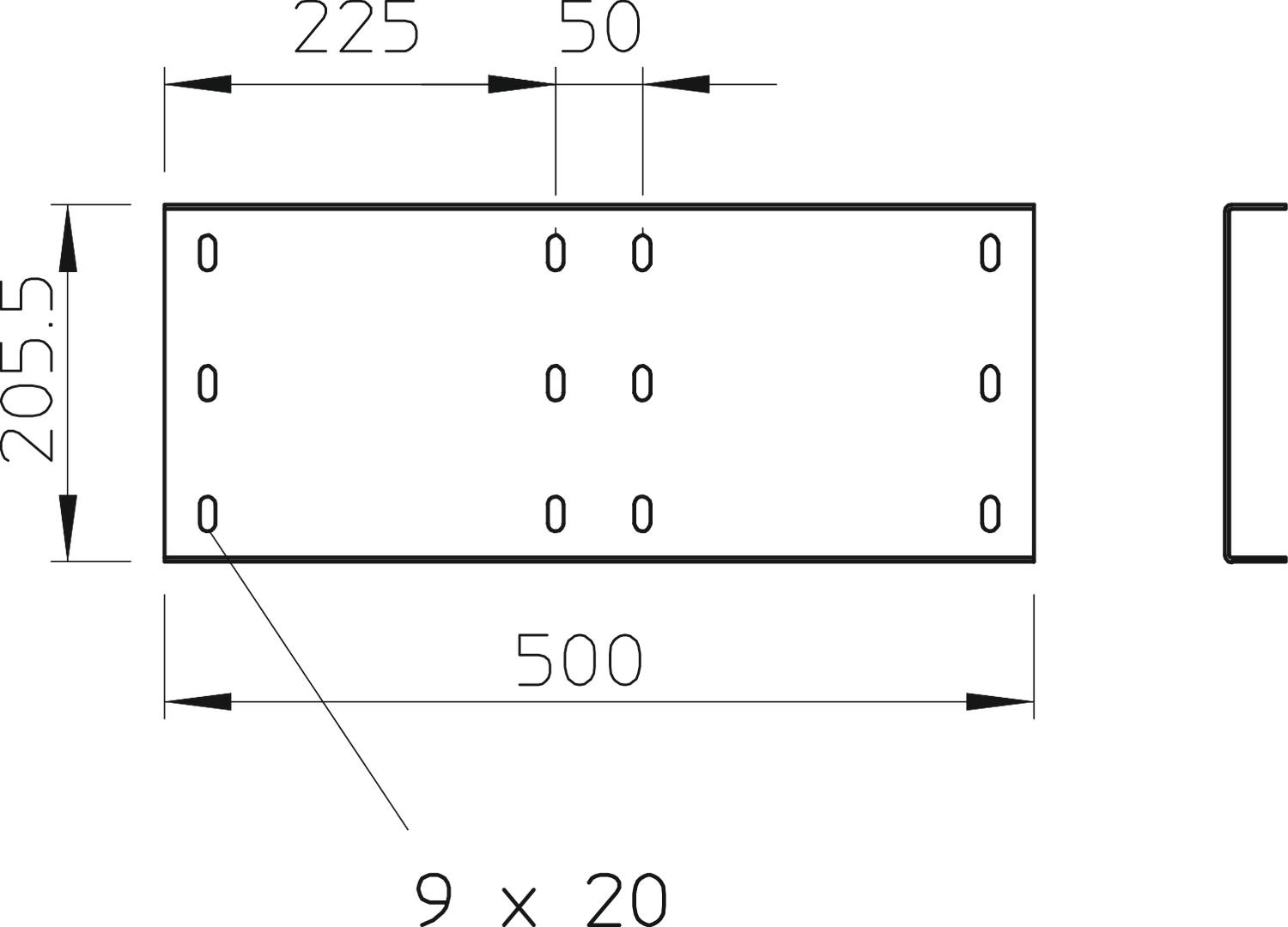

Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 200x500 Height 200 mm Length 500 mm Maintain electrical functions no Material Steel Plate thickness 2,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for cable tray system height 200 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight connector Width 20 mm - All types
- Downloads
-
Data sheet WRV 200 FT / 6232507 , 0.20MB , pdfDeclaration of conformity WRV 200 FT / 6232507 , 0.11MB , pdfUK Declaration of Conformity WRV 200 FT / 6232507 , 0.09MB , pdfREACH Declaration of conformity WRV 200 FT / 6232507 , 0.12MB , pdfRoHS Declaration of conformity WRV 200 FT / 6232507 , 0.12MB , pdfMounting instructions Weitspannkabelleitern , 11.33MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
