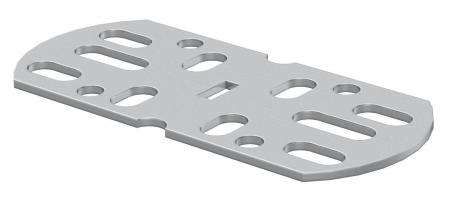

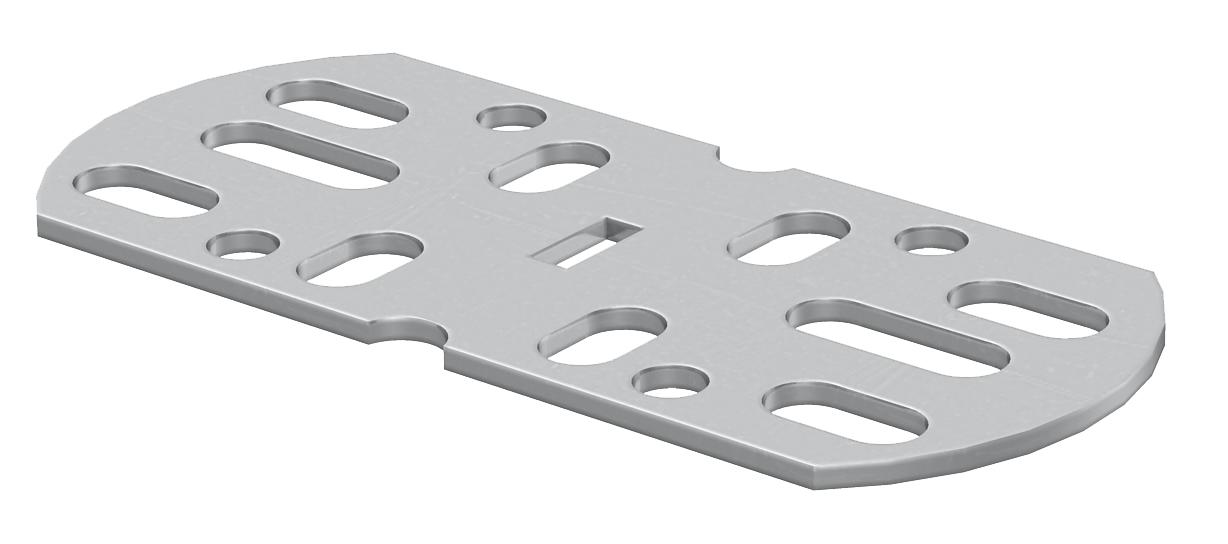

Straight and angle connector A2
Item no. 6066569 | EAN 4012196065059
- Product description
-
Product description
Straight and angle connector for connection of AZ channels.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 100 x 45 Dimension 45x100 Height 45 mm Material Stainless steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 50 mm Suitable for mesh cable tray no Surface Bright, treated Version for Straight and angle connector Width 100 mm - All types
- Downloads
-
Data sheet VF AZK A2 / 6066569 , 0.14MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity VF AZK A2 / 6066569 , 0.13MB , pdfREACH Declaration of conformity VF AZK A2 / 6066569 , 0.12MB , pdfRoHS Declaration of conformity VF AZK A2 / 6066569 , 0.13MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
