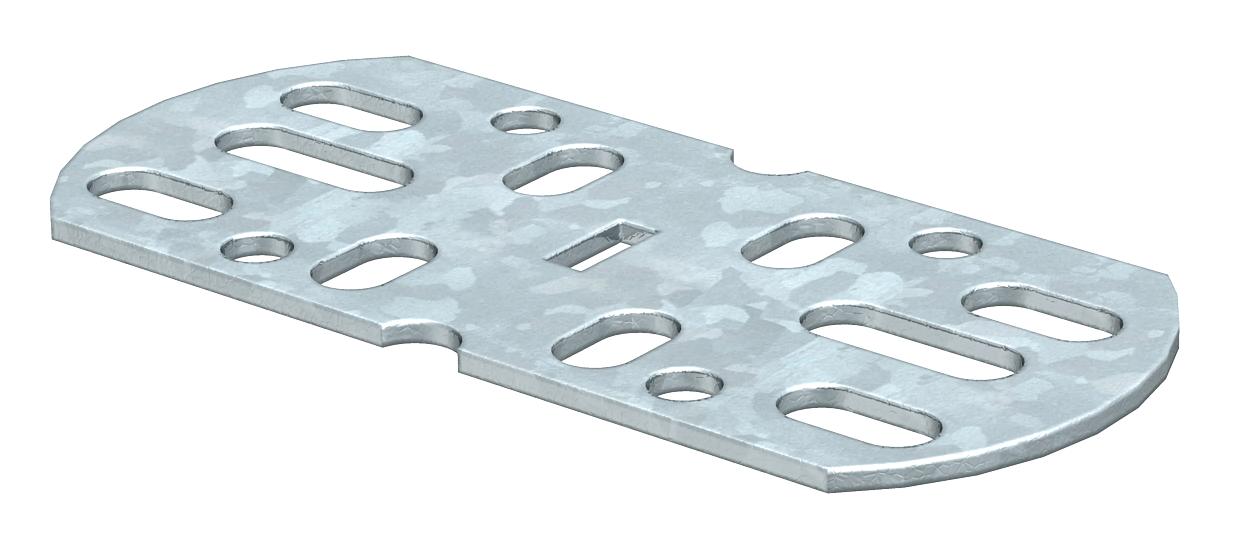

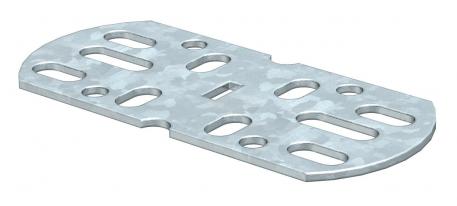

Straight and angle connector 50 FT
Item no. 6066550 | EAN 4012196064991
- Product description
-
Product description
Straight and angle connector for connection of AZ channels.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 45x100 Maintain electrical functions no Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 50 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight and angle connector Dimensions

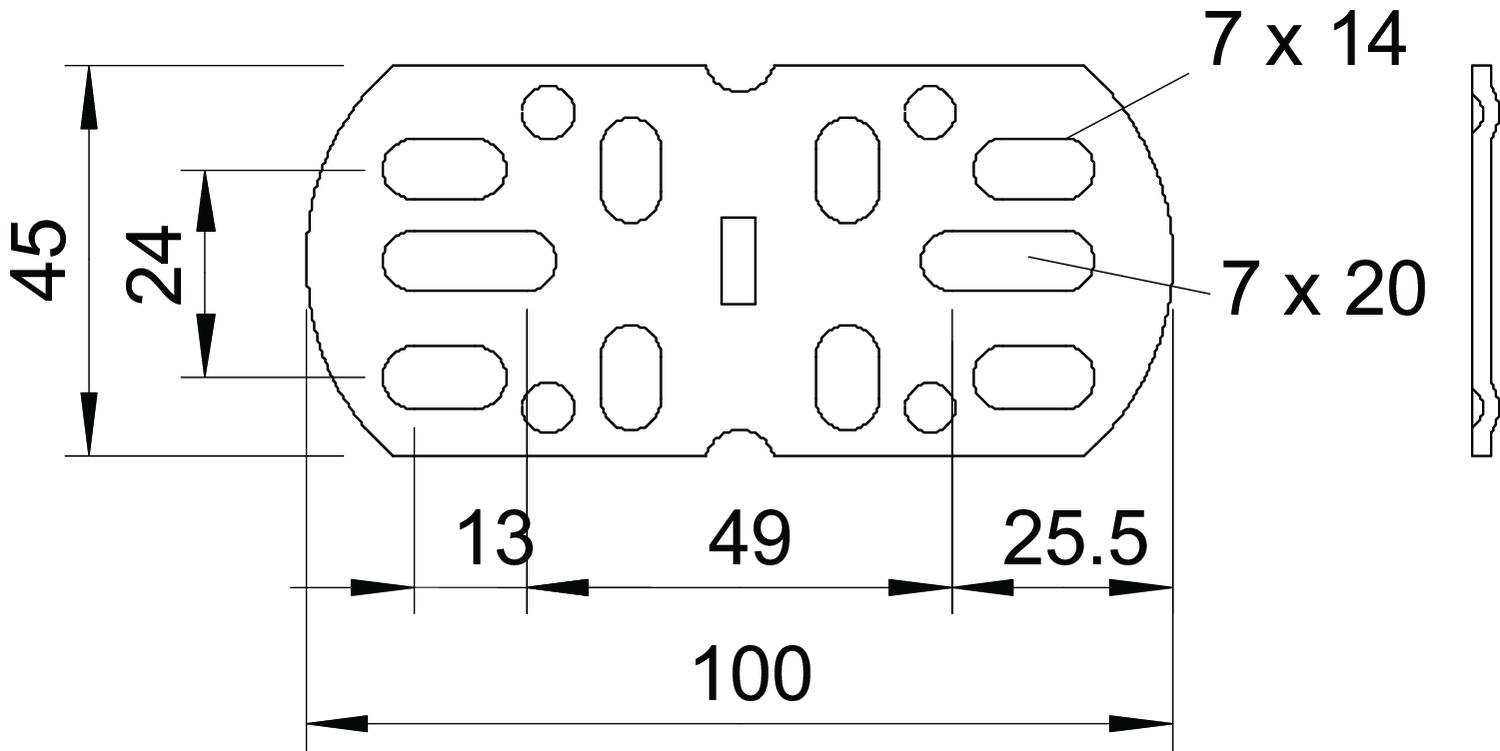

Height 45 mm Length 100 mm Width 100 mm - All types
- Downloads
-
Data sheet VF AZK FT / 6066550 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity VF AZK FT / 6066550 , 0.13MB , pdfREACH Declaration of conformity VF AZK FT / 6066550 , 0.12MB , pdfRoHS Declaration of conformity VF AZK FT / 6066550 , 0.13MB , pdf
