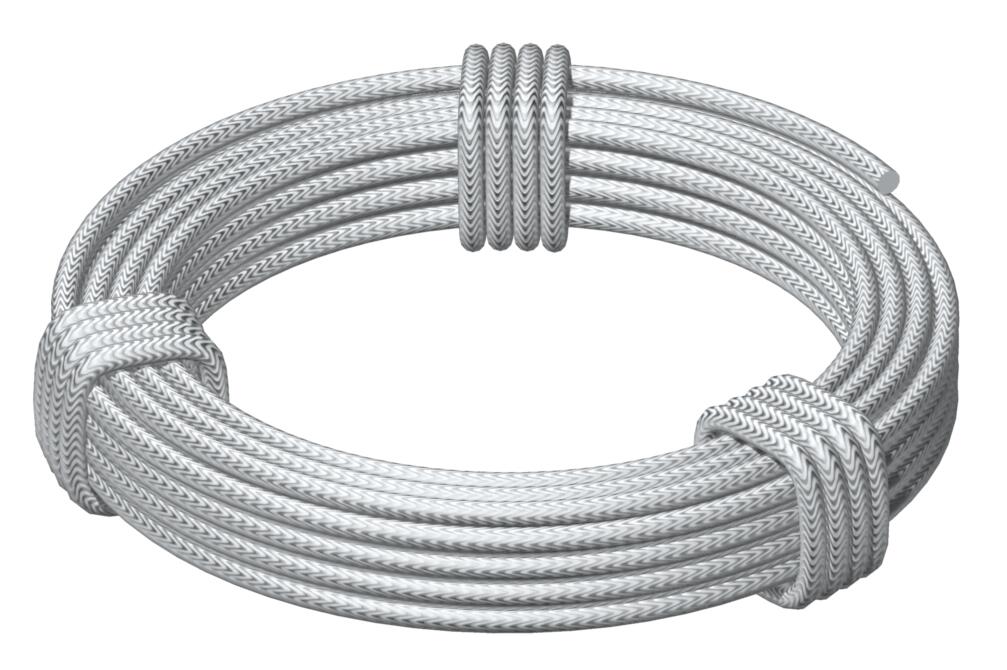

Steel wire tensioning rope G

Item no. 5303202 | EAN 4012195464273

Item no. / Types

Cable diameter

in rings	50 m

Product description

Product description

Steel wire tensioning rope, galvanised with fibre inlay (hemp core).

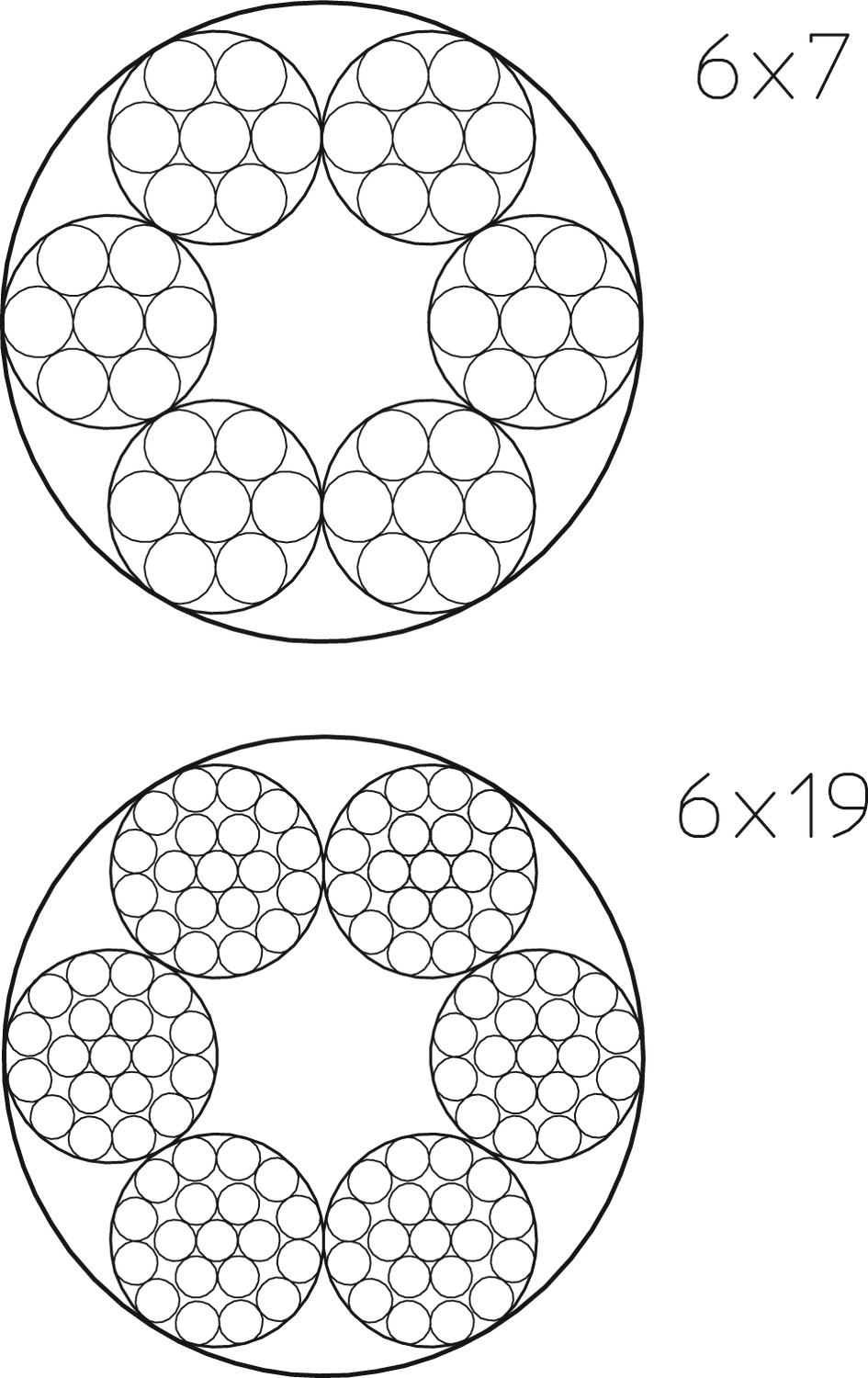

Cable Ø 2‒6 mm: round-stranded cable 6 x 7 according to DIN 3055.
Cable Ø 8‒10 mm: round-stranded cable 6 x19 according to DIN 3060.
Minimum break force 1770 N/mm².

Technical data

Technical data

Breaking load	2,35 kN
Cable diameter	2 mm
Dimension	2mm

in rings	50 m
Material	Steel
Surface	Electrogalvanized

All types

All types

Types	Cable diameter	in rings	Item no.	Quantity	SSU
957 2 G	2 mm	50 m	5303202	m	50 m
957 3 G	3 mm	50 m	5303206	m	50 m
957 4 G	4 mm	50 m	5303214	m	50 m
957 5 G	5 mm	50 m	5303222	m	50 m
957 6 G	6 mm	50 m	5303230	m	50 m
957 8 G	8 mm	50 m	5303257	m	50 m
957 10 G	10 mm	50 m	5303265	m	50 m
