Note: This article is discontinued.

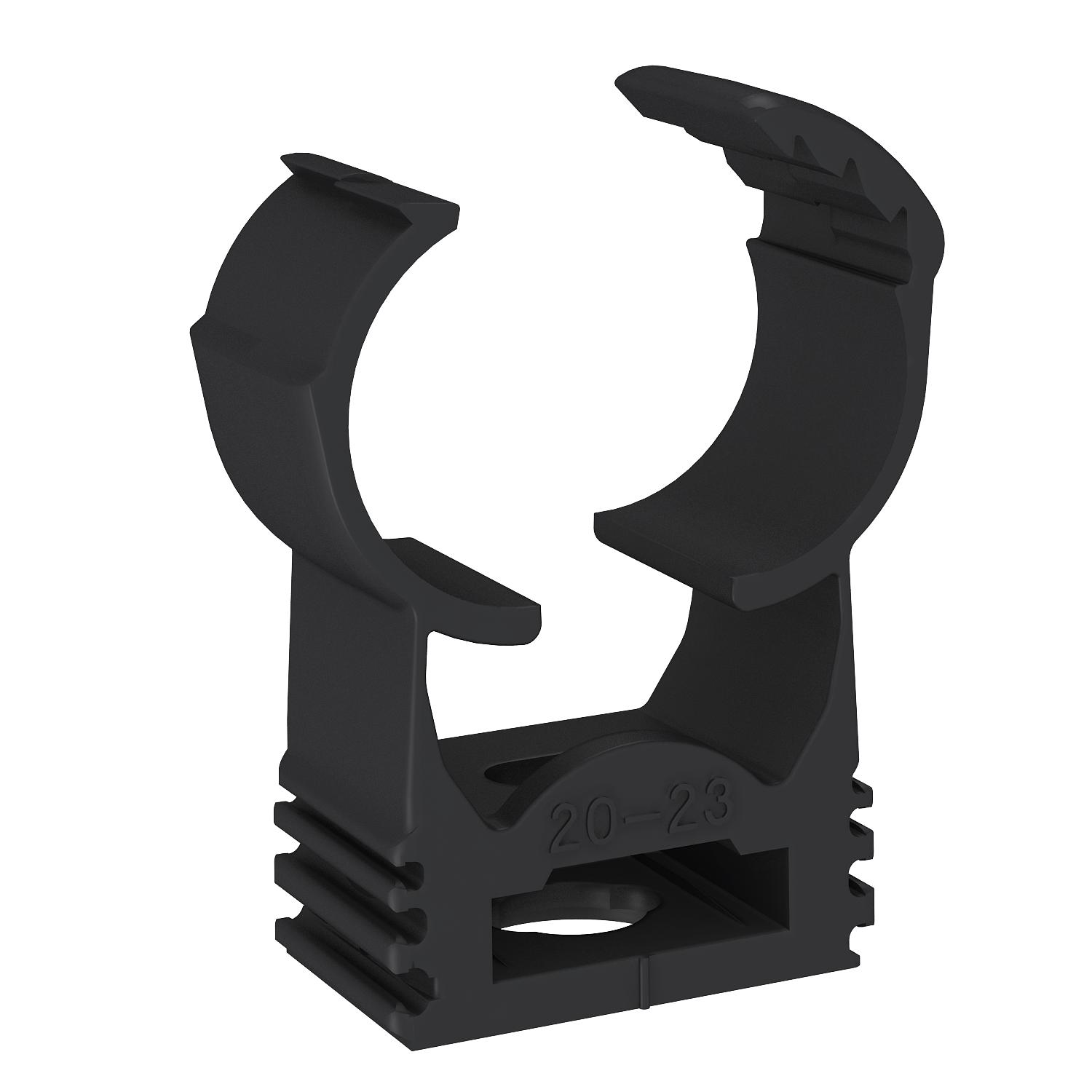

starQuick clip, black
Item no. 2146164 | EAN 4012195655367
- Product description
-
Product descriptionCable brackets for isCon® cables for mounting on the building structure. Can also be used in the first 1.5 m.
Can be arranged next to each other and are made from a UV and weather-resistant polyamide.
-
- Technical data
-
Technical data

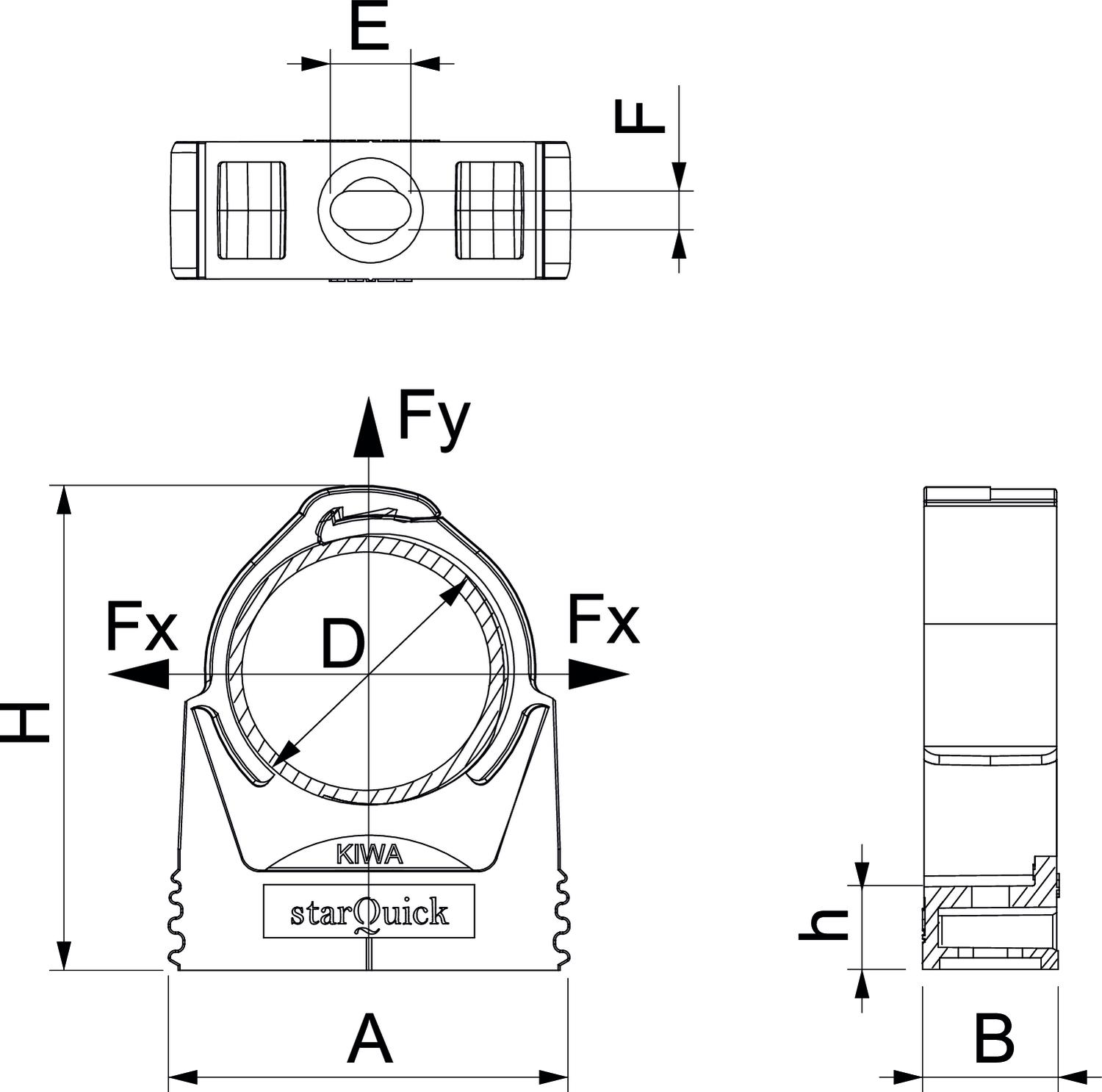

Breaking load 0,8 kN Clamping range D, max. 23,5 mm Clamping range D, min. 19,5 mm Closed yes Colour Jet black; RAL 9005 Dimension 19,5-23,5mm Dimension A 29 mm Dimension B 17 mm Dimension E 10 mm Dimension F 4,5 mm Dimension H 43,5 mm Dimension h 10,5 mm Expandable yes Fastening type Screw hole Halogen-free yes Material Polypropylene Nominal size 20-23 Number of cables/pipes 1 UV-resistant yes With inlay no - All types
- Downloads
-
Data sheet SQ-20 SW / 2146164 , 0.20MB , pdfBrochure Quick Pipe , 1.41MB , pdfEU declaration of conformity SQ-20 SW / 2146164 , 0.11MB , pdfREACH Declaration of conformity SQ-20 SW / 2146164 , 0.12MB , pdfRoHS Declaration of conformity SQ-20 SW / 2146164 , 0.12MB , pdfLabel approval UL certificate, starQuick , 0.07MB , pdf
