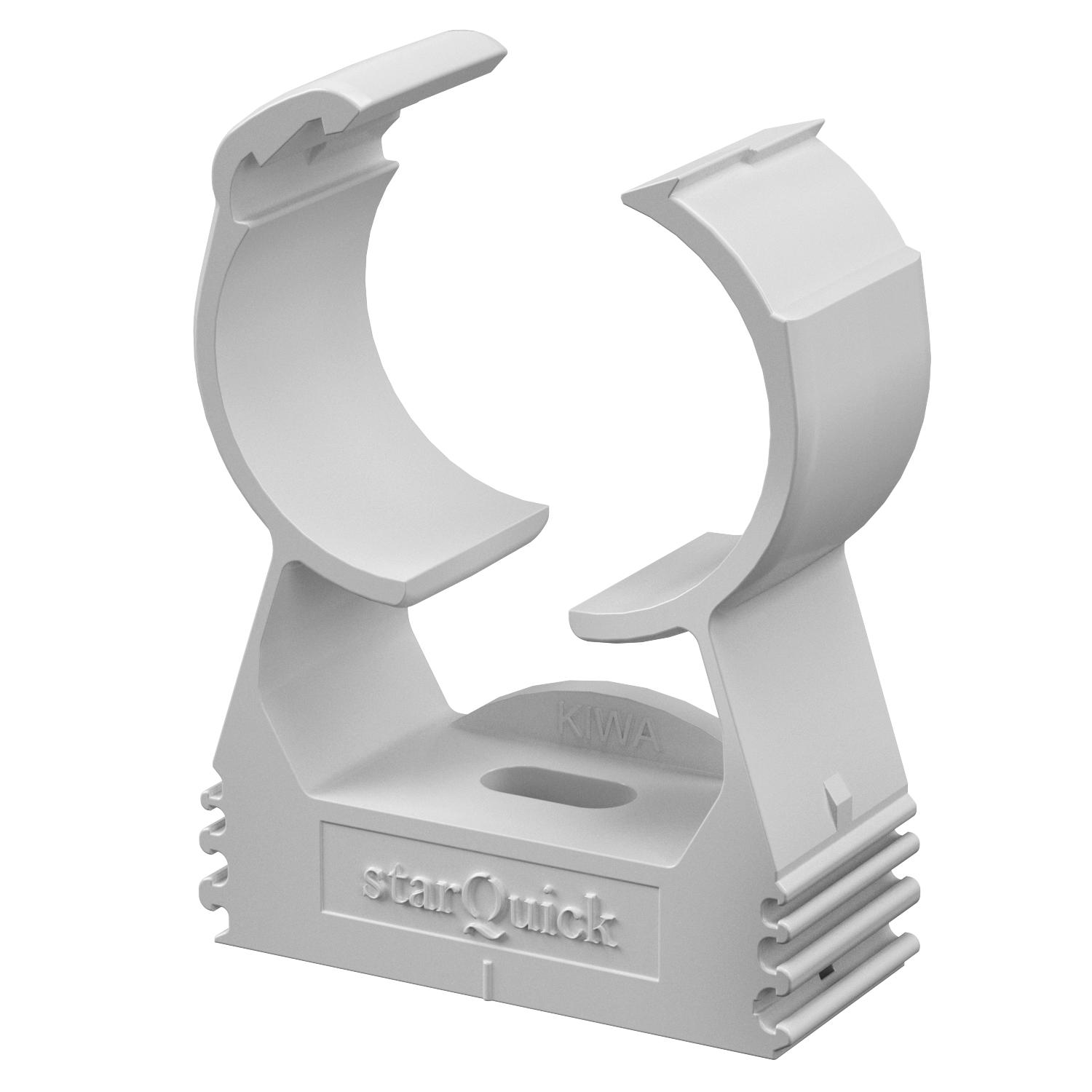

starQuick clip

Item no. 2146207 | EAN 4012195595717

Item no. / Types

Nominal size/text

Product description

Product description

Highly stable clip to accept plastic and metal electrical and sanitary pipes, as well as the Quick Pipe electrical installation pipe. Universal fastening options on walls, ceilings and steel structures, both indoors and outdoors. Flexible clamping range of several millimetres. Toolless pipe mounting. Can be arranged to up to Ø 28 mm, also with OBO Quick starQuick clip. For high load values, can be combined with double bracket. Can be mounted on profile rails for variable spacings and numbers of clips.

Technical data

Technical data

Breaking load	0,85 kN
Clamping range D, max.	28 mm
Clamping range D, min.	24 mm
Closed	yes
Colour	Light grey; RAL 7035
Dimension	24-28mm

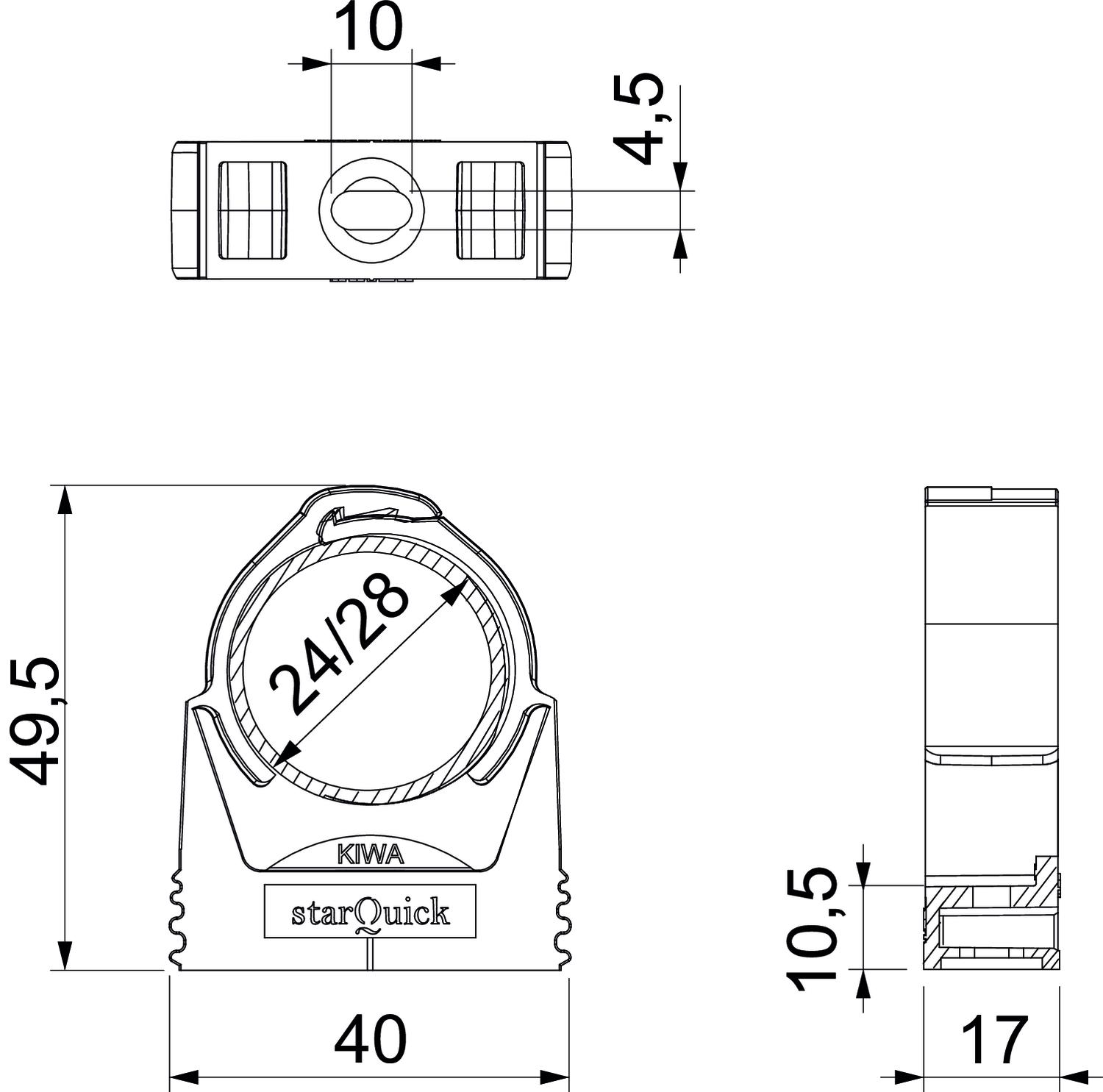

Dimension A	40 mm
Dimension B	17 mm
Dimension E	10 mm
Dimension F	4,5 mm
Dimension H	49,5 mm

Dimension h	10,5 mm
Expandable	yes
Fastening type	Screw hole
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Halogen-free	yes
Material	Polyamide
Nominal size/text	25-28
Number of cables/pipes	1
UV-resistant	yes
With inlay	no

All types

All types

Types	Nominal size/text	Item no.	Quantity	SSU
SQ-10 LGR	10	2146053	piece	100 piece
SQ-12 LGR	12-14	2146061	piece	100 piece
SQ-15 LGR	15-16	2146096	piece	100 piece
SQ-17 LGR	17-19	2146118	piece	100 piece
SQ-20 LGR	20-23	2146134	piece	50 piece
SQ-25 LGR	25-28	2146207	piece	50 piece
SQ-28 LGR	28-32	2146215	piece	50 piece
SQ-32 LGR	32-35	2146258	piece	50 piece
SQ-36 LGR	35-40	2146290	piece	25 piece
SQ-40 LGR	40-44	2146320	piece	25 piece
SQ-47 LGR	45-50	2146363	piece	25 piece
SQ-51 LGR	50-54	2146444	piece	15 piece
SQ-59 LGR	59-65	2146487	piece	15 piece
