Stand - TrayFix set 16 L
Item no. 5403098 | EAN 4012196098613
- Product description
-
Product description
• Fastening system for the mounting of cable trays and mesh cable trays with the FangFix block, e.g. for cable routing on flat roofs
• Matches OBO cable tray systems MKSM and SKSM
• Matches OBO mesh cable tray systems with a minimum width of 100 mm

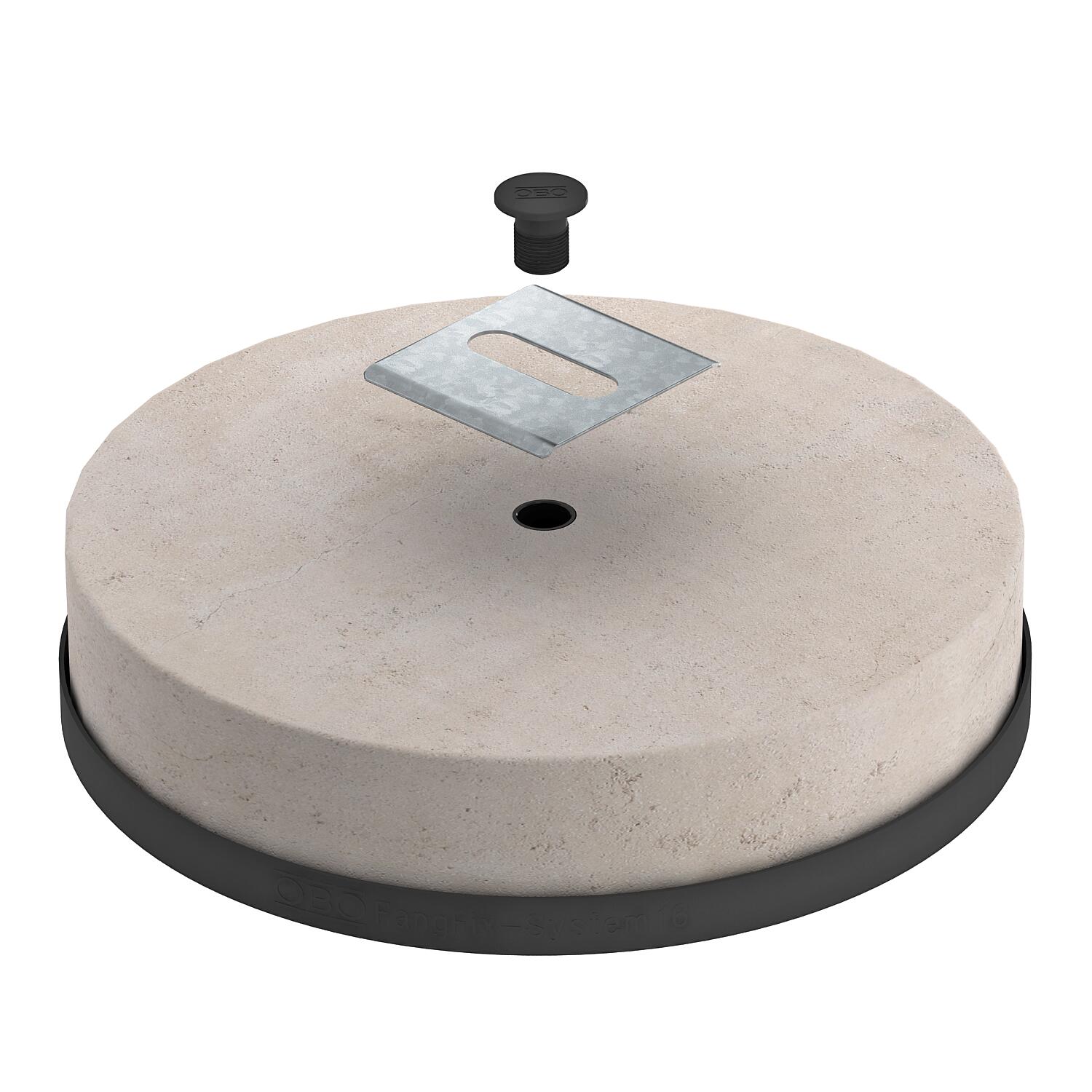

• Set consisting of TrayFix fastening and concrete block incl. base for FangFix system 16 kg
- Technical data
-
Technical data

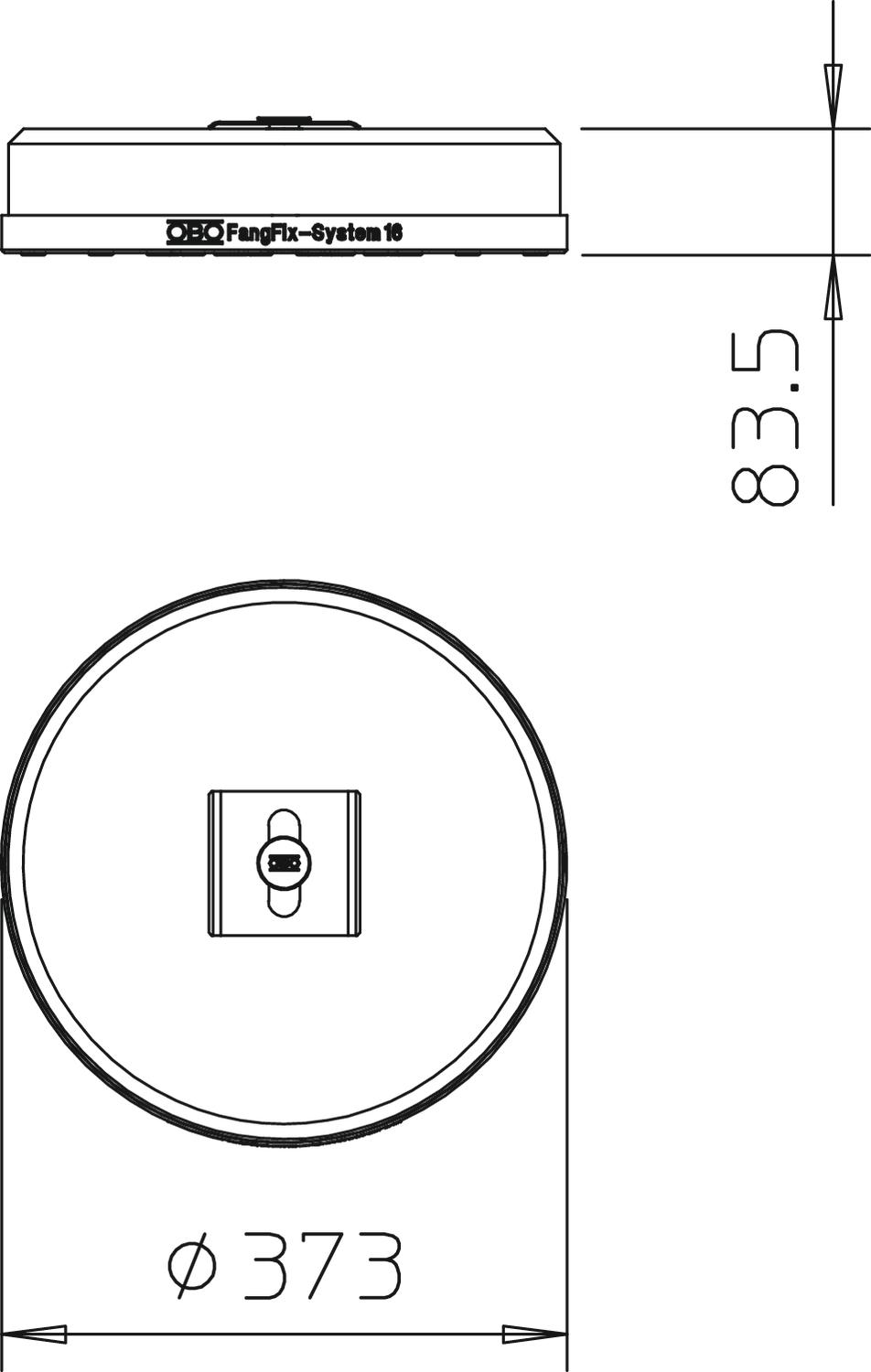

Dimension 373x373x84 From tray width 100 mm Dimensions
Height 83,5 mm Width 4 in - All types
- Downloads
-
Data sheet TrayFix-16-L / 5403098 , 0.20MB , pdfDeclaration of conformity TrayFix-16-L / 5403098 , 0.15MB , pdfREACH Declaration of conformity TrayFix-16-L / 5403098 , 0.12MB , pdfRoHS Declaration of conformity TrayFix-16-L / 5403098 , 0.12MB , pdfMounting instructions Mounting instructions, TrayFix , 2.89MB , pdf
