Product description

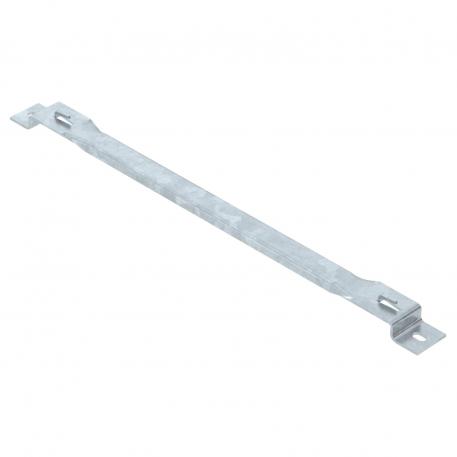

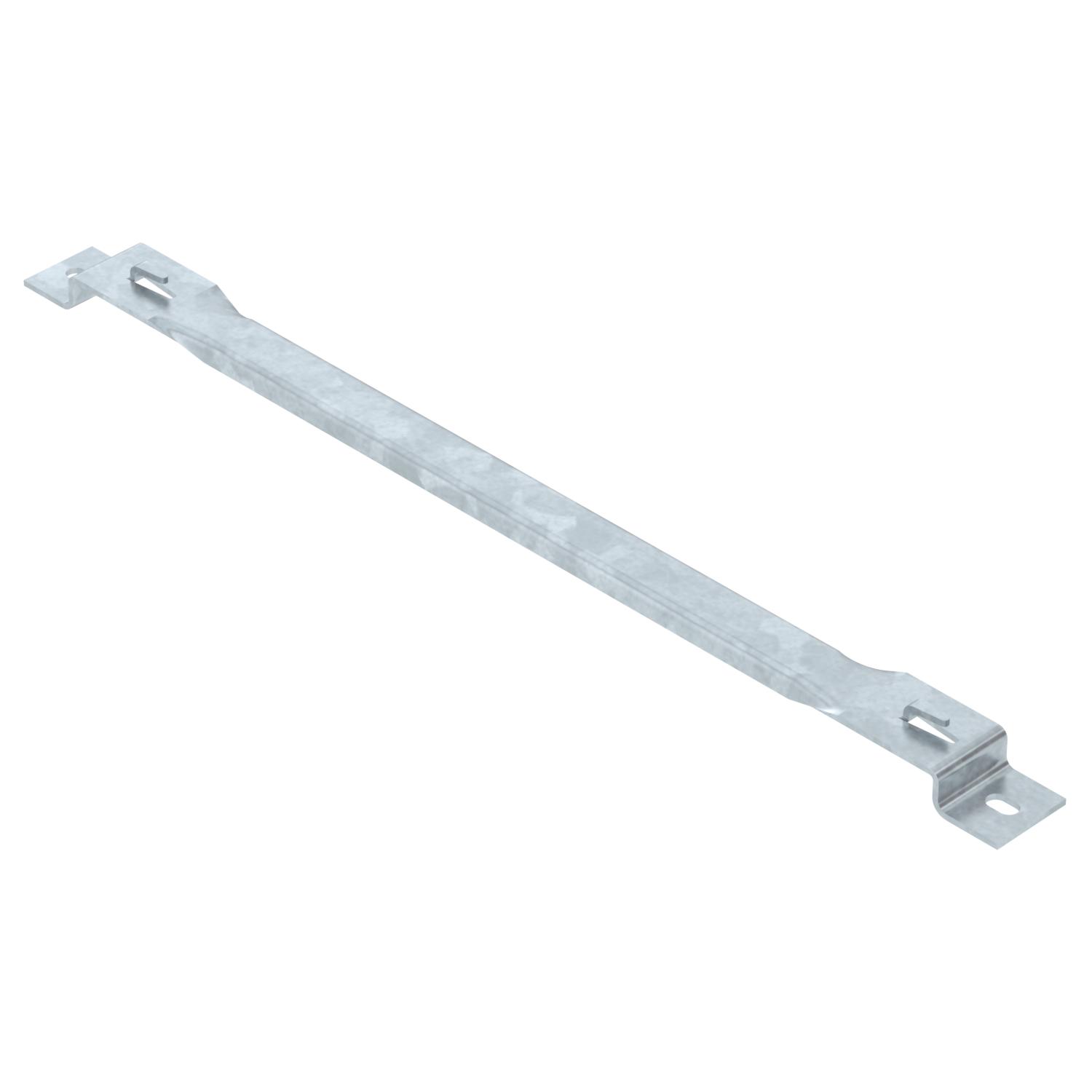

Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.
GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the spacer clamp.
- Technical data
-
Technical data

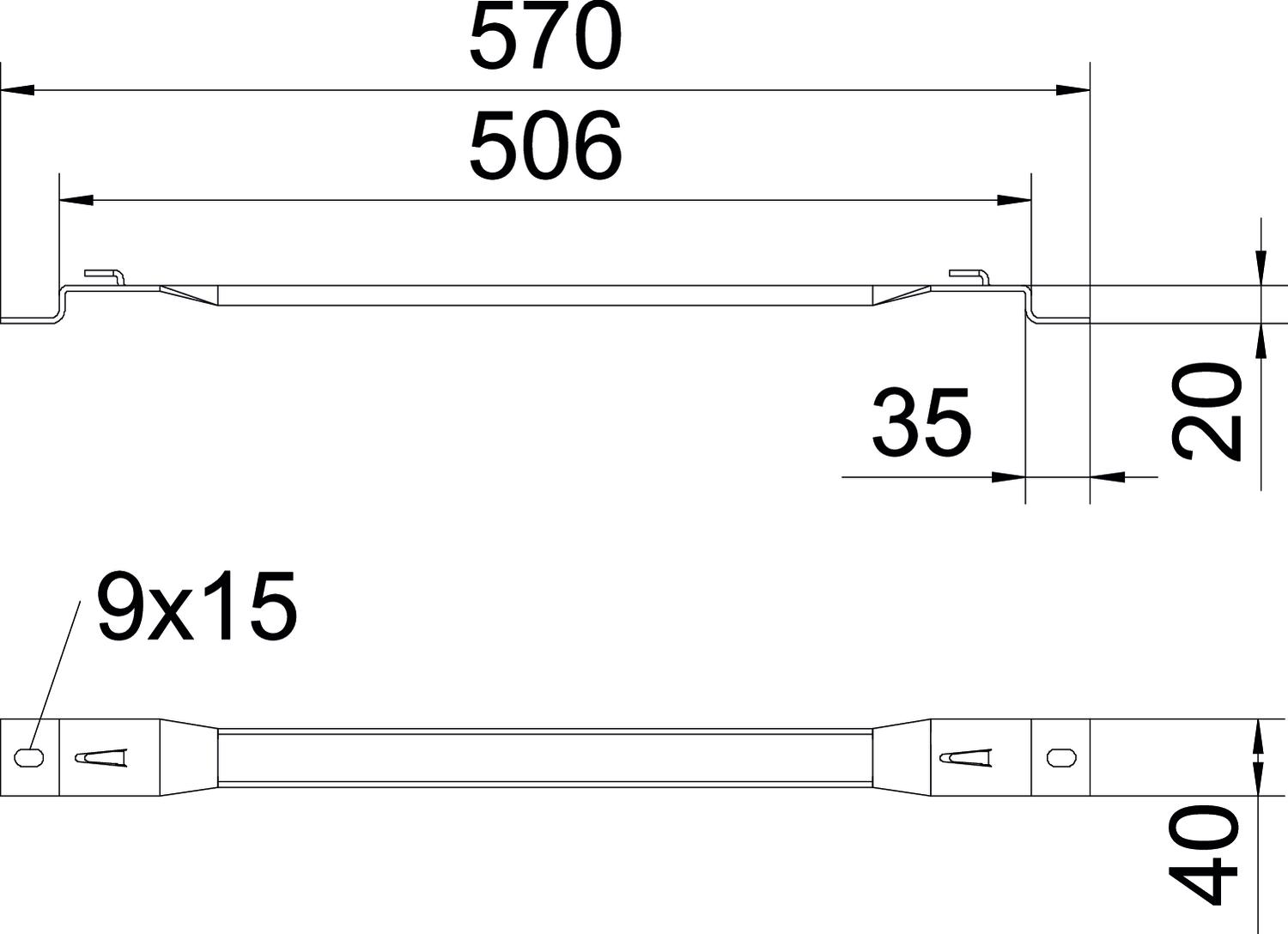

Dimension B500mm Dimension A 40 mm Dimension B 506 mm Dimension L 570 mm Height 0,79 in Height 20 mm Material Steel Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Hot-dip galvanised Tray fastening Retaining lug Version for Wall/ceiling clamp, trapezoidal profile - All types
-
All types
- Downloads
-
Data sheet DBLG 20 500 FT / 6015695 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DBLG 20 500 FT / 6015695 , 0.10MB , pdfREACH Declaration of conformity DBLG 20 500 FT / 6015695 , 0.12MB , pdfRoHS Declaration of conformity DBLG 20 500 FT / 6015695 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
