Stand-off bracket FT
Item no. 6015691 | EAN 4012196043446
- Product description
-
Product description

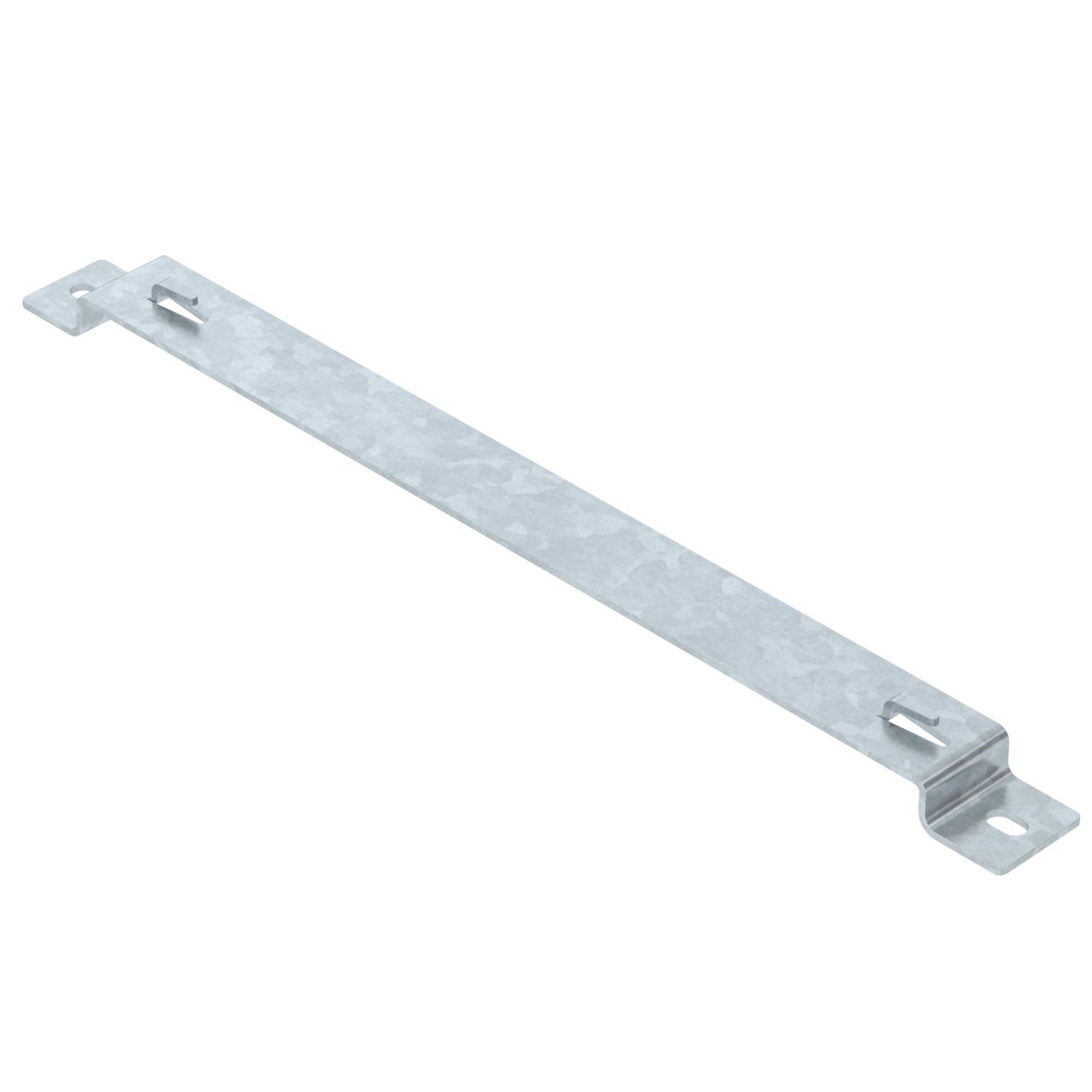

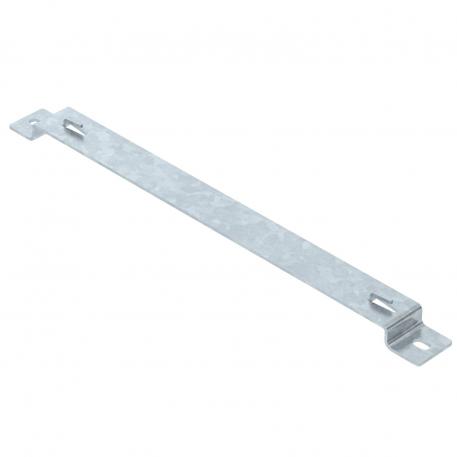

Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.
GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the spacer clamp.
-
- Technical data
-
Technical data

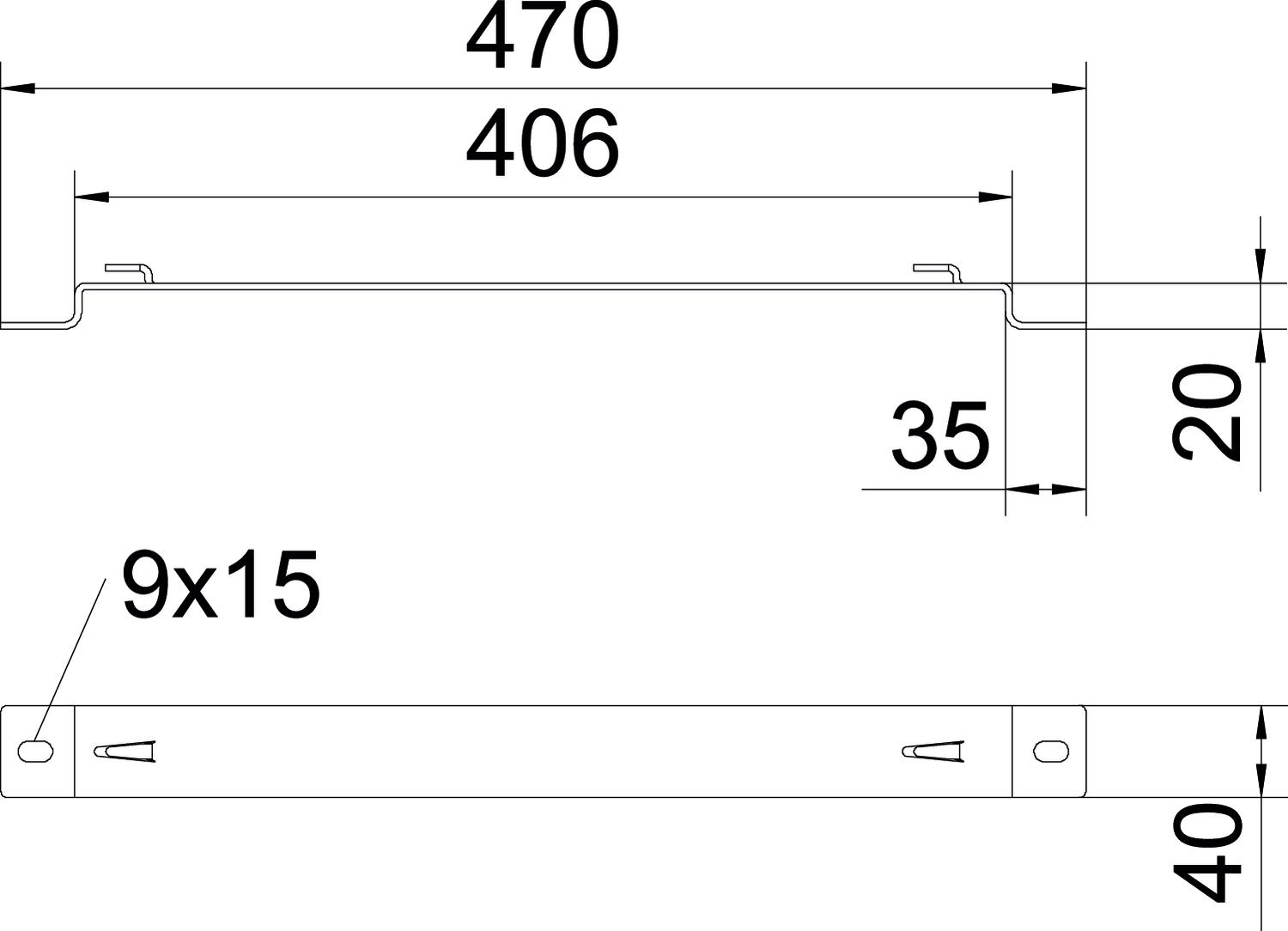

Dimension B400mm Dimension A 40 mm Dimension B 406 mm Dimension L 470 mm Height 0,79 in Height 20 mm Material Steel Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Hot-dip galvanised Tray fastening Retaining lug Version for Wall/ceiling clamp, trapezoidal profile - All types
-
All types
- Downloads
-
Data sheet DBLG 20 400 FT / 6015691 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DBLG 20 400 FT / 6015691 , 0.10MB , pdfUK Declaration of Conformity DBLG 20 400 FT / 6015691 , 0.14MB , pdfREACH Declaration of conformity DBLG 20 400 FT / 6015691 , 0.12MB , pdfRoHS Declaration of conformity DBLG 20 400 FT / 6015691 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
