- Product description
-
Product description

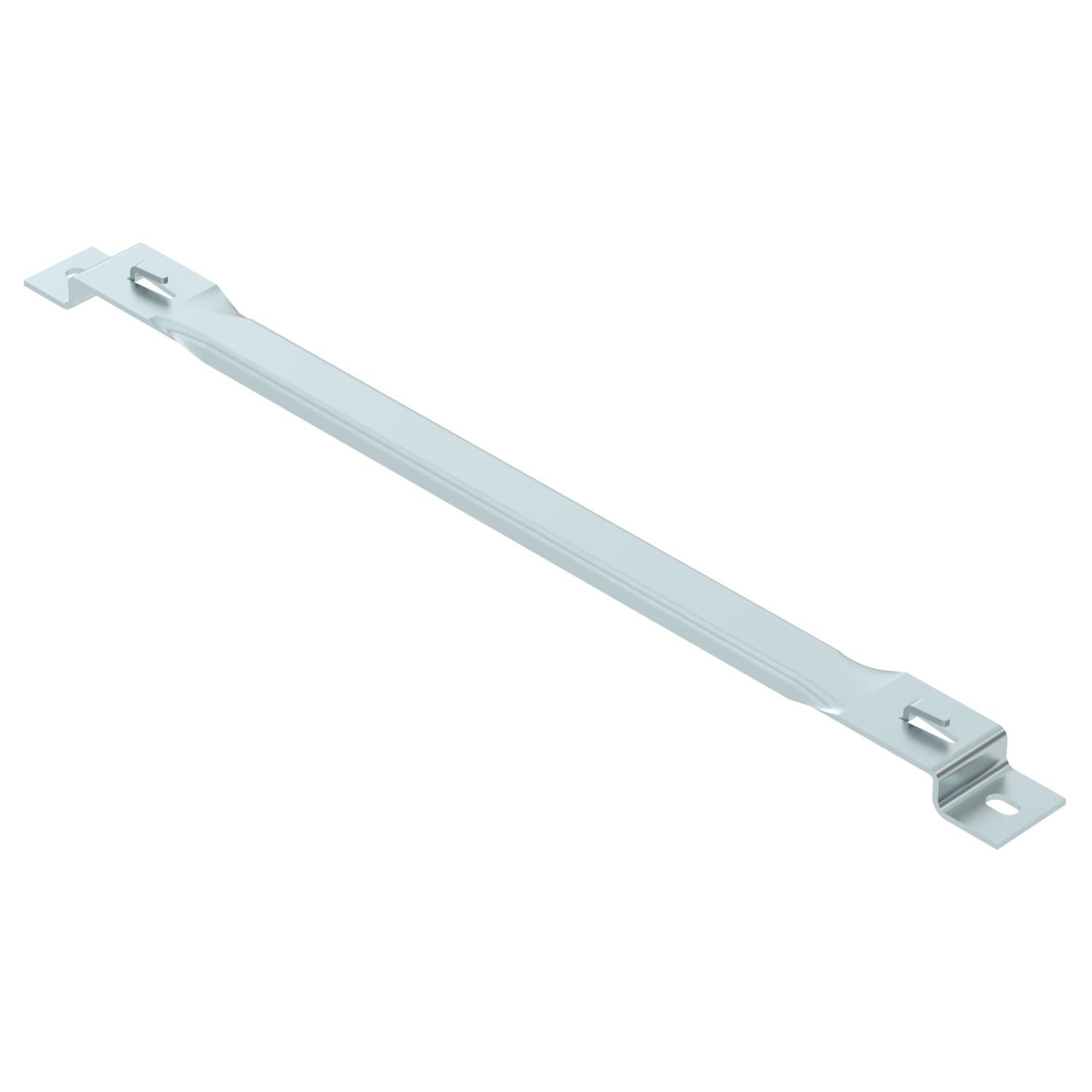

Stand-off bracket for stand-off of mesh cable trays on the floor or on the wall.
GRM mesh cable tray types with side heights of 35, 55 and 105 mm can be mounted onto the stand-off bracket.
- Technical data
-
Technical data
Dimension B500mm Material Steel Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Strip galvanized Tray fastening Retaining lug Version for Wall/ceiling clamp, trapezoidal profile Dimensions

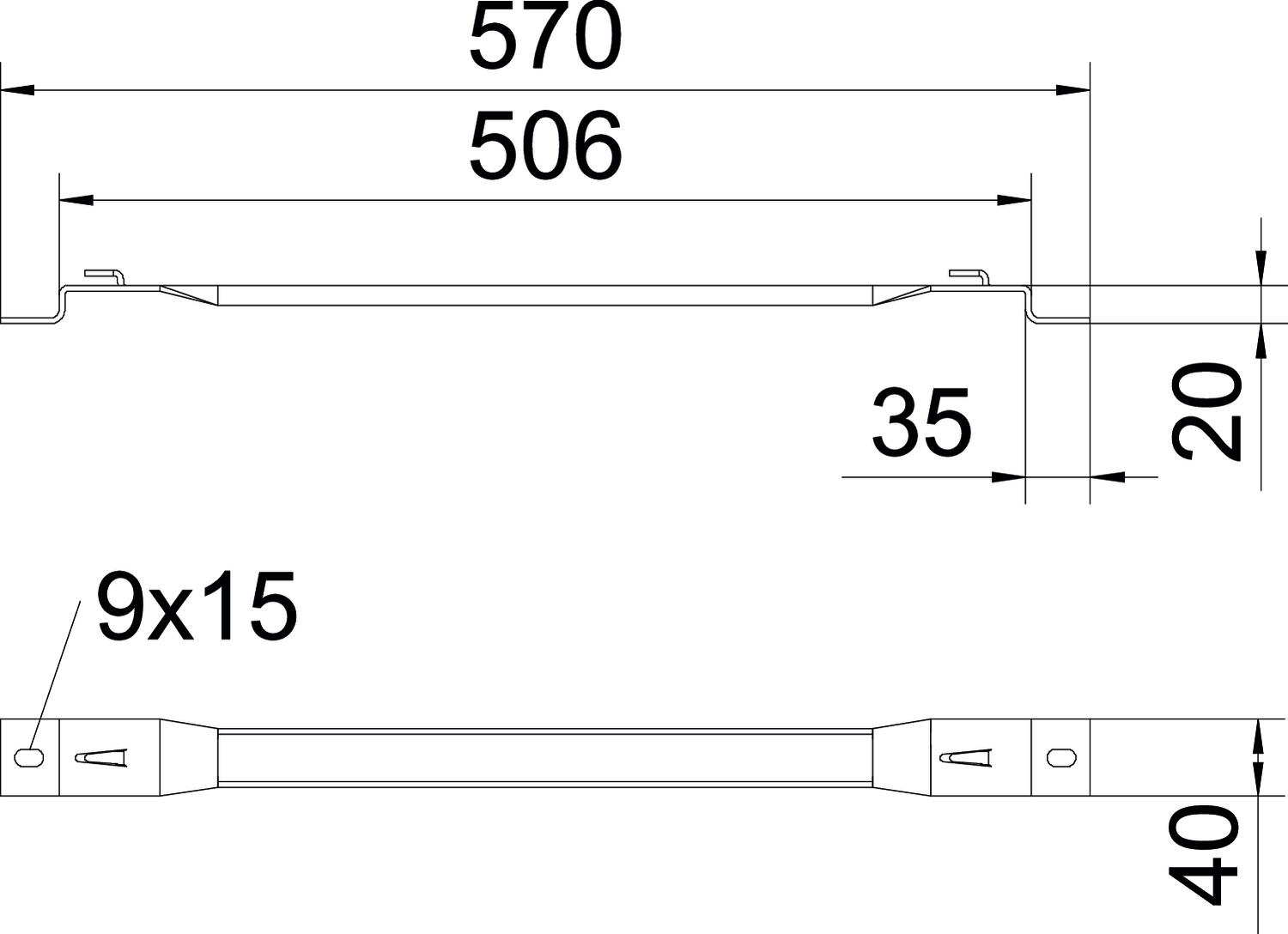

Dimension A 40 mm Dimension B 506 mm Dimension L 570 mm Height 0,79 in Height 20 mm - All types
-
All types
- Downloads
-
Data sheet DBLG 20 500 FS / 6015693 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DBLG 20 500 FS / 6015693 , 0.15MB , pdfUK Declaration of Conformity DBLG 20 500 FS / 6015693 , 0.14MB , pdfREACH Declaration of conformity DBLG 20 500 FS / 6015693 , 0.12MB , pdfRoHS Declaration of conformity DBLG 20 500 FS / 6015693 , 0.12MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
