Stand for FangFix system, min. 16 kg
Item no. 5403200 | EAN 4012195548713
- Product description
-
Product description

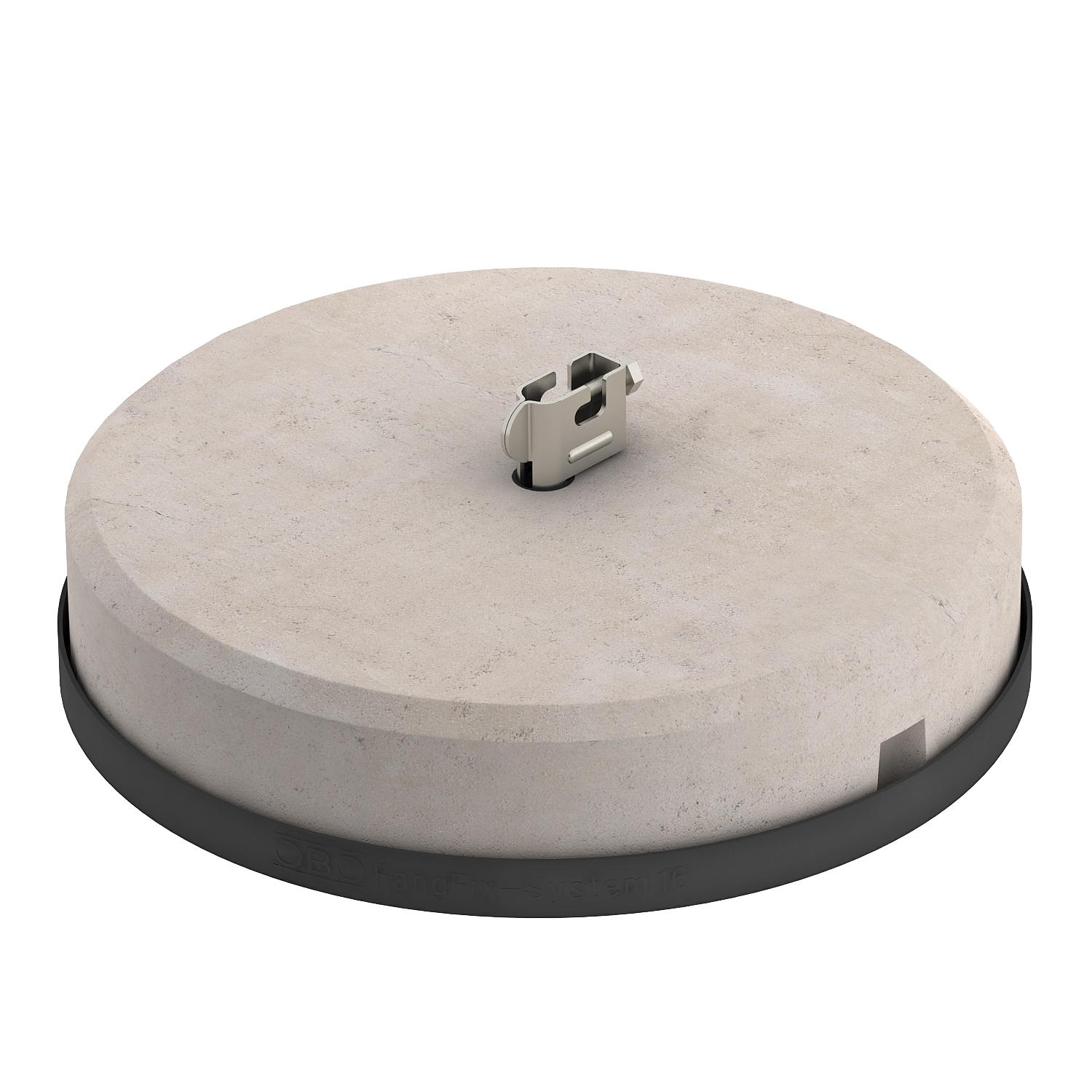

• System consists of FangFix stone with edge protection and clamp
• FangFix clamp made of VA; lightning current tested with VDE 0185-305 (IEC 62305)
• 16 kg stone of Ø 365 mm, high level of stability
• Quick and easy mounting of air-termination rod using anchors
• Concrete, frost-resistant
• The FangFix stone can be stacked
• Suitable for Ø 16 mm pipe air-termination rods
-
- Technical data
-
Technical data

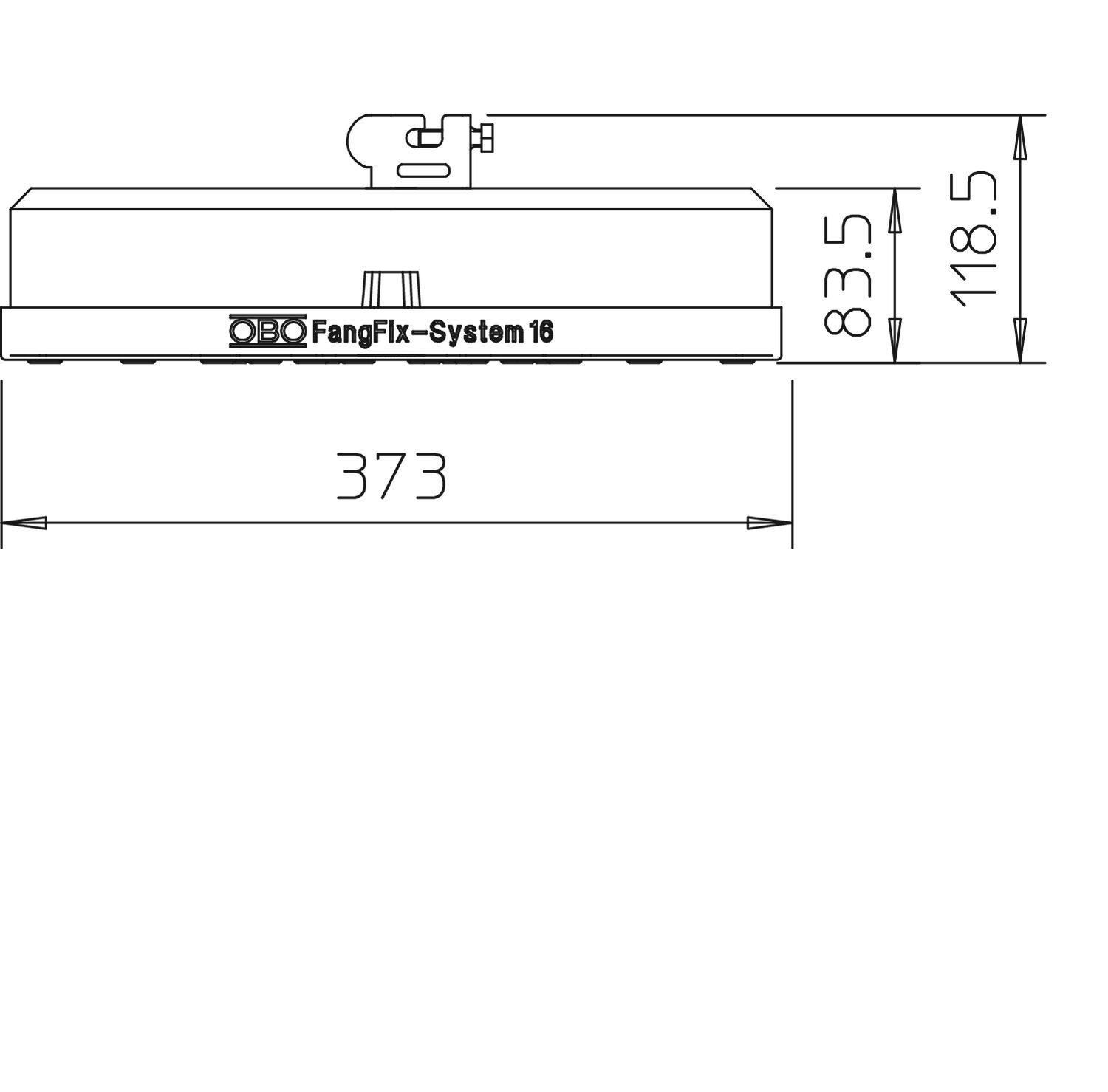

Air-termination rod holder Thread Diameter 373 mm Dimension 16kg Fit Rd 8 mm Material Concrete Nominal size Ø 373 mm Tapered no Version for Base Weight 16 kg - All types
- Downloads
-
Data sheet F-FIX-16 / 5403200 , 0.18MB , pdfREACH Declaration of conformity F-FIX-16 / 5403200 , 0.12MB , pdfRoHS Declaration of conformity F-FIX-16 / 5403200 , 0.12MB , pdfMounting instructions Mounting instructions, FangFix , 0.04MB , pdf
