Stand for FangFix system, min. 10 kg
Item no. 5403110 | EAN 4012195070061
- Product description
-
Product description
• System consisting of FangFix block with base and terminal
• FangFix terminal made of VA; lightning current-tested with 100 kA (10/350)
• 16 kg block of Ø 365 mm, high resistance level
• Quick, simple mounting of the air-termination rod using anchor technology
• Concrete, frost-resistant
• The FangFix block can be stacked
• Suitable for Ø 16 mm pipe air-termination rods
-
- Technical data
-
Technical data

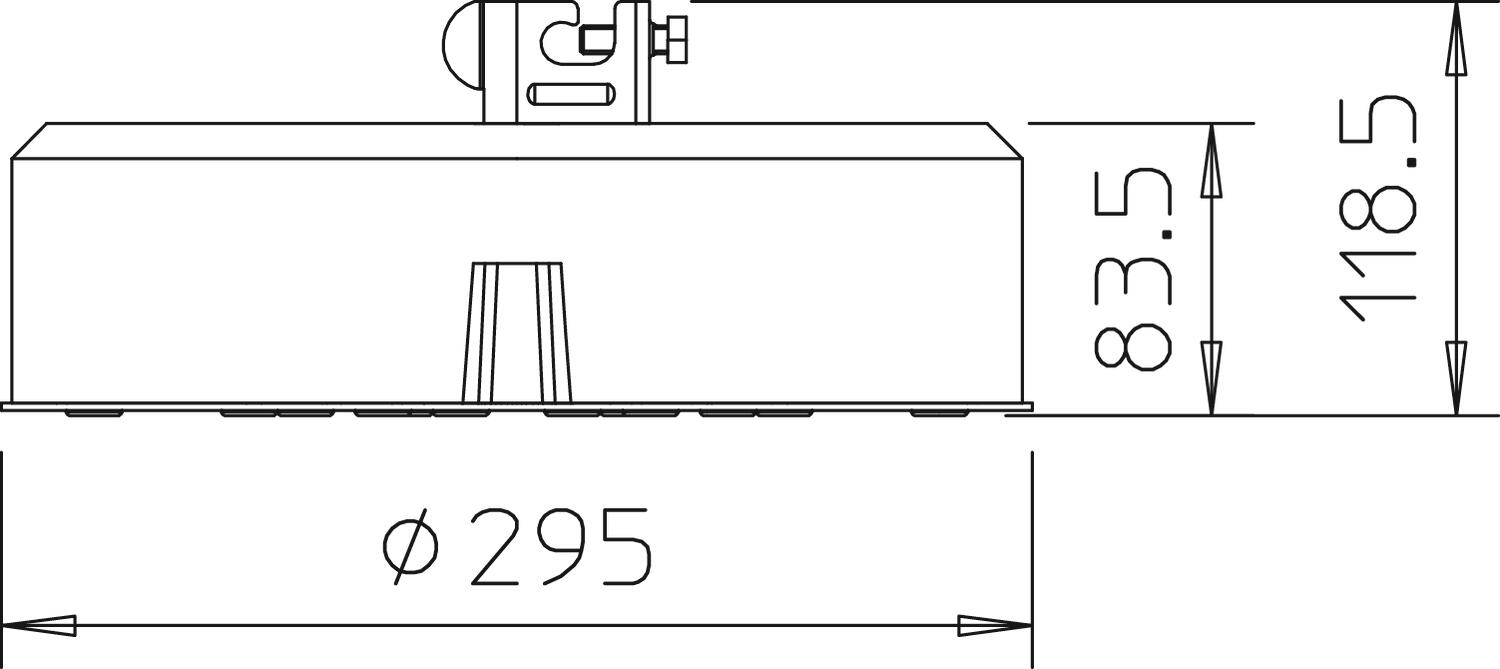

Air-termination rod holder Thread Diameter 295 mm Dimension 10kg Fit Rd 8 mm Material Concrete Nominal size Ø 295 mm Tapered no Version for Base Weight 10 kg - All types
- Downloads
-
Data sheet F-FIX-10B / 5403110 , 0.24MB , pdfMounting instructions Mounting instructions, FangFix , 0.04MB , pdf
