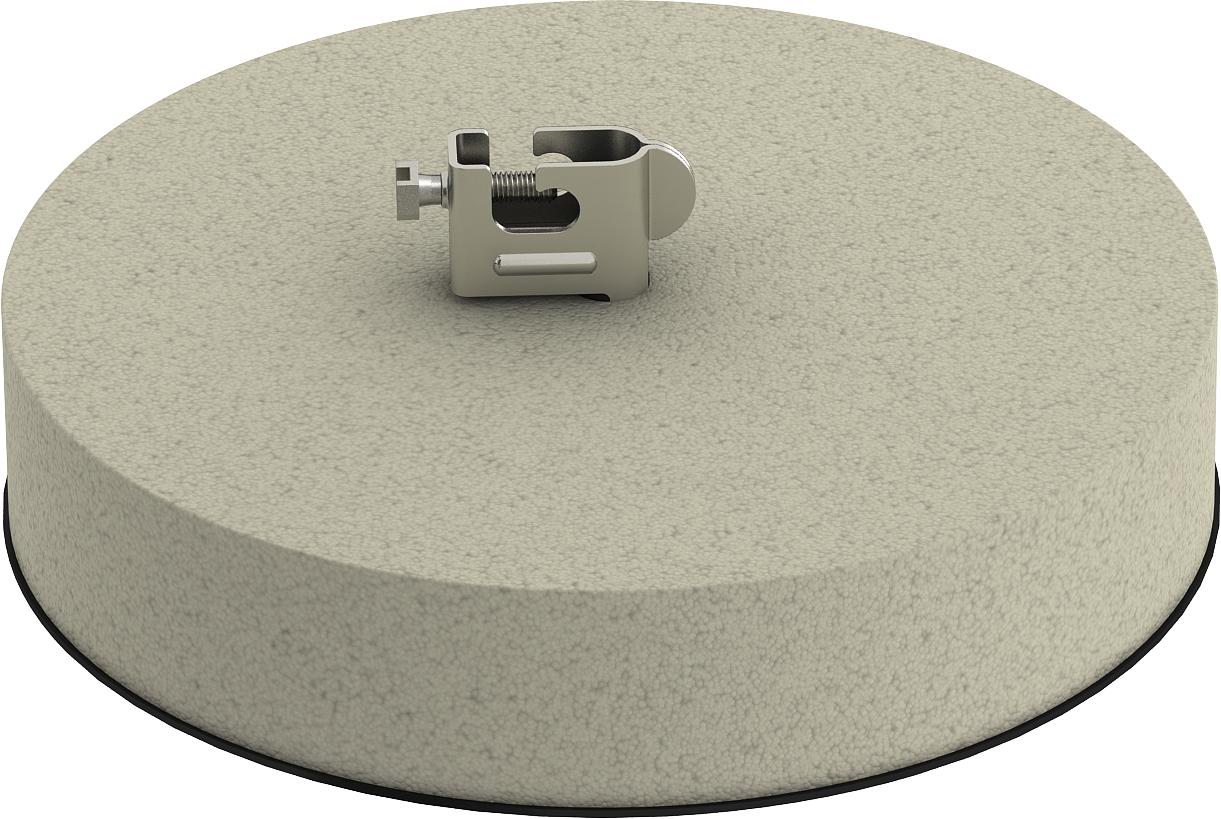

Stand for FangFix system, min. 10 kg
Item no. 5403103 | EAN 4012195070054
- Product description
-
Product description
• System consists of FangFix block with base and clamp
• FangFix clamp made of VA; complies with the requirements of VDE 0185-305 (IEC 62305)
• Min. 10 kg block of Ø 289 mm, high level of stability
• Quick and easy installation of air-termination rod using anchors
• Frost-resistant concrete
• The FangFix stone can be stacked
• Suitable for Ø 16 mm pipe air-termination rods
-
- Technical data
-
Technical data

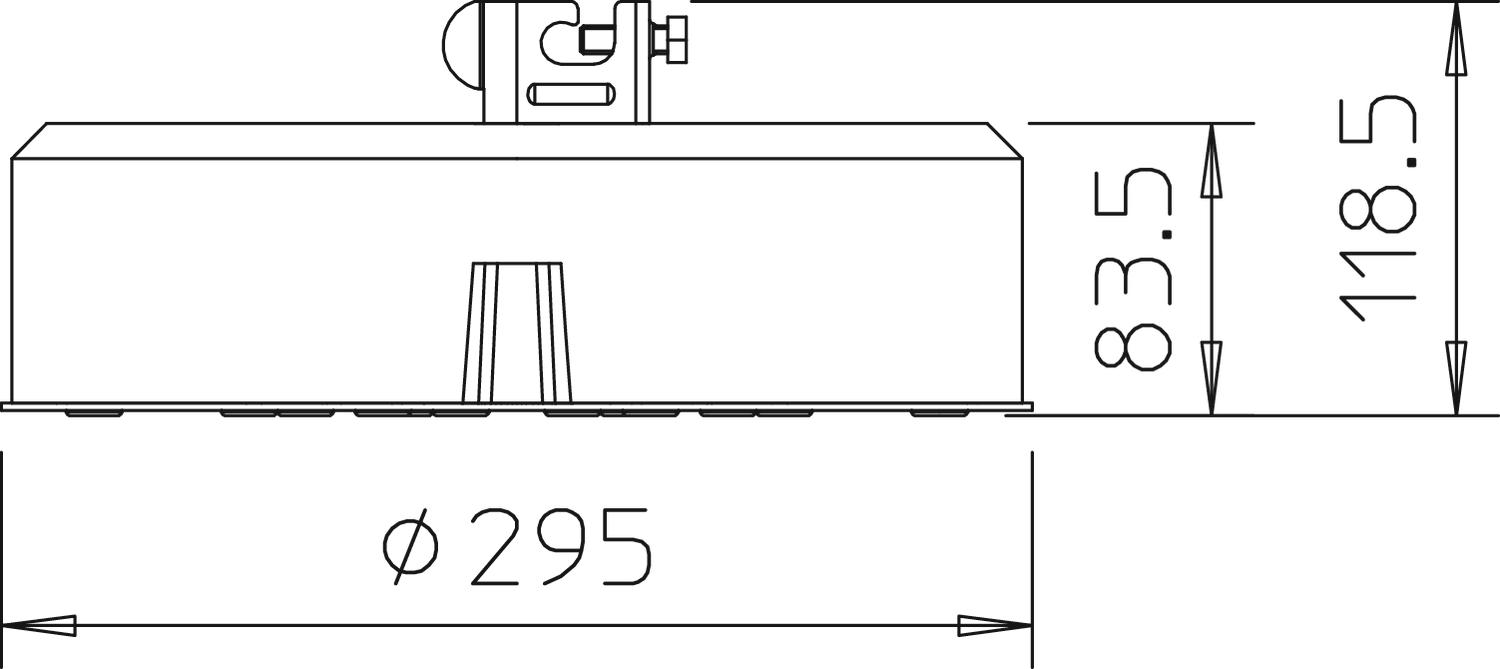

Air-termination rod holder Thread Diameter 295 mm Dimension 10kg Fit Rd 8 mm Material Concrete Nominal size Ø 295 mm Tapered no Version for Base Weight 10 kg - All types
- Downloads
-
Data sheet F-FIX-10 / 5403103 , 0.24MB , pdfREACH Declaration of conformity F-FIX-10 / 5403103 , 0.12MB , pdfRoHS Declaration of conformity F-FIX-10 / 5403103 , 0.12MB , pdfMounting instructions Mounting instructions, FangFix , 0.04MB , pdf
