- Product description
-
Product description

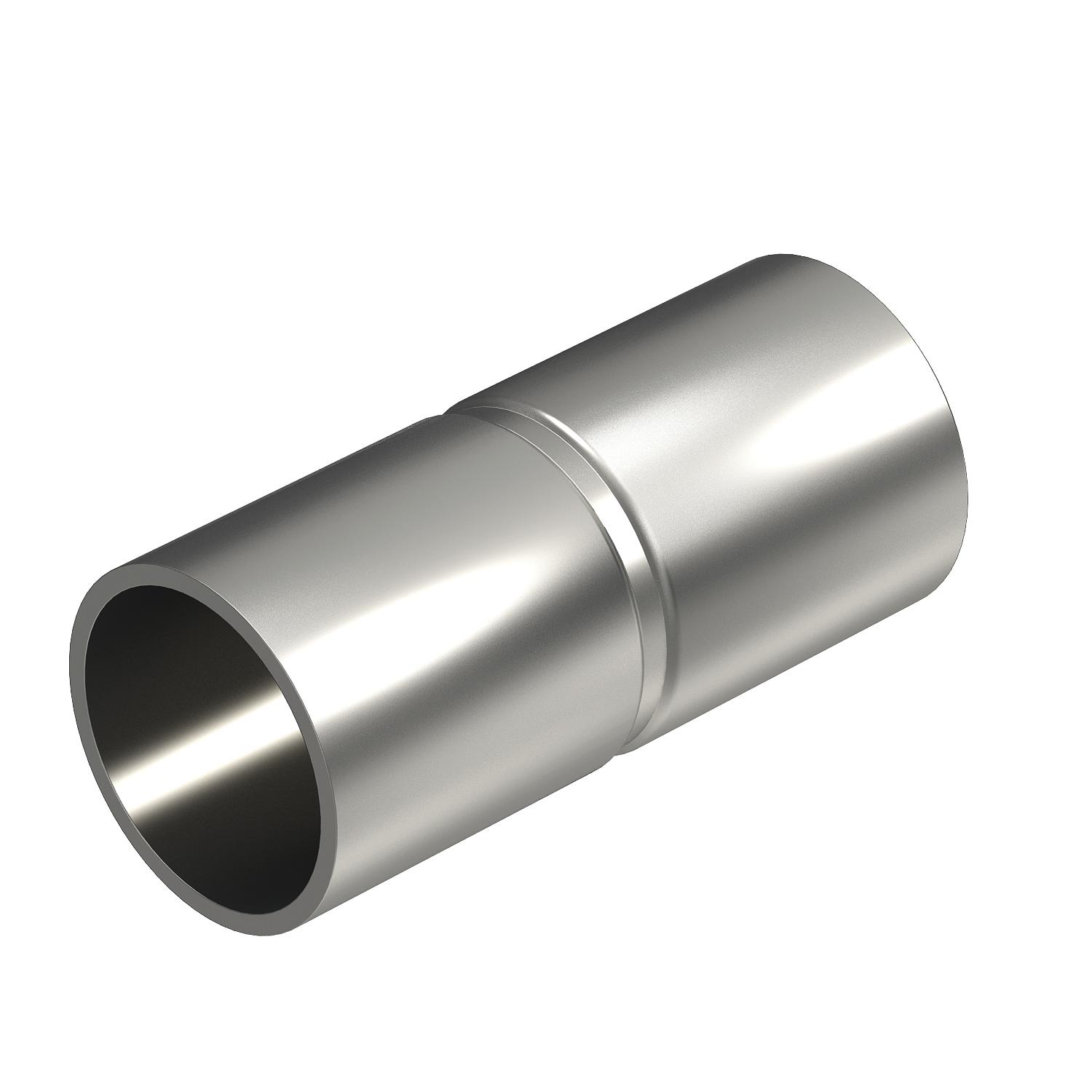

Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
- Technical data
-
Technical data
Brushed surface yes Dimension Ø50mm Dimension D 52,8 mm Dimension d 50,2 mm Dimension L 100 mm Dimension l 50 mm Dimension m (mm) M50 Dimension t 1,3 mm for pipe diameter 50 mm Halogen-free yes Length 100 mm Material Stainless steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 50 Surface Bright, treated Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV50W A4 / 2046775 , 0.25MB , pdfDeclaration of conformity SV50W A4 / 2046775 , 0.05MB , pdfREACH Declaration of conformity SV50W A4 / 2046775 , 0.12MB , pdfRoHS Declaration of conformity SV50W A4 / 2046775 , 0.12MB , pdf
