Stainless steel sleeve V4A
Item no. 2046774 | EAN 4012195924302
- Product description
-

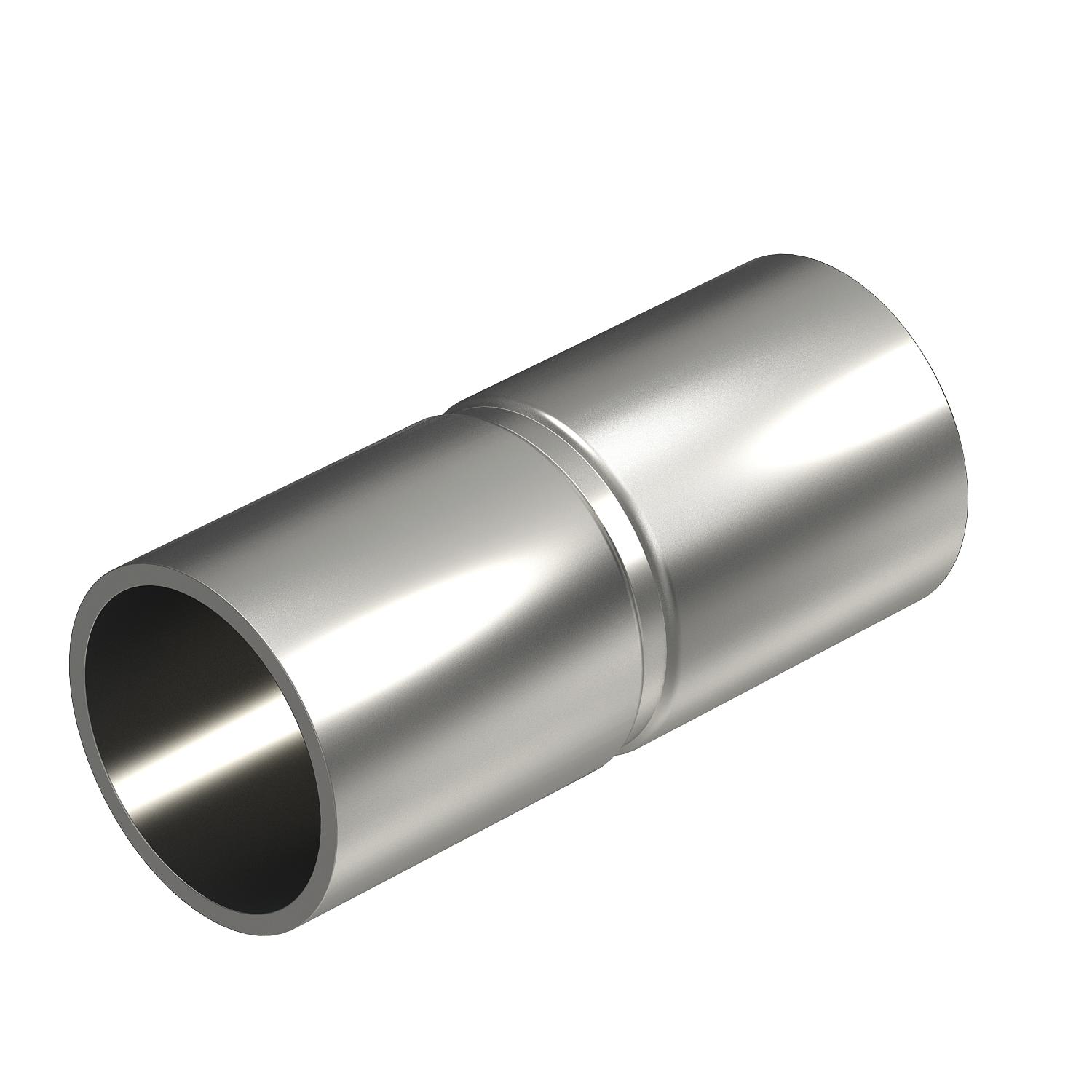

Product descriptionAccessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
-
- Technical data
-
Technical data
Brushed surface yes Dimension Ø40mm Dimension D 42,7 mm Dimension d 40,2 mm Dimension L 80 mm Dimension l 40 mm Dimension m (mm) M40 Dimension t 1,25 mm for pipe diameter 40 mm Halogen-free yes Length 80 mm Material Stainless steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Size 40 Surface Bright, treated Two-part no Version for Connector With inspection opening and lid no - All types
- Downloads
-
Data sheet SV40W A4 / 2046774 , 0.20MB , pdfEU declaration of conformity SV40W A4 / 2046774 , 0.05MB , pdfREACH Declaration of conformity SV40W A4 / 2046774 , 0.12MB , pdfRoHS Declaration of conformity SV40W A4 / 2046774 , 0.12MB , pdf
