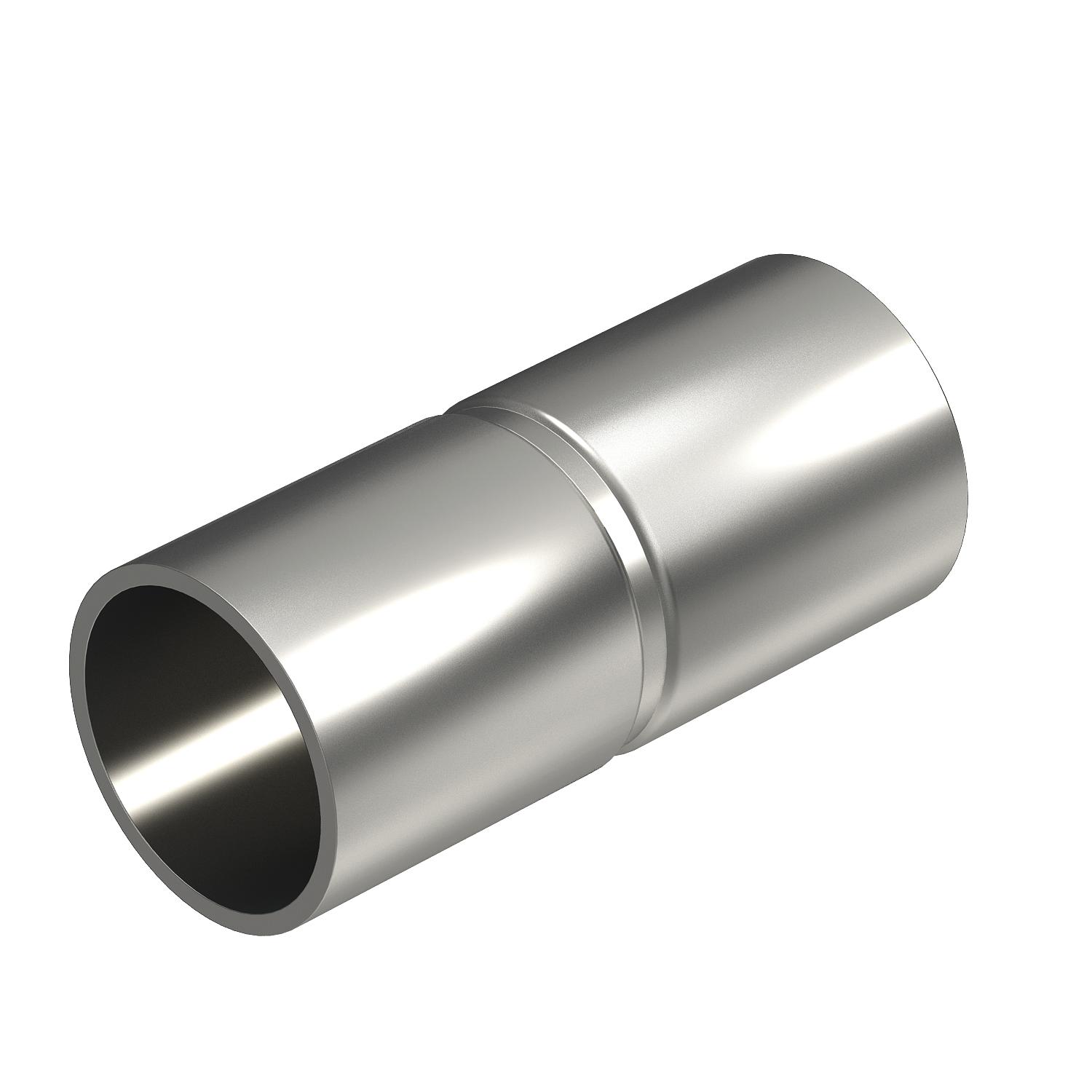

Stainless steel sleeve V4A

Item no. 2046771 | EAN 4012195924258

Product description
Product description
Accessory part: plug-in sleeve for the connections between electrical installation pipes. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

Brushed surface yes
CO₂ Footprint (GWP) Cradle-to-Gate 0,019 kg CO₂e / 1 Piece

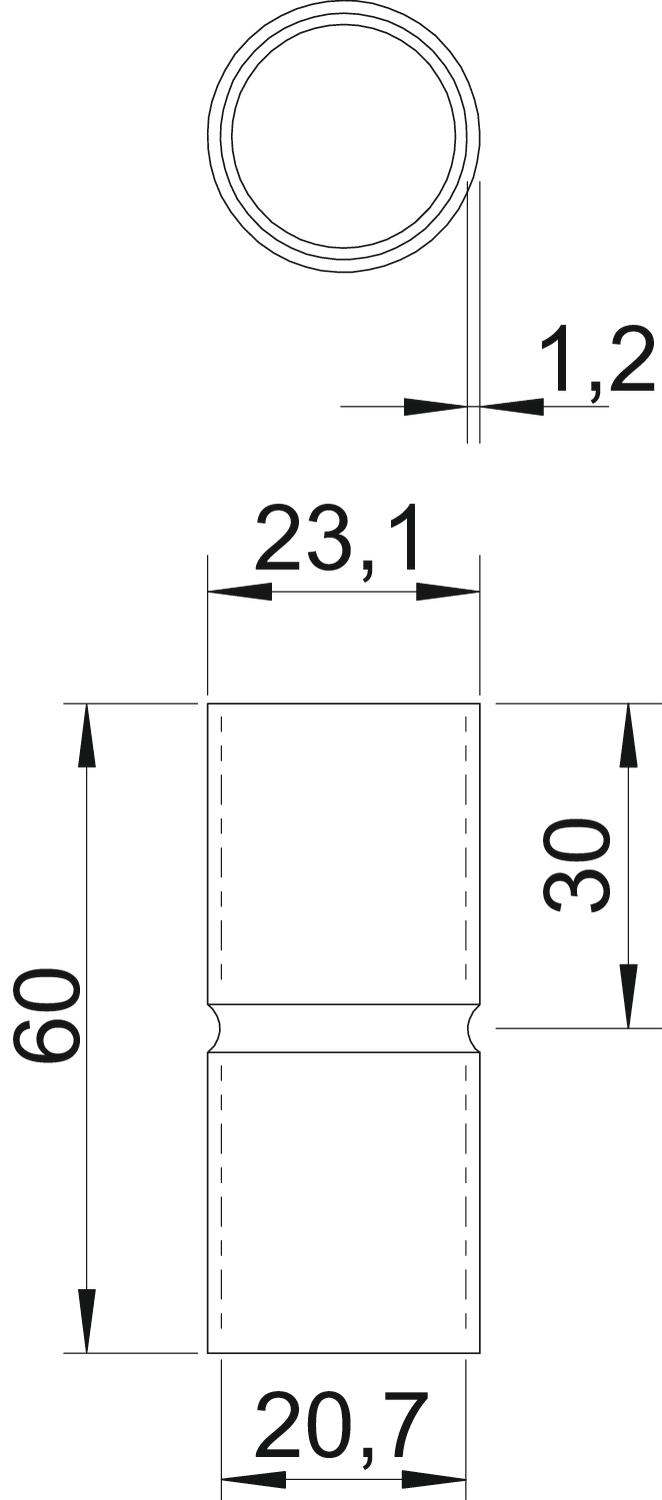

Dimension Ø20mm
Dimension d 20,2 mm
Dimension D 22,2 mm
Dimension L 60 mm
Dimension l 30 mm
Dimension m (mm) M20
Dimension t 1 mm
for pipe diameter 20 mm
Halogen-free yes
Length 60 mm
Material Stainless steel
Permitted temperature range, max. 400 °C
Permitted temperature range, min. -45 °C
Polished surface no
Size 20
Surface Bright, treated
Two-part no
Version for Connector
With inspection opening and lid no
All types

All types

Types Dimension D Dimension d Item no. Quantity SSU
SV16W A4 18.2 mm 16.2 mm 2046770
10 piece
SV20W A4 22.2 mm 20.2 mm 2046771
15 piece
SV25W A4 27.2 mm 25.2 mm 2046772
15 piece
SV32W A4 34.7 mm 32.2 mm 2046773
15 piece
SV40W A4 42.7 mm 40.2 mm 2046774
10 piece
SV50W A4 52.8 mm 50.2 mm 2046775
5 piece
SV63W A4 65.8 mm 63.2 mm 2046776
3 piece
