Stainless steel pipe bend, V4A

Item no. 2046765 | EAN 4012195924197

Product description

Product description

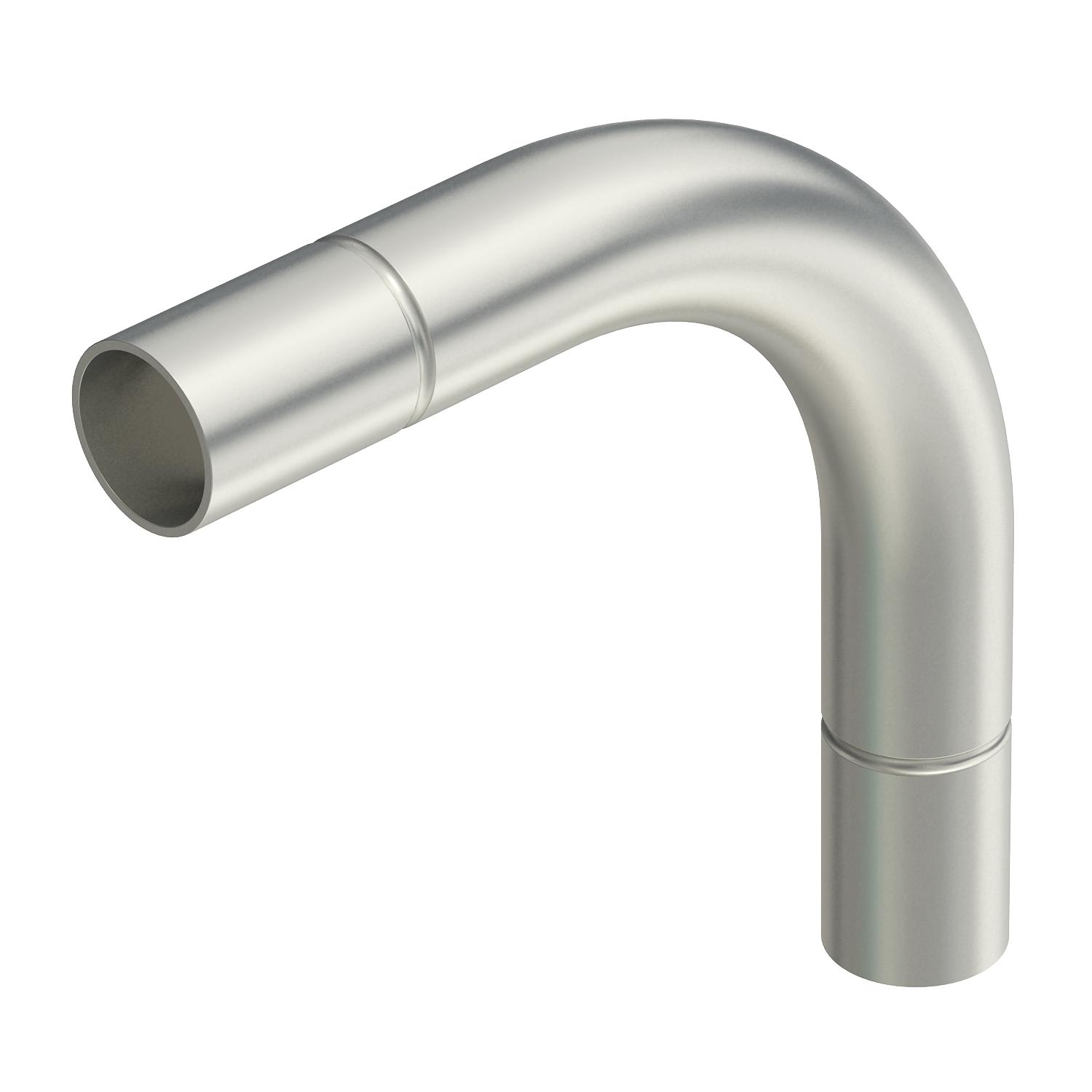

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

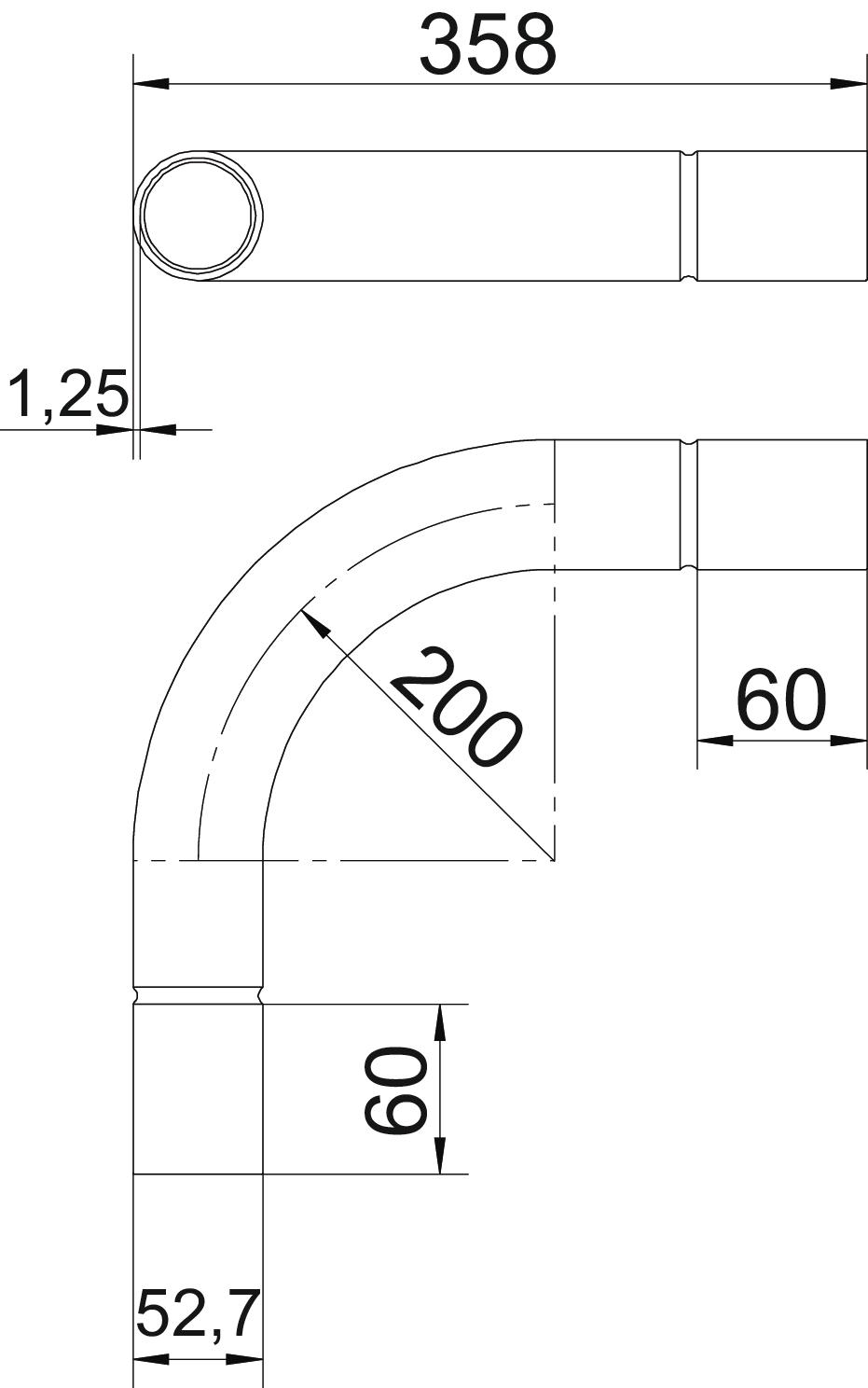

Angle of the bend 90 °
Brushed surface yes
Dimension Ø50mm
Dimension A 60 mm
Dimension B 358 mm
Dimension D 52,7 mm
Dimension d 50,2 mm
Dimension l 50 mm
Dimension m (mm) M50
Dimension R 200 mm
Dimension t 1,25 mm
Flexible no
For nominal pipe diameter 50 mm
Halogen-free no
Material Stainless steel
Permitted temperature range, max. 400 °C
Permitted temperature range, min. -45 °C
Polished surface no
Surface Bright, treated
Two-part no
Version for Connector
With inspection opening and lid no
With sleeve yes
All types

All types

Types For nominal pipe diameter Item no. Quantity SSU
SB16W A4 16 mm 2046760
5 piece
SB20W A4 20 mm 2046761
10 piece
SB25W A4 25 mm 2046762
10 piece
SB32W A4 32 mm 2046763
10 piece
SB40W A4 40 mm 2046764
5 piece
SB50W A4 50 mm 2046765
5 piece
SB63W A4 63 mm 2046766
3 piece
