- Product description
-

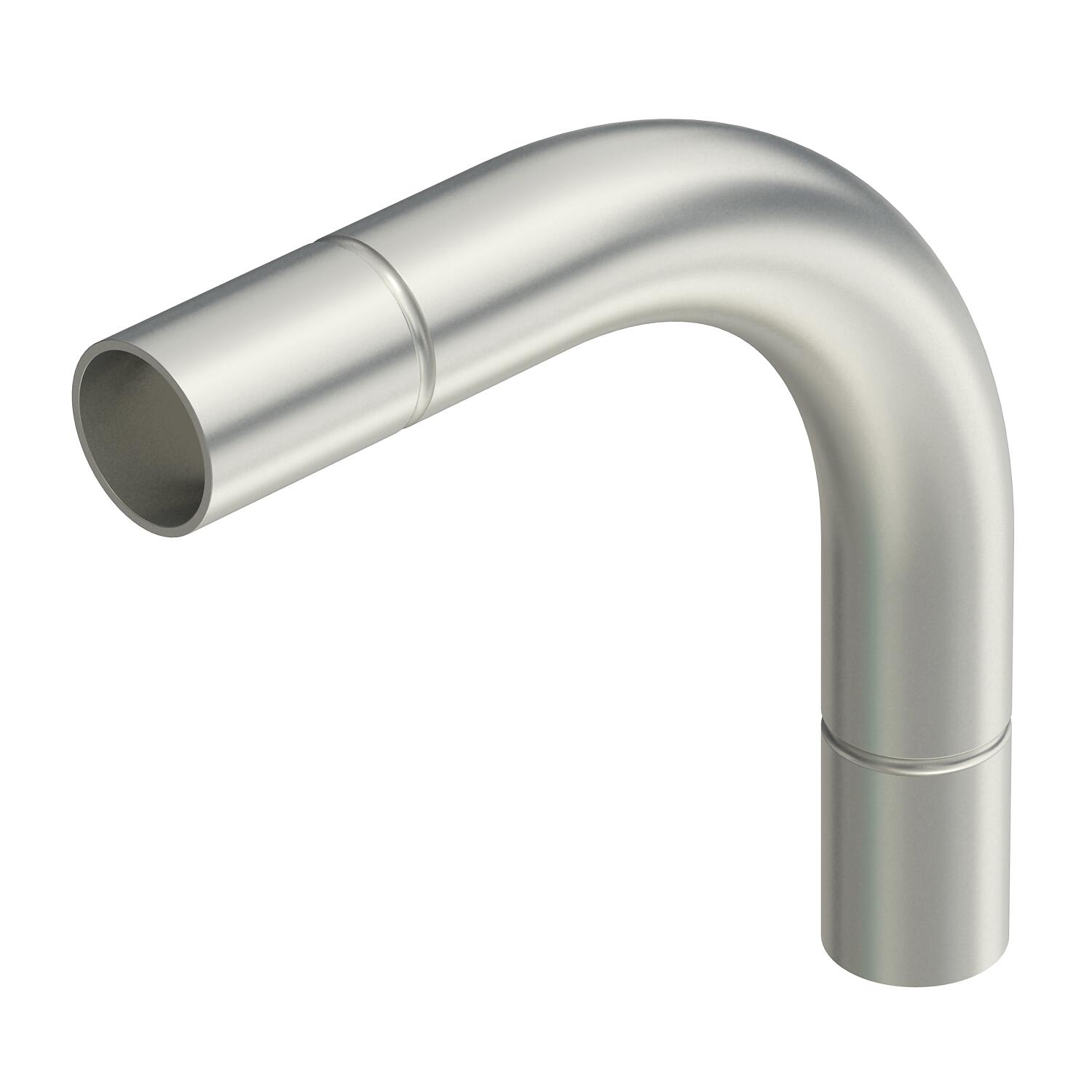

Product description90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
- Technical data
-
Technical data

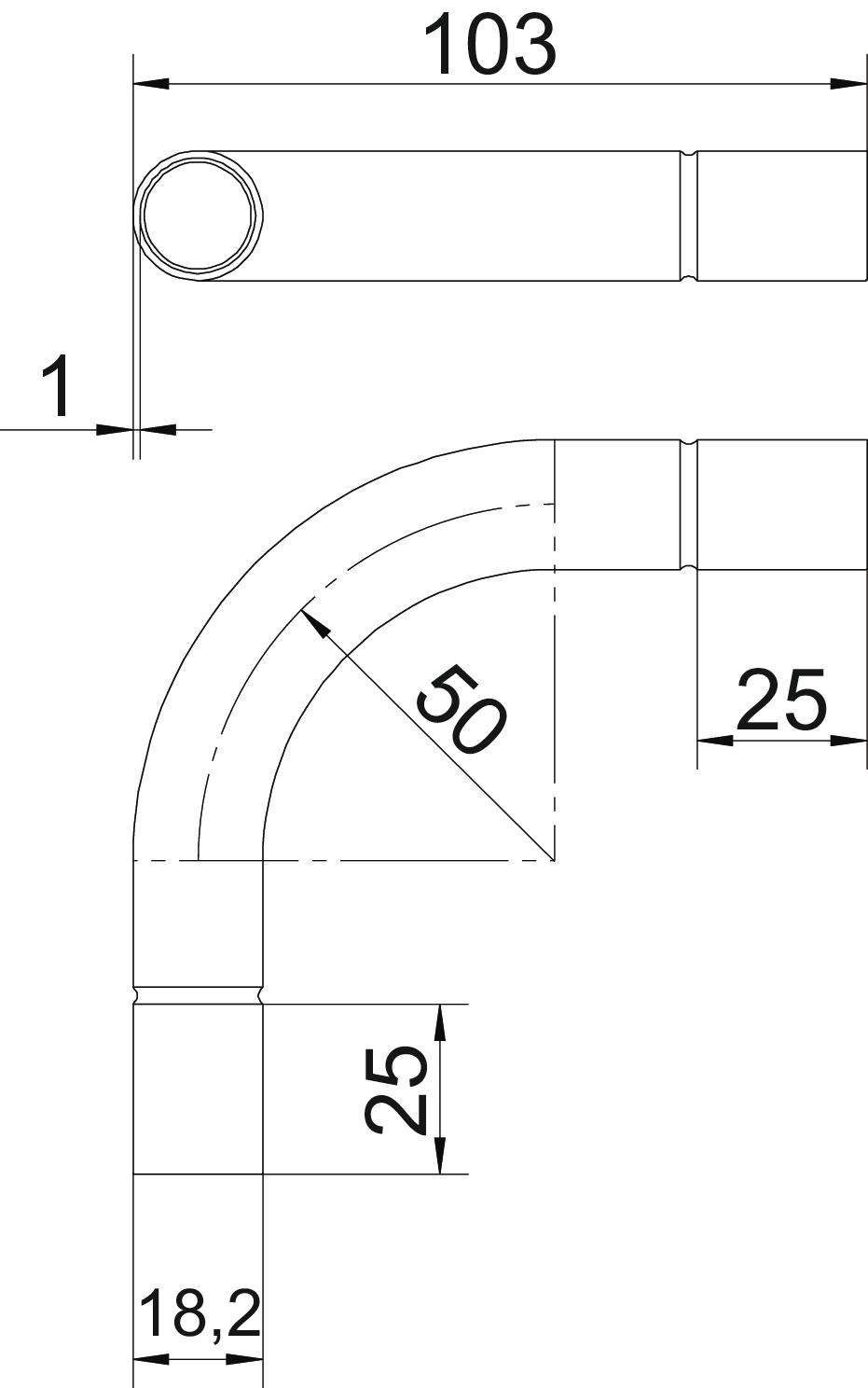

Angle of the bend 90 ° Brushed surface yes Dimension Ø16mm Dimension A 25 mm Dimension B 103 mm Dimension D 18,2 mm Dimension d 16,2 mm Dimension l 25 mm Dimension m (mm) M16 Dimension R 50 mm Dimension t 1 mm Flexible no For nominal pipe diameter 16 mm Halogen-free no Material Stainless steel Permitted temperature range, max. 400 °C Permitted temperature range, min. -45 °C Polished surface no Surface Bright, treated Two-part no Version for Connector With inspection opening and lid no With sleeve yes - All types
- Downloads
-
Data sheet SB16W A4 / 2046760 , 0.24MB , pdfEU declaration of conformity SB16W A4 / 2046760 , 0.05MB , pdfREACH Declaration of conformity SB16W A4 / 2046760 , 0.12MB , pdfRoHS Declaration of conformity SB16W A4 / 2046760 , 0.12MB , pdf
