Sprung cover, 70 mm
Item no. 2003227 | EAN 4012195024255
- Product description
-
Product description

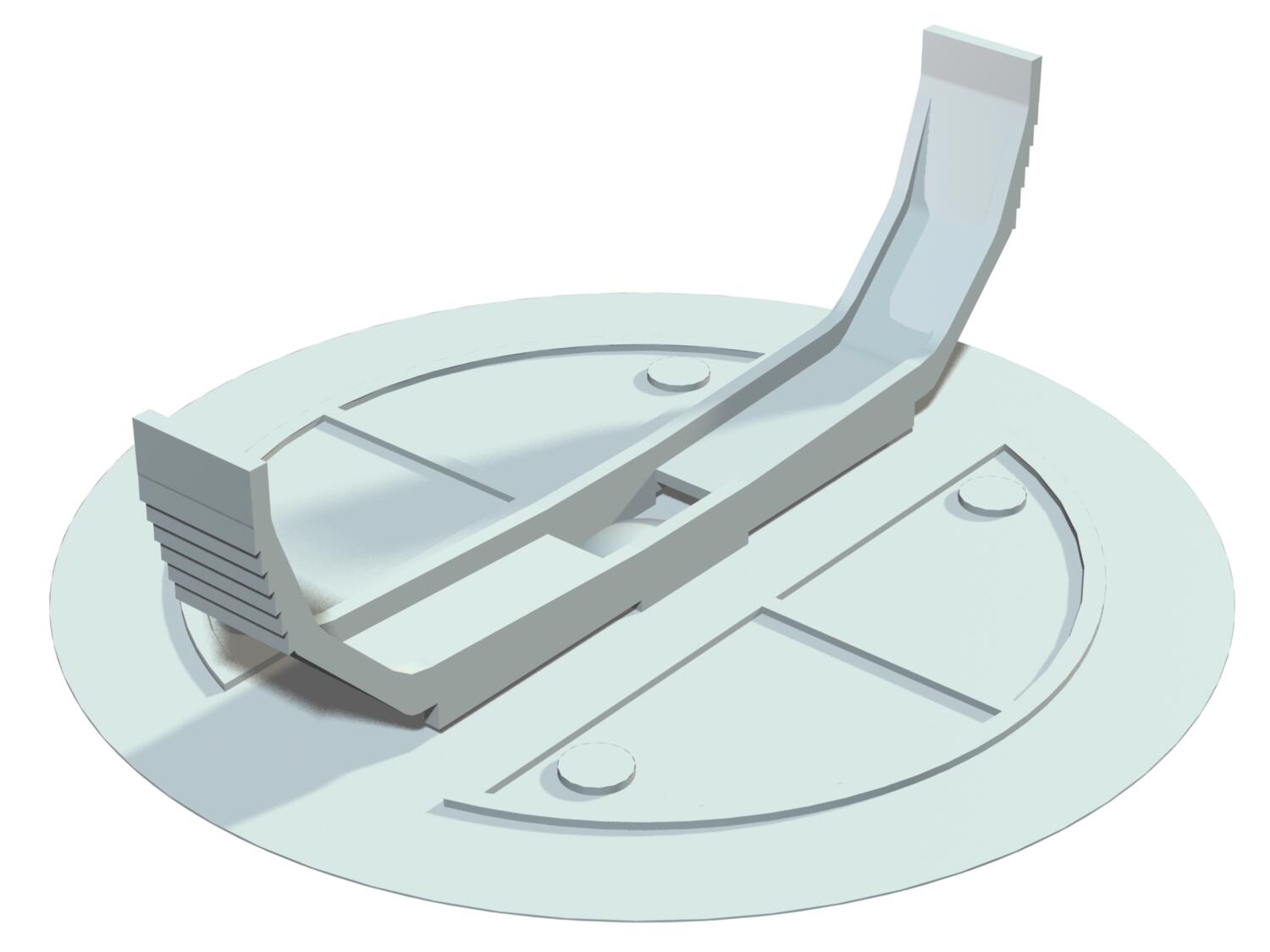

Sprung cover with centrally moulded, elastic spreading spring, for sockets with Ø 70 mm, cover edge is flush, surface is roughened.
-
- Technical data
-
Technical data
Colour White Diameter 70 mm Dimension Ø84mm Fastening type Spring cover Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C Halogen-free yes Material Polystyrene Sealable no Shape Round With bolts no Dimensions
Height 1 mm - All types
- Downloads
-
Data sheet UV 70 FD / 2003227 , 0.25MB , pdf
