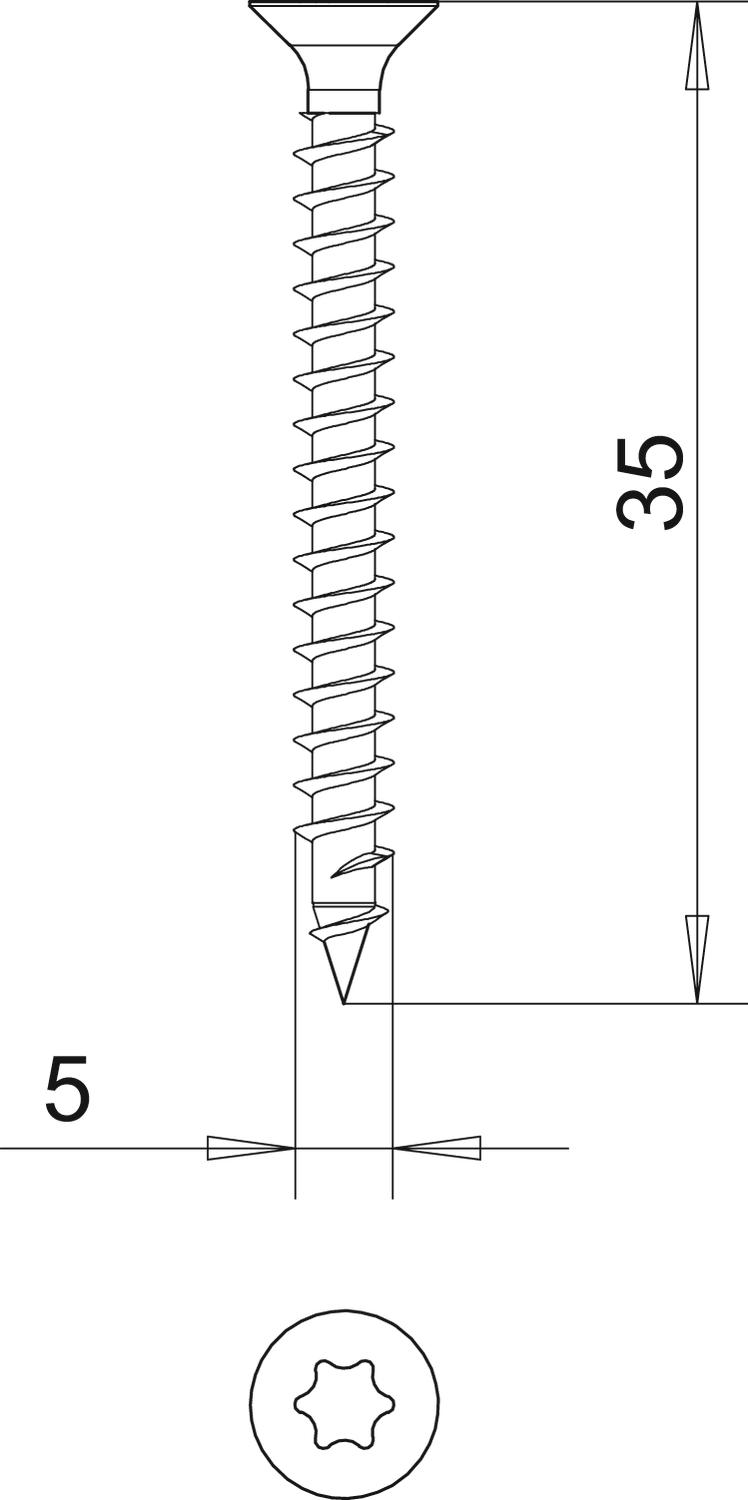

Sprint screw, with Torx 9.2 | Countersunk head | 5 | 35

Sprint screw, with Torx

Item no. 3198278 | EAN 4012195792253

Item no. / Types

Head diameter

Head shape	Countersunk head

Dimension D

Dimension L

Product description

Product description

Hardened steel, electrogalvanised and Hostaflon-coated. Countersunk head with T bit (six lobe head), sizes Ø 3 mm T10, Ø 3.5 mm T15, Ø 4 and 4.5 mm T20, Ø 5 mm T25.

The use of Sprint screws leads to considerably reduced screw-in times compared with standard screws. This noticeable advantage comes from the point with the first thread, which leads on to the double thread beyond.

Areas of use: wood, chipboard, Rigips panels, plastic anchors.

Technical data

Technical data

Dimension	5x35mm
Dimension D	5 mm
Dimension L	35 mm
Hardened	yes
Head diameter	9,2 mm

Head shape	Countersunk head
Length	35 mm
Material	Steel
Screw system	Torx
Surface	Electrogalvanized

All types

All types

Types	Head diameter	Head shape	Dimension D	Dimension L	Item no.	Quantity	SSU
4759T 3.0x15	5.6 mm	Countersunk head	3 mm	15 mm	3198193	piece	200 piece
4759T 3.0x25	5.6 mm	Countersunk head	3 mm	25 mm	3198197	piece	200 piece
4759T 3.0x30	5.6 mm	Countersunk head	3 mm	30 mm	3198199	piece	200 piece
4759T 3.5x15	6.5 mm	Countersunk head	3.5 mm	15 mm	3198219	piece	200 piece
4759T 3.5x20	6.5 mm	Countersunk head	3.5 mm	20 mm	3198221	piece	200 piece
4759T 3.5x25	6.5 mm	Countersunk head	3.5 mm	25 mm	3198223	piece	200 piece
4759T 3.5x30	6.5 mm	Countersunk head	3.5 mm	30 mm	3198225	piece	200 piece
4759T 3.5x35	6.5 mm	Countersunk head	3.5 mm	35 mm	3198227	piece	200 piece
4759T 3.5x40	6.5 mm	Countersunk head	3.5 mm	40 mm	3198229	piece	200 piece
4759T 3.5x50	6.5 mm	Countersunk head	3.5 mm	50 mm	3198231	piece	200 piece
4759T 4.0x15	7.5 mm	Countersunk head	4 mm	15 mm	3198237	piece	200 piece
4759T 4.0x20	7.5 mm	Countersunk head	4 mm	20 mm	3198239	piece	200 piece
4759T 4.0x25	7.5 mm	Countersunk head	4 mm	25 mm	3198241	piece	200 piece
4759T 4.0x30	7.5 mm	Countersunk head	4 mm	30 mm	3198243	piece	200 piece
4759T 4.0x35	7.5 mm	Countersunk head	4 mm	35 mm	3198245	piece	200 piece
4759T 4.0x40	7.5 mm	Countersunk head	4 mm	40 mm	3198247	piece	200 piece
4759T 4.0x45	7.5 mm	Countersunk head	4 mm	45 mm	3198249	piece	200 piece
4759T 4.0x50	7.5 mm	Countersunk head	4 mm	50 mm	3198251	piece	200 piece
4759T 4.5x30	8.2 mm	Countersunk head	4.5 mm	30 mm	3198260	piece	200 piece
4759T 4.5x35	8.2 mm	Countersunk head	4.5 mm	35 mm	3198262	piece	200 piece
4759T 4.5x40	8.2 mm	Countersunk head	4.5 mm	40 mm	3198264	piece	200 piece
4759T 4.5x45	8.2 mm	Countersunk head	4.5 mm	45 mm	3198266	piece	200 piece
4759T 4.5x50	8.2 mm	Countersunk head	4.5 mm	50 mm	3198268	piece	200 piece
4759T 5.0x30	9.2 mm	Countersunk head	5 mm	30 mm	3198276	piece	200 piece
4759T 5.0x35	9.2 mm	Countersunk head	5 mm	35 mm	3198278	piece	200 piece
4759T 5.0x40	9.2 mm	Countersunk head	5 mm	40 mm	3198280	piece	200 piece
4759T 5.0x45	9.2 mm	Countersunk head	5 mm	45 mm	3198282	piece	200 piece
4759T 5.0x50	9.2 mm	Countersunk head	5 mm	50 mm	3198284	piece	200 piece
