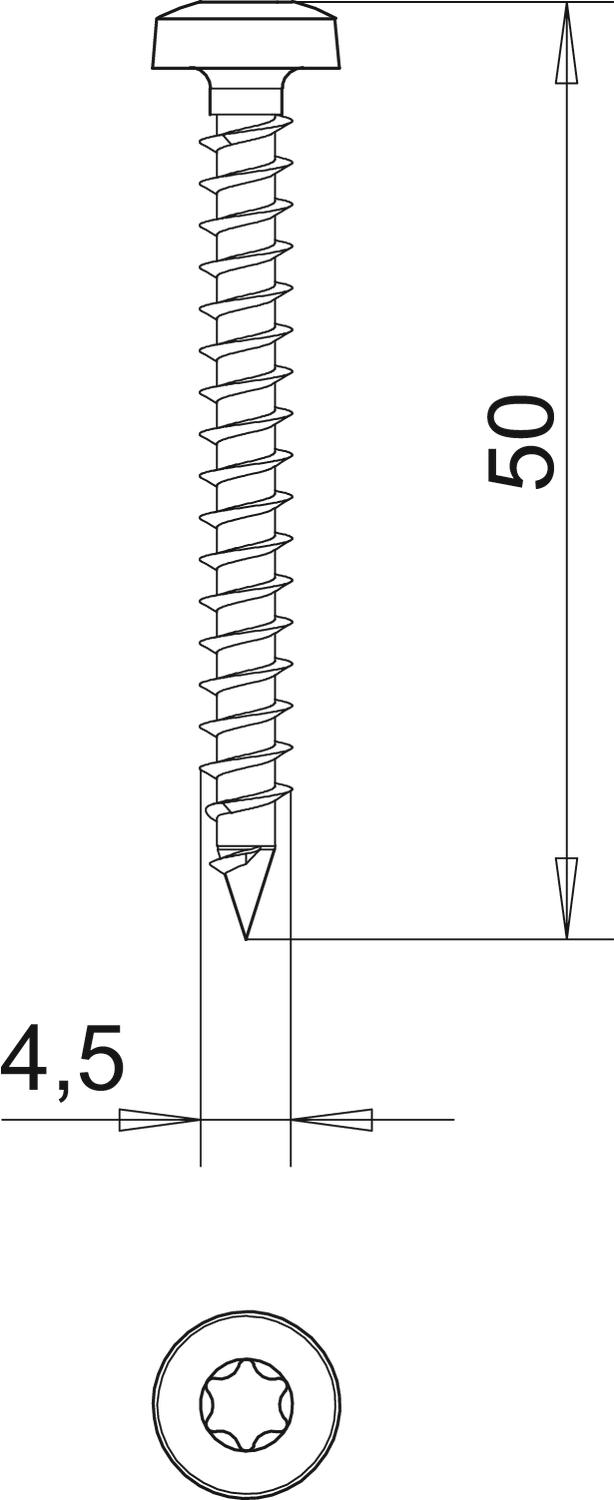

Sprint screw, with Torx 8.2 | Panhead | 4.5 | 50

Sprint screw, with Torx

Item no. 3198062 | EAN 4012195560357

Item no. / Types

Head diameter

Head shape	Panhead

Dimension D

Dimension L

Product description

Product description

Steel, hardened, electro-galvanised and yellow-passivated and with Hostaflon coating, panhead with T bit (hexalobular) of sizes Ø 3 mm T10, Ø 3.5 mm T15, Ø 4 and 4.5 mm T20, Ø 5 mm T25.
The use of SPRINT screws leads to considerably reduced screwing times compared with standard screws. This clear advantage is created by the biting tip with the first thread, which leads to the double thread.
Areas of use: wood, chipboard, plasterboard, plastic anchors.

Technical data

Technical data

Dimension	4,5x50mm
Dimension D	4,5 mm
Dimension L	50 mm
Hardened	yes
Head diameter	8,2 mm
Head shape	Panhead

Length	50 mm
Material	Steel
Screw system	Torx
Surface	Electrogalvanized
Thickness	4,5 mm
Two-compartment	yes

All types

All types

Types	Head diameter	Head shape	Dimension D	Dimension L	Item no.	Quantity	SSU
4758T 3.5x15	6.5 mm	Panhead	3.5 mm	15 mm	3198016	piece	200 piece
4758T 3.5x20	6.5 mm	Panhead	3.5 mm	20 mm	3198018	piece	200 piece
4758T 3.5x25	6.5 mm	Panhead	3.5 mm	25 mm	3198020	piece	200 piece
4758T 3.5x30	6.5 mm	Panhead	3.5 mm	30 mm	3198022	piece	200 piece
4758T 3.5x35	6.5 mm	Panhead	3.5 mm	35 mm	3198024	piece	200 piece
4758T 3.5x40	6.5 mm	Panhead	3.5 mm	40 mm	3198026	piece	200 piece
4758T 4.0x15	7.5 mm	Panhead	4 mm	15 mm	3198030	piece	200 piece
4758T 4.0x20	7.5 mm	Panhead	4 mm	20 mm	3198032	piece	200 piece
4758T 4.0x25	7.5 mm	Panhead	4 mm	25 mm	3198034	piece	200 piece
4758T 4.0x30	7.5 mm	Panhead	4 mm	30 mm	3198036	piece	200 piece
4758T 4.0x35	7.5 mm	Panhead	4 mm	35 mm	3198038	piece	200 piece
4758T 4.0x40	7.5 mm	Panhead	4 mm	40 mm	3198040	piece	200 piece
4758T 4.0x45	7.5 mm	Panhead	4 mm	45 mm	3198042	piece	200 piece
4758T 4.0x50	7.5 mm	Panhead	4 mm	50 mm	3198044	piece	200 piece
4758T 4.5x30	8.2 mm	Panhead	4.5 mm	30 mm	3198054	piece	200 piece
4758T 4.5x35	8.2 mm	Panhead	4.5 mm	35 mm	3198056	piece	200 piece
4758T 4.5x40	8.2 mm	Panhead	4.5 mm	40 mm	3198058	piece	200 piece
4758T 4.5x45	8.2 mm	Panhead	4.5 mm	45 mm	3198060	piece	200 piece
4758T 4.5x50	8.2 mm	Panhead	4.5 mm	50 mm	3198062	piece	200 piece
4758T 5.0x30	9.5 mm	Panhead	5 mm	30 mm	3198073	piece	200 piece
4758T 5.0x35	9.5 mm	Panhead	5 mm	35 mm	3198075	piece	200 piece
4758T 5.0x40	9.5 mm	Panhead	5 mm	40 mm	3198077	piece	200 piece
4758T 5.0x45	9.5 mm	Panhead	5 mm	45 mm	3198079	piece	200 piece
4758T 5.0x50	9.5 mm	Panhead	5 mm	50 mm	3198081	piece	200 piece
