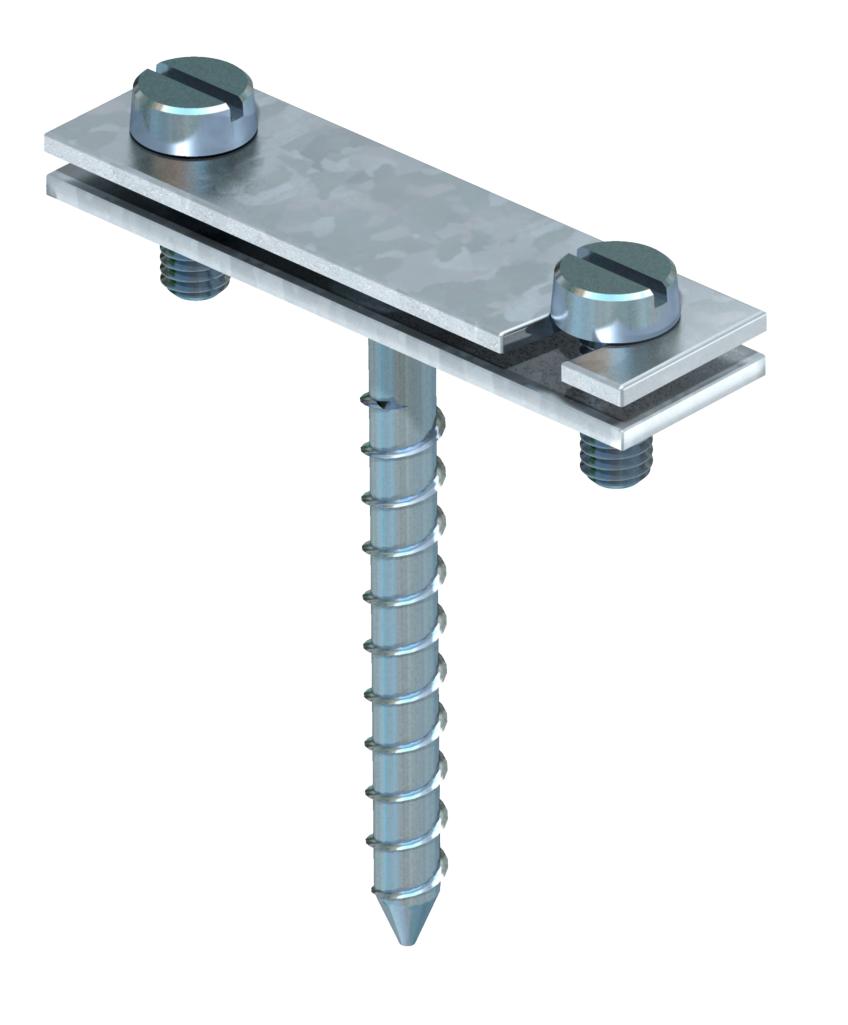

Spacer for flat conductor, with wood screw
Item no. 5030234 | EAN 4012195383659
- Product description
-
Product description• Fit: FL 30 and FL 40
• With 2 cylinder bolts M5 x 12 (G) and over-piece
• With wood screw
- Technical data
-
Technical data

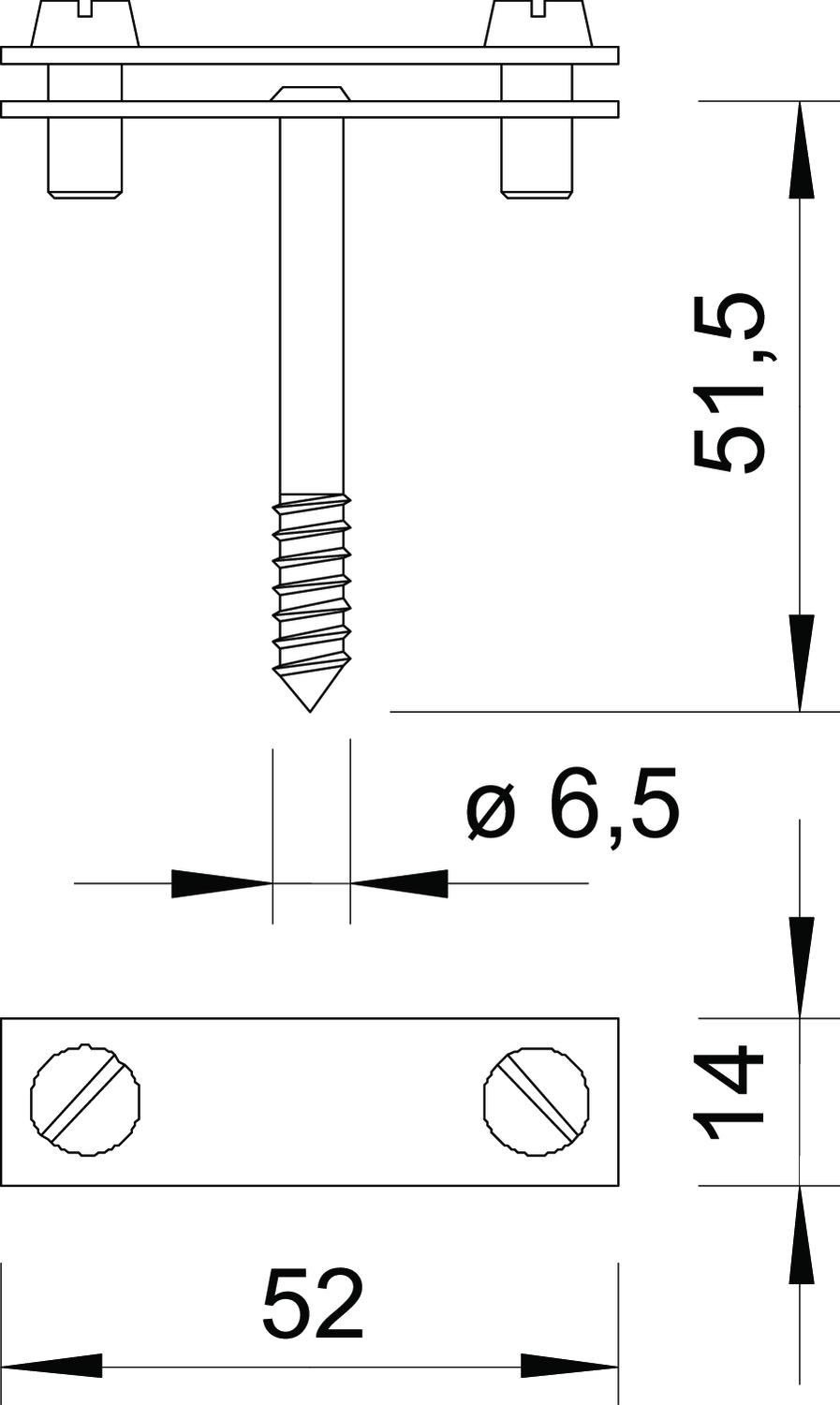

Dimension 30mm Dimension B 52 mm Fit max. FL30 mm Intermediate plate no Material Steel Surface Electrogalvanized - All types
- Downloads
-
Data sheet 708 30 HG / 5030234 , 0.15MB , pdfEU declaration of conformity 708 30 HG / 5030234 , 0.06MB , pdf
