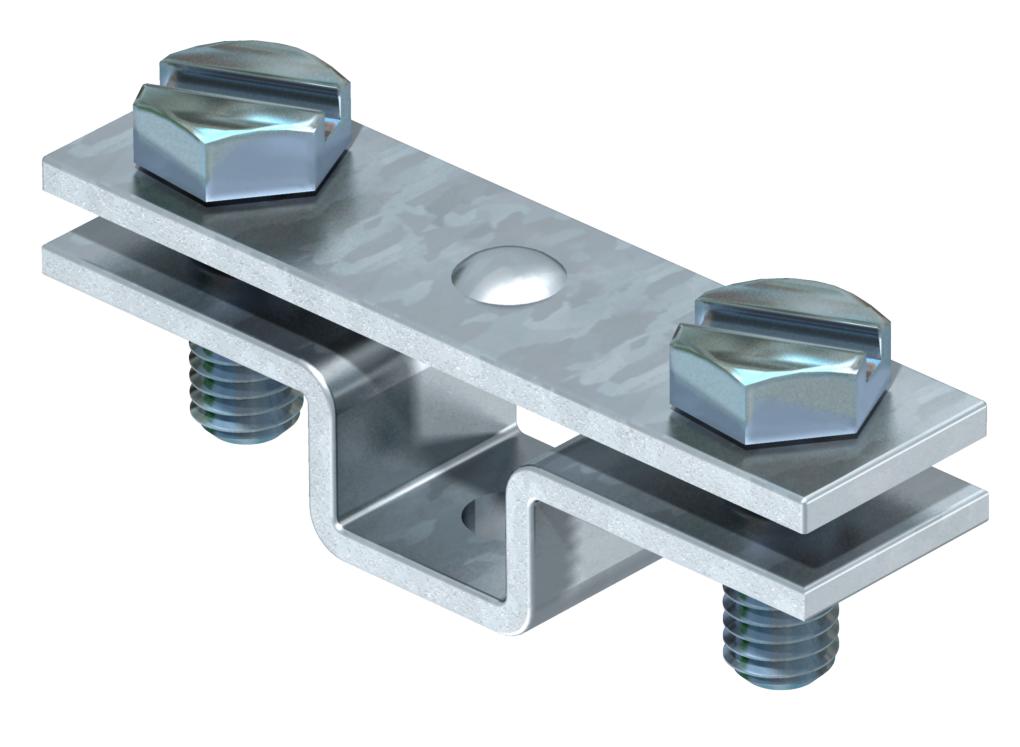

Spacer for flat conductor, with threaded connection M6
Item no. 5032245 | EAN 4012195384014
- Product description
-
Product description
• Fit: FL 30 and FL 40
• With attaching thread M6 and 2 hexagonal bolts M6 x 16 (F)
- Technical data
-
Technical data

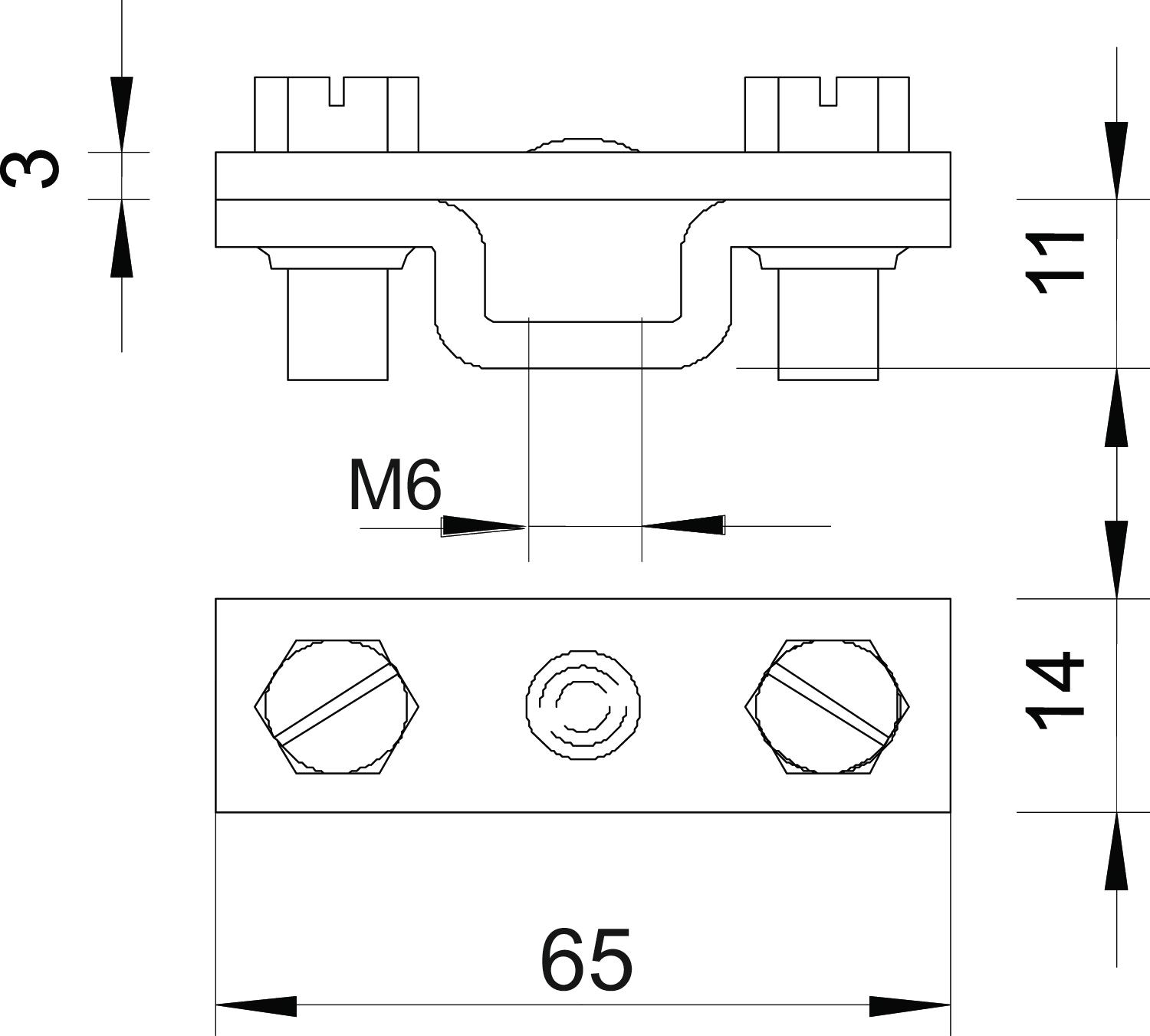

Dimension 40mm Fit max. FL40 mm Intermediate plate no Material Steel Surface Hot-dip galvanised Dimensions
Dimension B 65 mm - All types
- Downloads
-
Data sheet 831 40 M6 / 5032245 , 0.21MB , pdfDeclaration of conformity 831 40 M6 / 5032245 , 0.06MB , pdf
