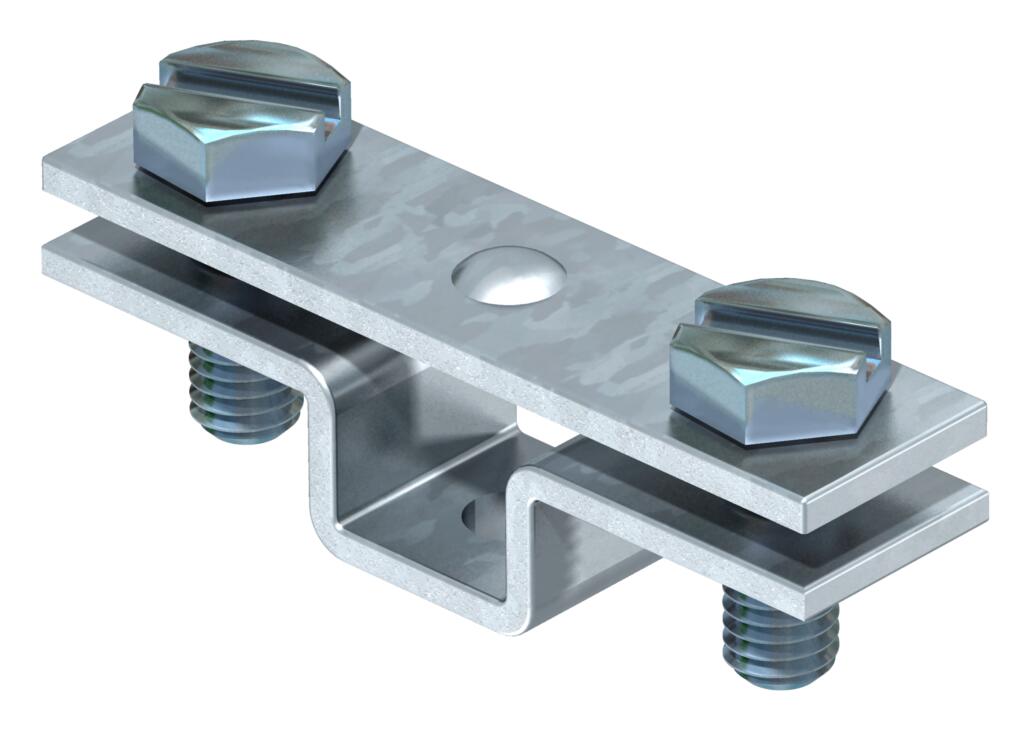

Spacer for flat conductor, with threaded connection M6

Item no. 5032237 | EAN 4012195383956

Product description

Product description

• Fit: FL 30 and FL 40
• With attaching thread M6 and 2 hexagonal bolts M6 x 16 (F)
Technical data

Technical data

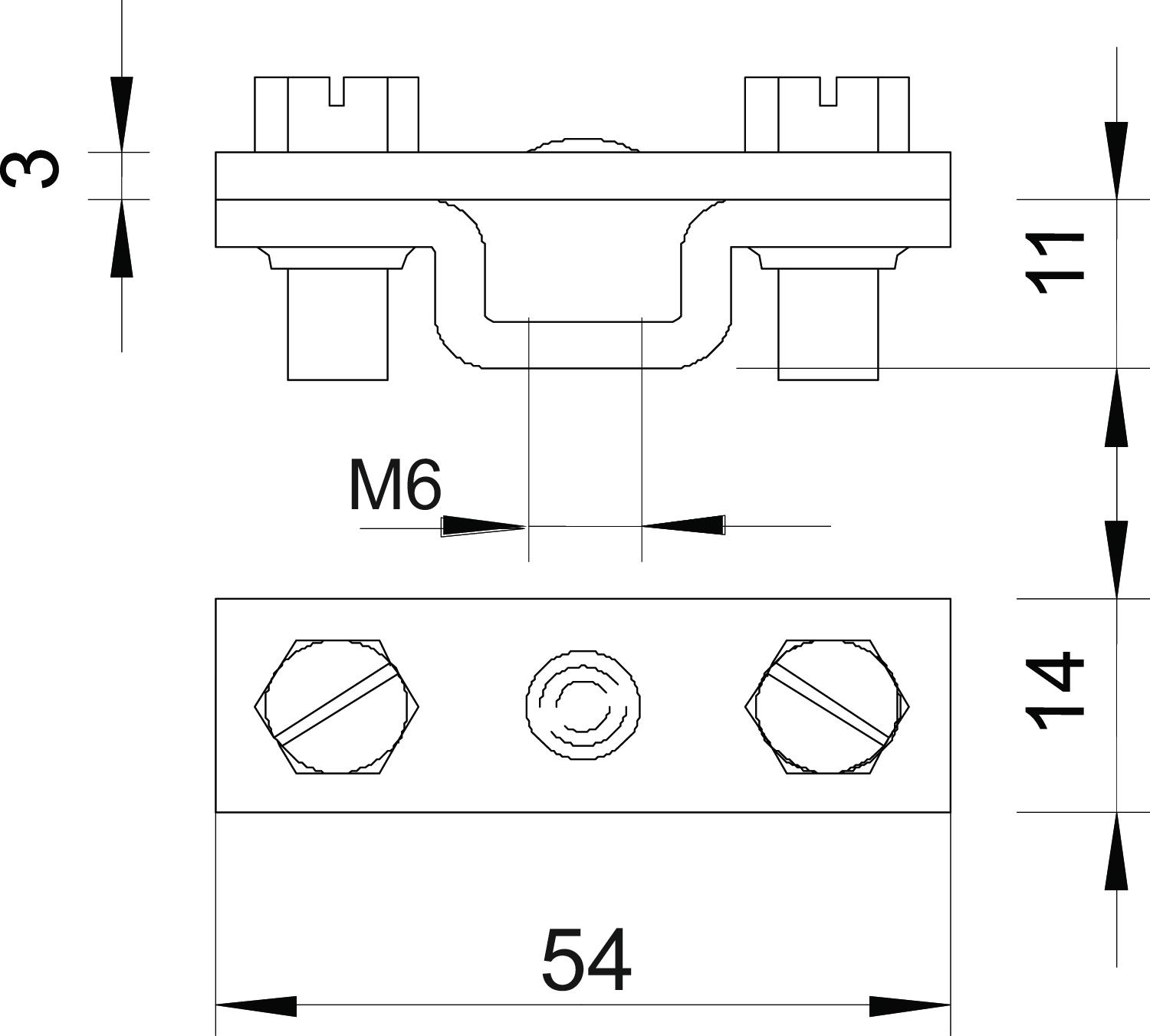

Dimension 30mm
Dimension B 54 mm
Fit max. FL30 mm
Intermediate plate no
Material Steel
Surface Hot-dip galvanised
All types

All types

Types Dimension B Fit Item no. Quantity SSU
831 30 M6 54 mm max. FL30 mm 5032237
25 piece
831 40 M6 65 mm max. FL40 mm 5032245
25 piece
Downloads

Download

Download

831 30 M6 / 5032237
