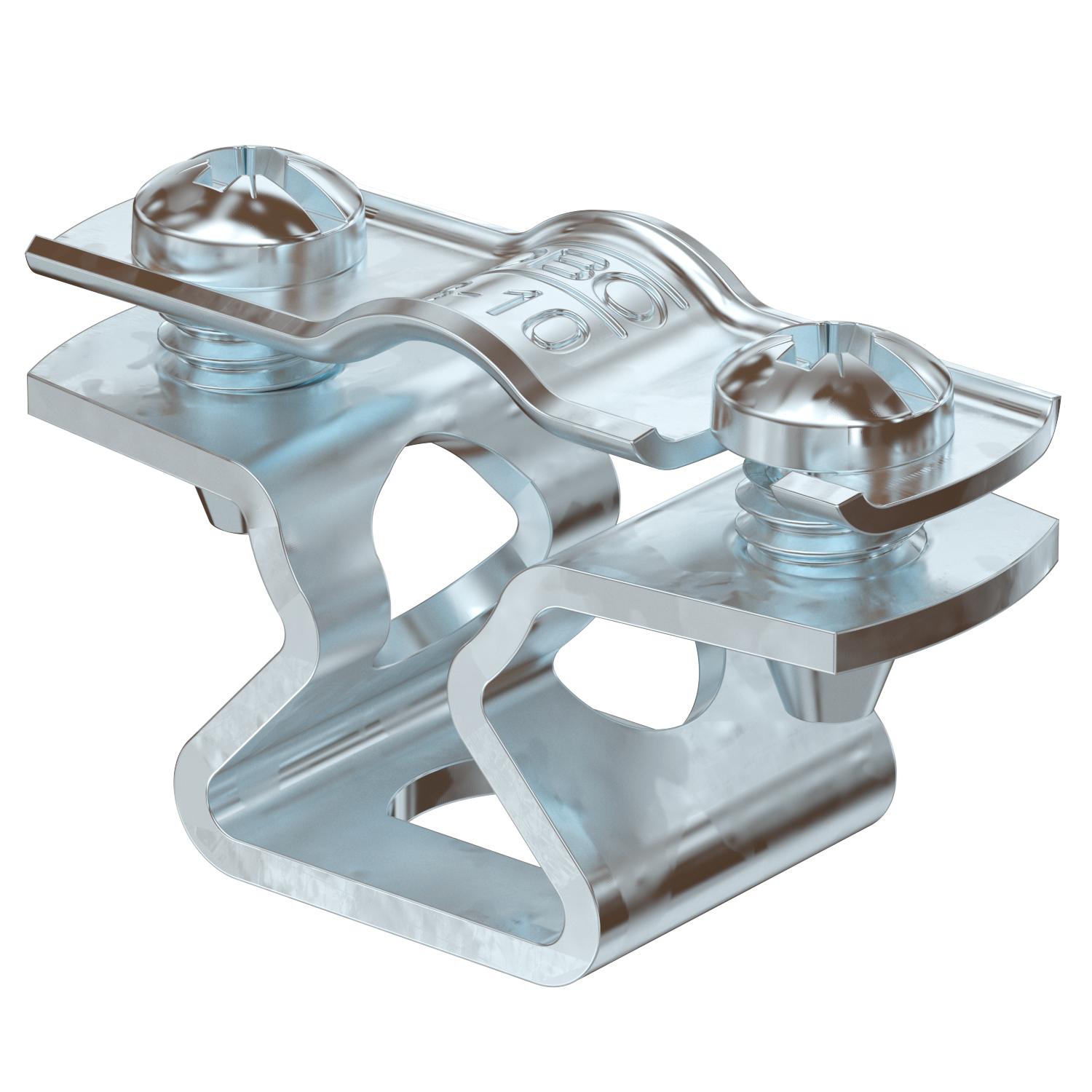

Spacer clip 733 FT

Item no. / Types

Material thickness	1.5 mm

Clamping range D, min.

Clamping range D, max.

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

Spacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.

Technical data

Dimension x	3 mm
Distance to the wall	yes
Fastening type	Screw hole
For diameter	8 - 10
Halogen-free	yes
Material	Steel
Material thickness	1,5 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
Surface	Hot-dip galvanised
UV-resistant	yes
Version for	Closed

All types

Types	Material thickness	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
ASL 733 10 FT	1.5 mm	8 mm	10 mm	Steel	Hot-dip galvanised	1362704	piece	25 piece
ASL 733 12 FT	1.5 mm	10 mm	12 mm	Steel	Hot-dip galvanised	1362706	piece	25 piece
ASL 733 14 FT	1.5 mm	12 mm	14 mm	Steel	Hot-dip galvanised	1362708	piece	25 piece
ASL 733 17 FT	1.5 mm	14 mm	17 mm	Steel	Hot-dip galvanised	1362712	piece	25 piece
ASL 733 20 FT	1.5 mm	17 mm	20 mm	Steel	Hot-dip galvanised	1362714	piece	25 piece
ASL 733 25 FT	1.5 mm	20 mm	25 mm	Steel	Hot-dip galvanised	1362718	piece	25 piece
ASL 733 30 FT	1.5 mm	25 mm	30 mm	Steel	Hot-dip galvanised	1362722	piece	20 piece
ASL 733 36 FT	1.5 mm	30 mm	36 mm	Steel	Hot-dip galvanised	1362726	piece	20 piece
ASL 733 44 FT	1.5 mm	36 mm	44 mm	Steel	Hot-dip galvanised	1362730	piece	20 piece
ASL 733 53 FT	1.5 mm	44 mm	53 mm	Steel	Hot-dip galvanised	1362734	piece	20 piece
ASL 733 63 FT	1.5 mm	53 mm	63 mm	Steel	Hot-dip galvanised	1362738	piece	20 piece
