Spacer clip 733 FT
Item no. 1362722 | EAN 4012196599943
- Product description
-

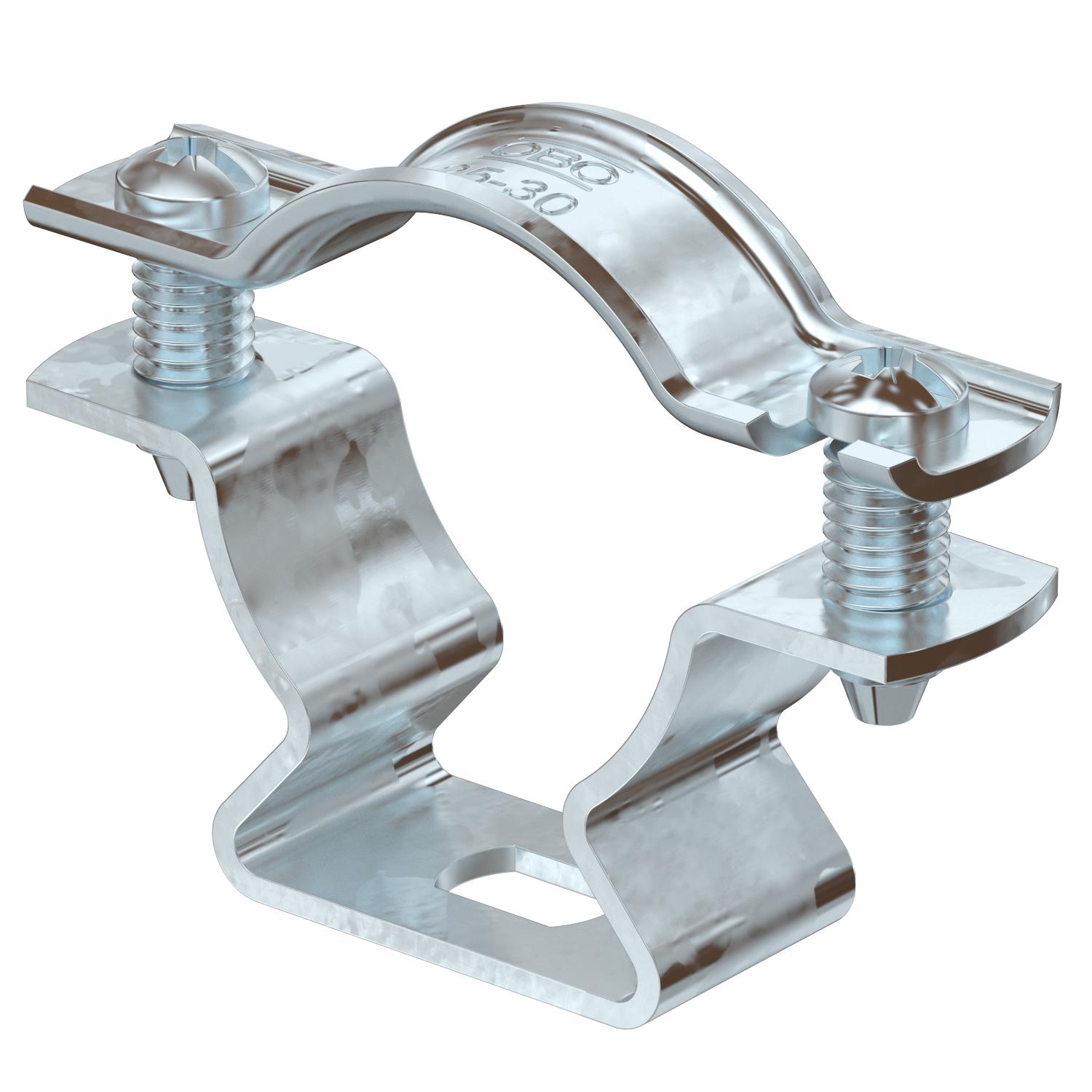

Product descriptionSpacer clip for the installation of pipes and cables on walls, ceilings and floors. With self-locking cover. Fastening via slot.
Approved for the maintenance of electrical function according to DIN 4102 Part 12, maintenance of electrical function classes E 30 to E 90.
-
- Technical data
-
Technical data

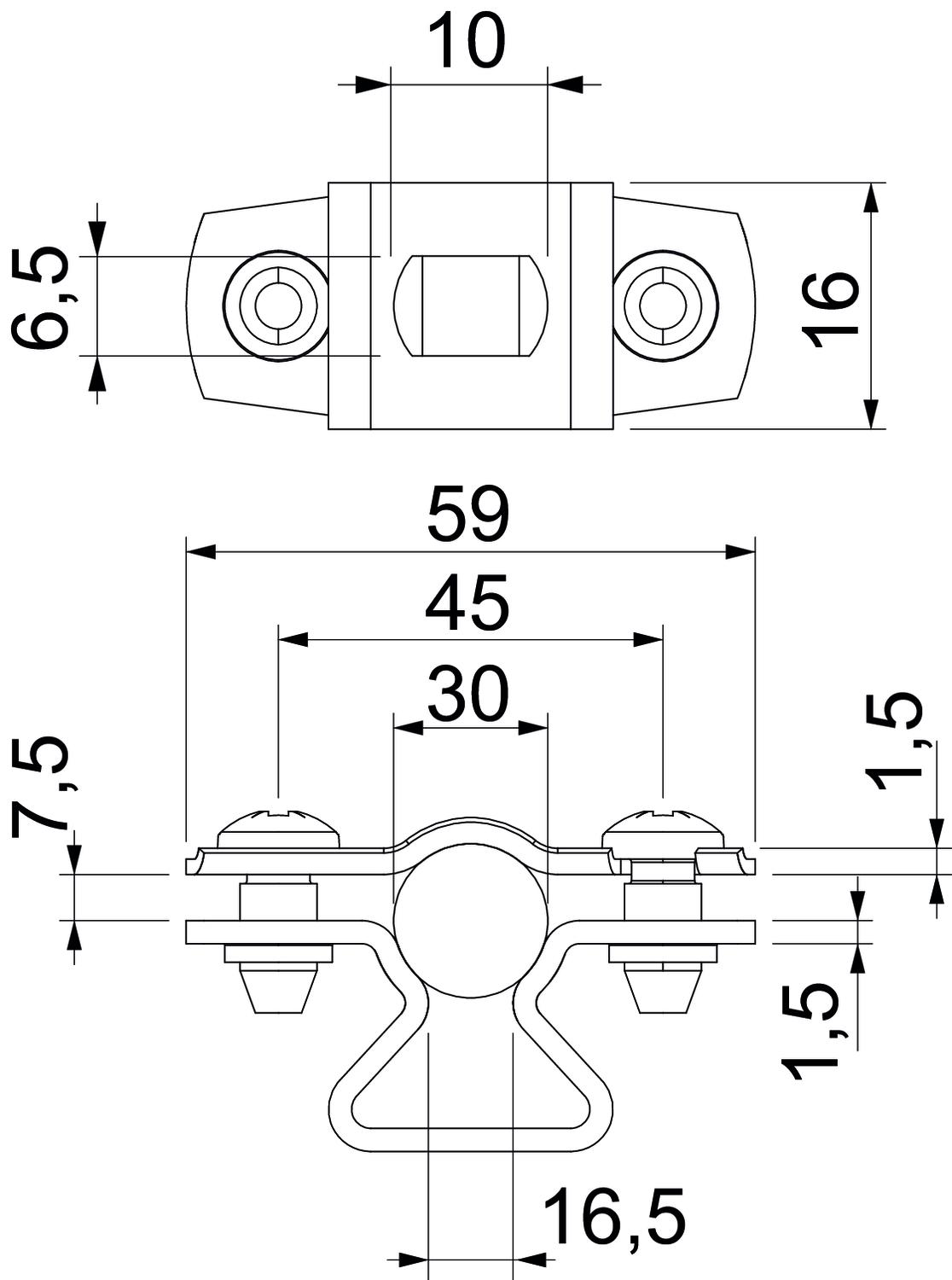

Clamping range D, max. 30 mm Clamping range D, min. 25 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,093 kg CO₂e / 1 Piece Dimension 25-30mm Dimension A 59 mm Dimension b 16 mm Dimension B 45 mm Dimension D 30 mm Dimension d max. 30 mm Dimension d min. 25 mm Dimension L 10 mm Dimension s 16,5 mm Dimension t1 (mm) 1,5 Dimension t2 (mm) 1,5 Dimension x 7,5 mm Distance to the wall yes Fastening type Screw hole For diameter 25 - 30 Halogen-free yes Material Steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area yes Surface Hot-dip galvanised UV-resistant yes Version for Closed - All types
-
All types
