Spacer

Item no. 2205097 | EAN 4012195044970

Item no. / Types	2205097 / 2033 D 15x3 G

Dimension h	3 mm

Product description

Product description

To increase the clamping height of pressure clips from 10 to 13 mm for large cable cross-sections.

Technical data

Technical data

Diameter	15 mm
Dimension	Ø15mmx3mm
Dimension d	6,4 mm
Dimension d min.	15 mm
Dimension h	3 mm
External diameter	15 mm
Faceted	no

Halogen-free	no
Hardened	no
Inner diameter	6,4 mm
Material	Steel
Material thickness	3 mm
Surface	Electrogalvanized

All types

All types

Types	Dimension h	Item no.	Quantity	SSU
2033 D 15x3 G	3 mm	2205097	piece	50 piece

Downloads

Data sheet 2033 D 15x3 G / 2205097 , 0.11MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 2033 D 15x3 G / 2205097 , 0.06MB , pdf

Download

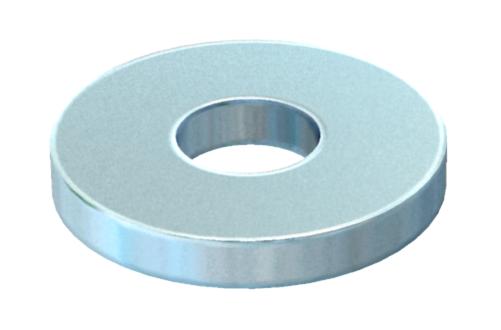

Product graphic 2033 D 15x3 G / 2205097, 12.59 kB, jpg

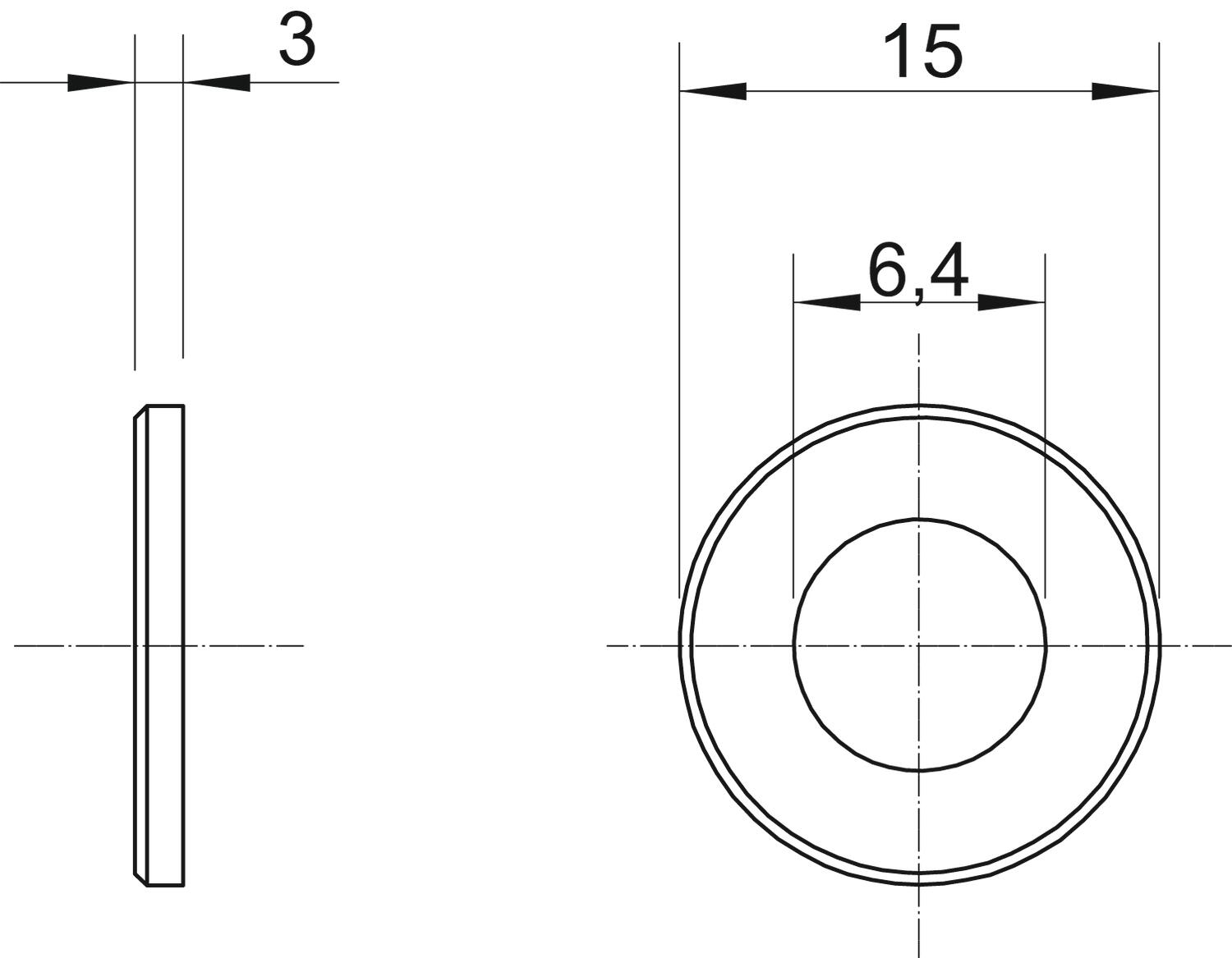

Scale drawing 2033 D 15x3 G / 2205097, 61.22 kB, jpg
