Slide nut ZL 43 | 21 | 12 | M8

morepic-1

morepic-2

Slide nut ZL

Item no. 1147160 | EAN 4012196489626

Item no. / Types

Length	43 mm

Width	21 mm

Height	12 mm

Thread

Product description

Product description

Slide nut for use with MS5030 profile rail

Technical data

Technical data

Dimension	M8
Height	12 mm
Length	43 mm
Material	Steel
Surface	Zinc slat

Thread	M8
Thread metric	8
Width	21 mm
With spring	no

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
MS50SN M6 ZL	43 mm	21 mm	12 mm	M6	1147156	piece	50 piece
MS50SN M8 ZL	43 mm	21 mm	12 mm	M8	1147160	piece	50 piece
MS50SN M10 ZL	43 mm	21 mm	12 mm	M10	1147164	piece	50 piece
MS50SN M12 ZL	43 mm	21 mm	12 mm	M12	1147168	piece	50 piece

Downloads

Data sheet MS50SN M8 ZL / 1147160 , 0.16MB , pdf

Brochure Rail systems , 2.10MB , pdf

REACH Declaration of conformity MS50SN M8 ZL / 1147160 , 0.12MB , pdf

Download

RoHS Declaration of conformity MS50SN M8 ZL / 1147160 , 0.12MB , pdf

Download

Product graphic MS50SN M8 ZL / 1147160, 33.41 kB, jpg

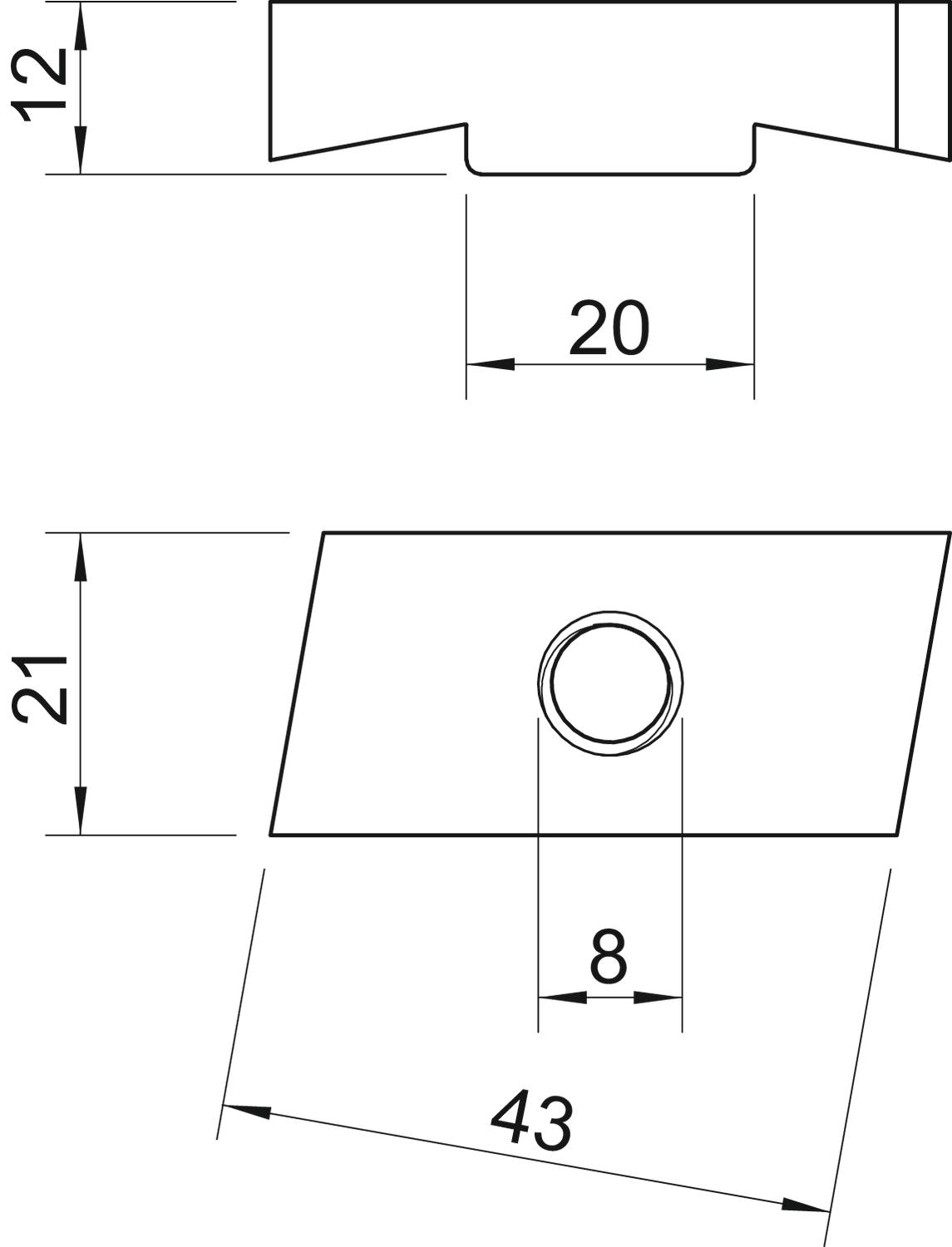

Scale drawing MS50SN M8 ZL / 1147160, 53.60 kB, jpg

MS50SN M8 ZL / 1147160
