Slide nut ZL 35 | 20 | 8 | M10
morepic-1 morepic-2

Slide nut ZL

Item no. 1147214 | EAN 4012196489879

35 mm
20 mm
Product description
Product description
Slide nut for use with MS4121 und MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm

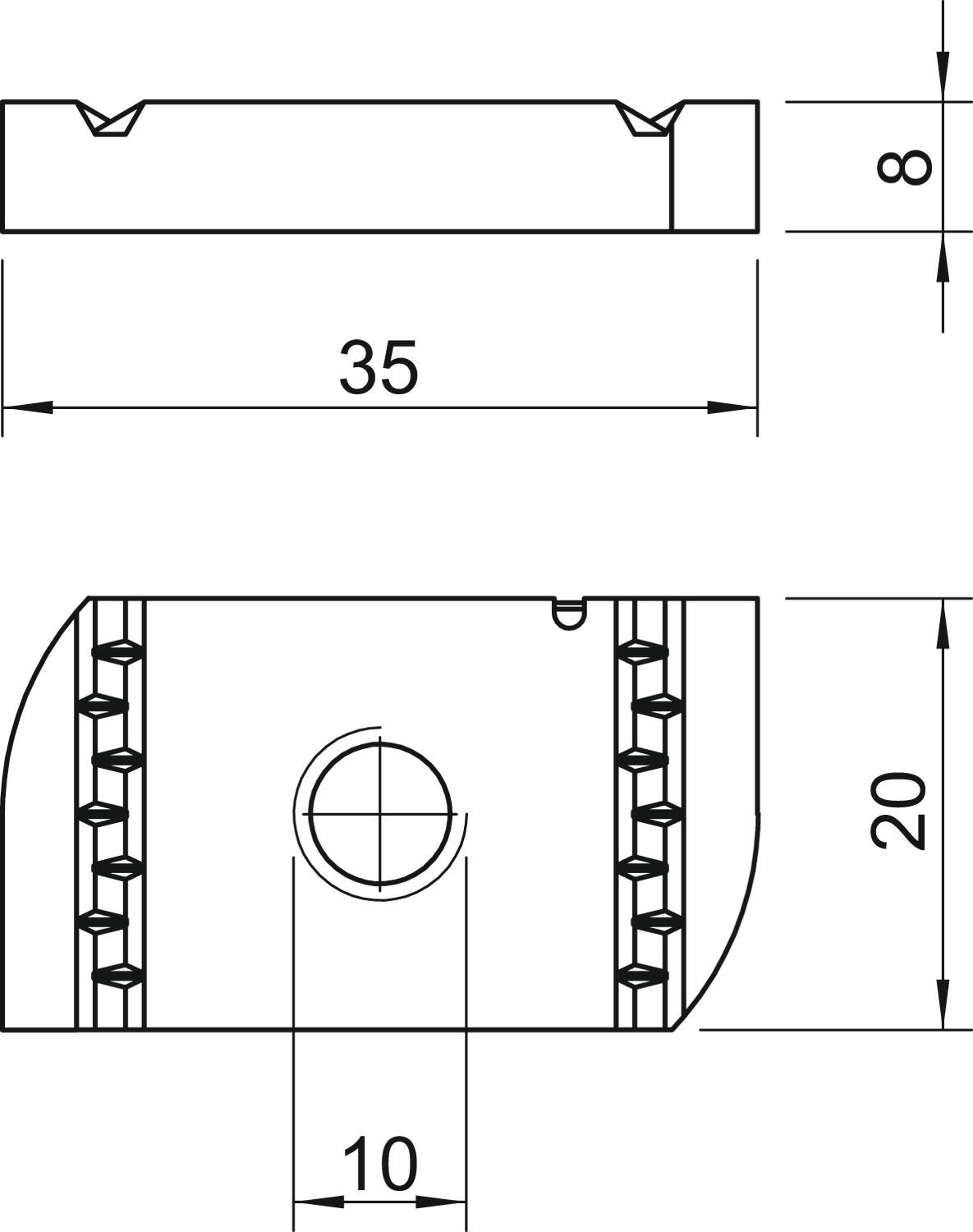

Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,002 kg CO₂e / 1 Piece
Dimension M10
Height 8 mm
Length 35 mm
Material Steel
Surface Zinc slat
Thread M10
Thread metric 10
Width 20 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41SN M6 ZL 35 mm 20 mm 6 mm M6 1147206
50 piece
MS41SN M8 ZL 35 mm 20 mm 6 mm M8 1147210
50 piece
MS41SN M10 ZL 35 mm 20 mm 8 mm M10 1147214
50 piece
MS41SN M12 ZL 35 mm 20 mm 9.5 mm M12 1147218
50 piece
