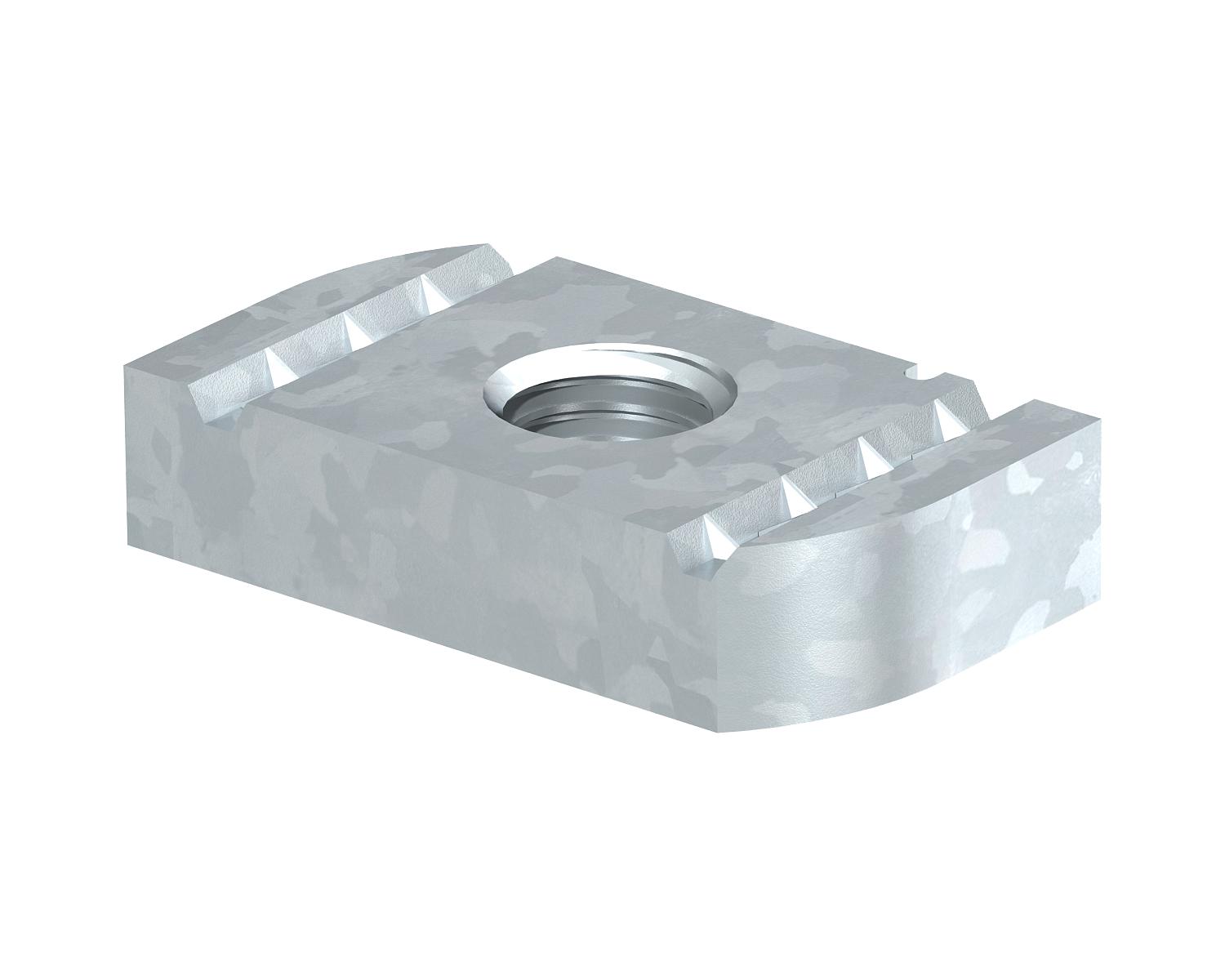

Slide nut ZL

Item no. 1147206 | EAN 4012196489855

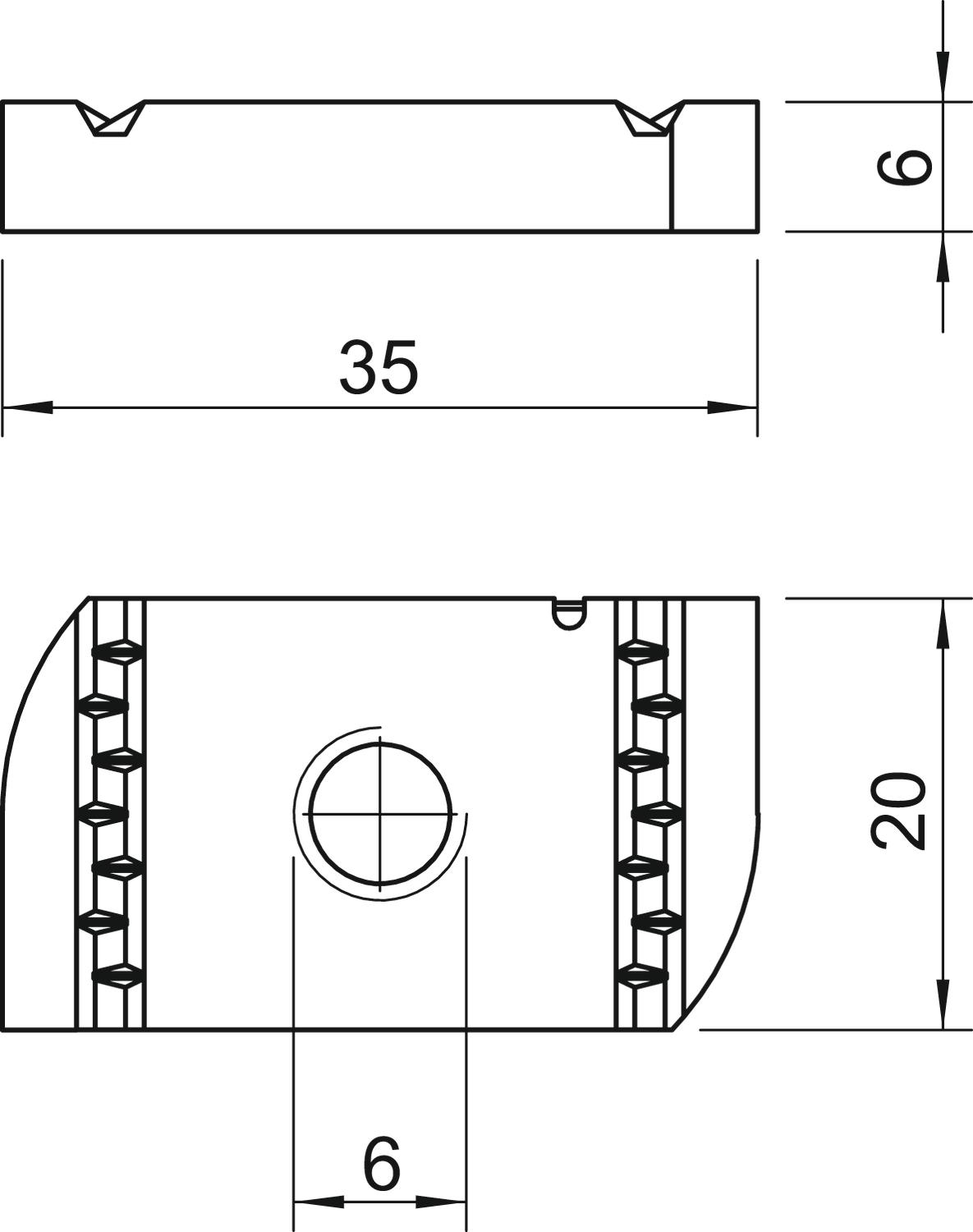

35 mm
20 mm
Product description

Product description

Slide nut for use with MS4121 und MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

Dimension M6
Height 6 mm
Length 35 mm
Material Steel
Surface Zinc slat
Thread M6
Thread metric 6
Width 20 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41SN M6 ZL 35 mm 20 mm 6 mm M6 1147206
50 piece
MS41SN M8 ZL 35 mm 20 mm 6 mm M8 1147210
50 piece
MS41SN M10 ZL 35 mm 20 mm 8 mm M10 1147214
50 piece
MS41SN M12 ZL 35 mm 20 mm 9.5 mm M12 1147218
50 piece
