Slide nut ZL 26 | 16.5 | 4 | M6
morepic-1 morepic-2 video-1

Slide nut ZL

Item no. 1147056 | EAN 4012196488810

26 mm
16.5 mm
Product description
Product description

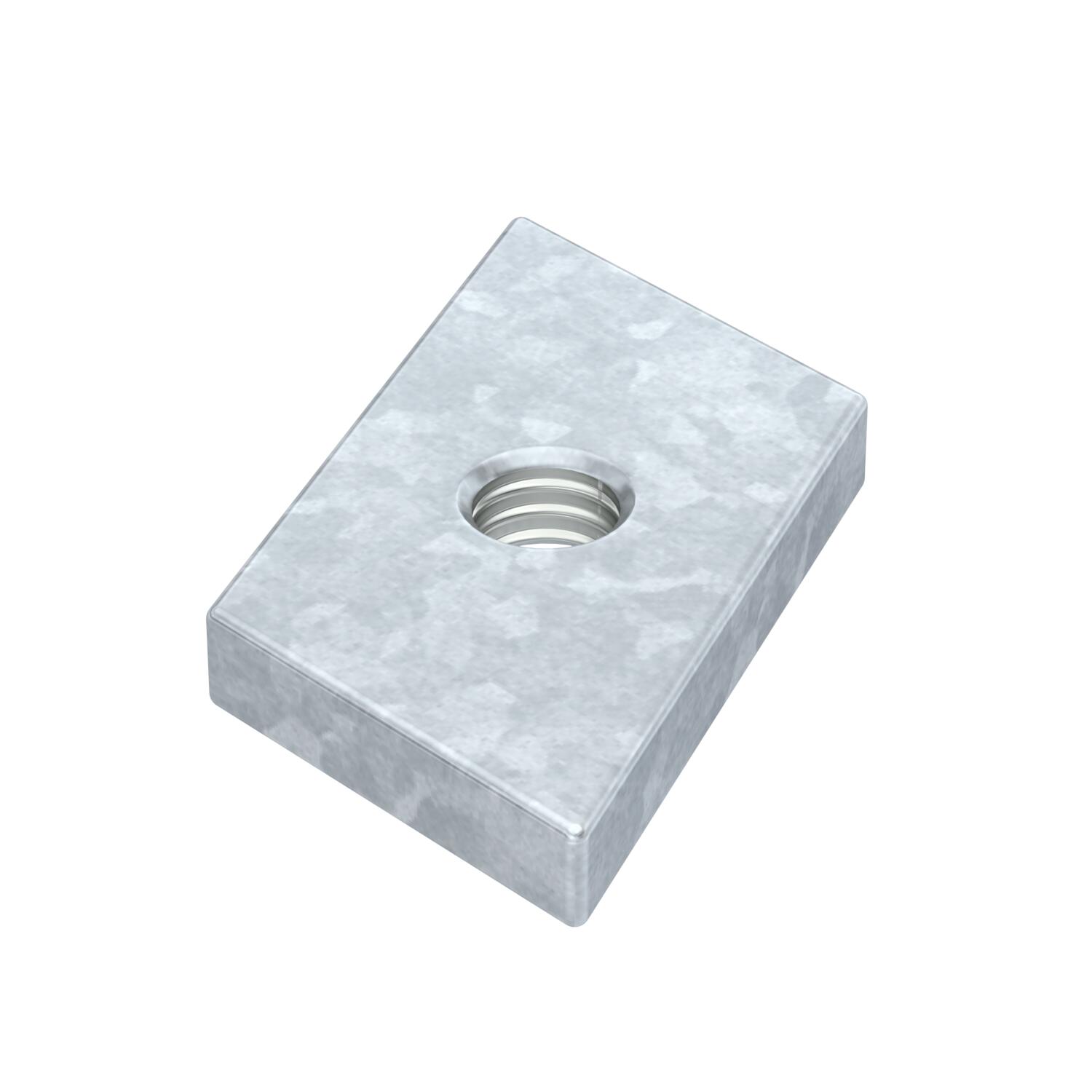

Slide nut for use with CM3015, CM3518 and AM3518 profile rails.


Slide nut for use with C30 profile rungs.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16.5 mm for C profile
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,026 kg CO₂e / 1 Piece

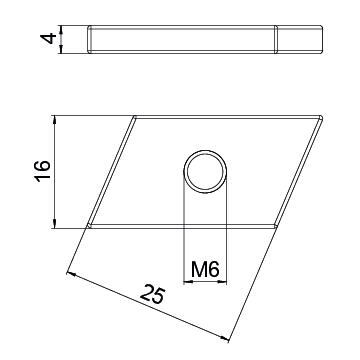

Dimension M6
Dimension B 16,5 mm
Dimension H 4 mm
Dimension L 26 mm
Height 4 mm
Length 26 mm
Material Steel
Surface Zinc slat
Thread M6
Thread metric 6
Width 16,5 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
ACMSN M6 ZL 26 mm 16.5 mm 4 mm M6 1147056
100 piece
ACMSN M8 ZL 26 mm 16.5 mm 5 mm M8 1147060
100 piece
ACMSN M10 ZL 26 mm 16.5 mm 6 mm M10 1147064
100 piece
