Slide nut with spring A4 35 | 20 | 9 | M12
morepic-1 morepic-2

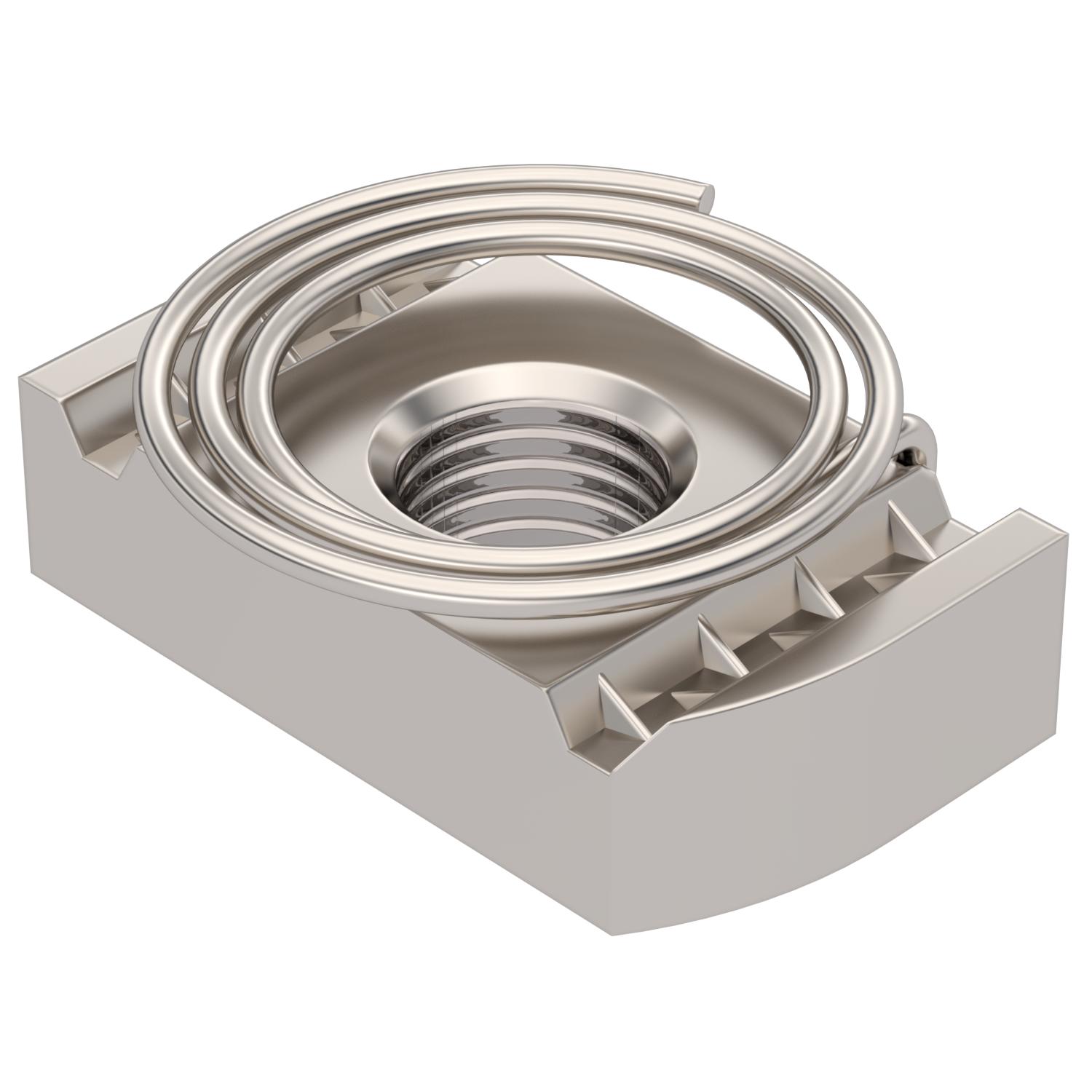

Slide nut with spring A4

Item no. 1147348 | EAN 4012196490028

35 mm
20 mm
Product description
Product description
Slide nut with spring for use with MS4121 und MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,22 kg CO₂e / 1 Piece

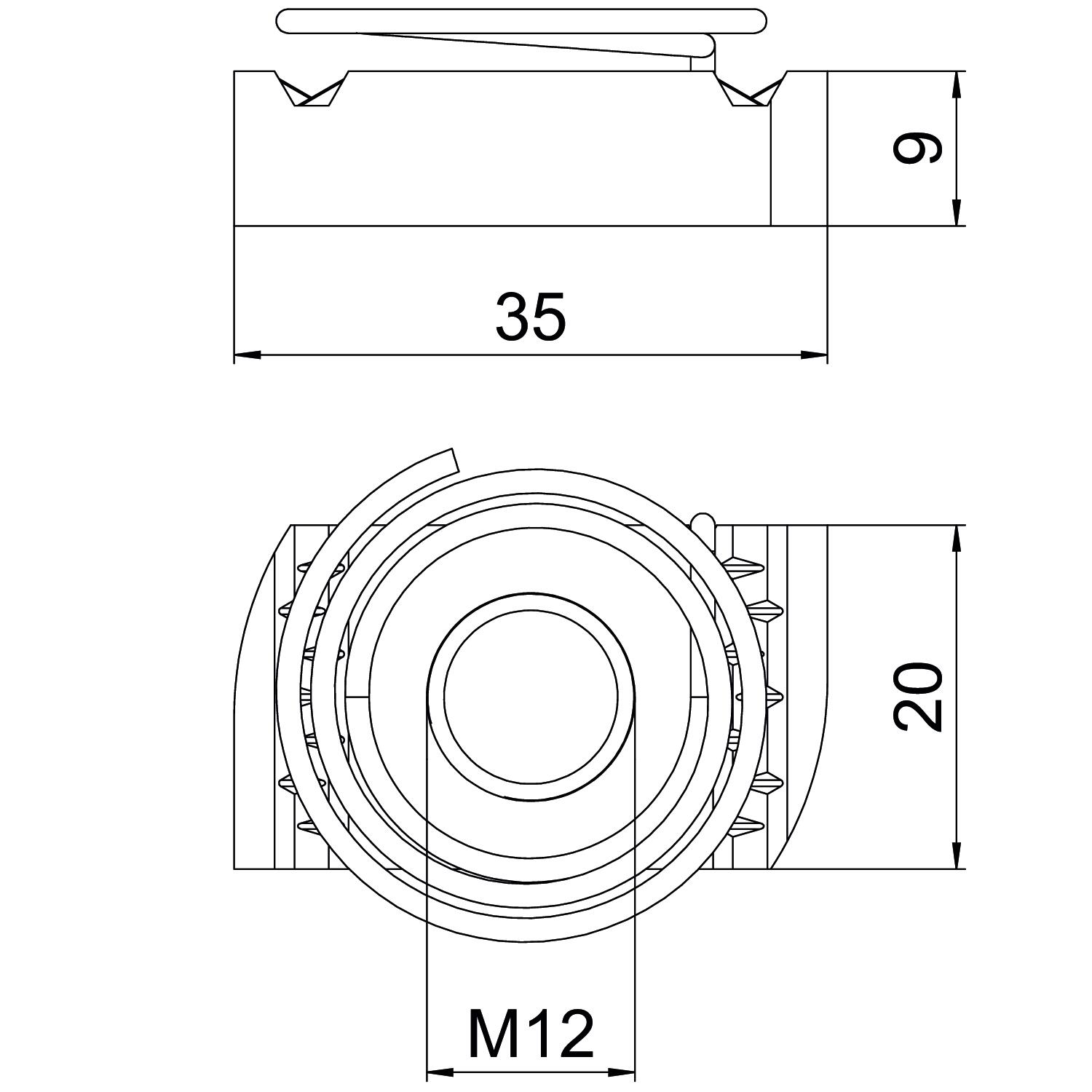

Dimension M12
Dimension H 9 mm
Height 9 mm
Length 35 mm
Material Stainless steel
Surface Bright, treated
Thread M12
Thread metric 12
Width 20 mm
With spring yes
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41SNF M6 A4 35 mm 20 mm 6 mm M6 1147336
50 piece
MS41SNF M8 A4 35 mm 20 mm 6 mm M8 1147340
50 piece
MS41SNF M10 A4 35 mm 20 mm 8 mm M10 1147344
50 piece
MS41SNF M12 A4 35 mm 20 mm 9 mm M12 1147348
50 piece
