Slide nut A4 35 | 20 | 9 | M12
morepic-1 morepic-2

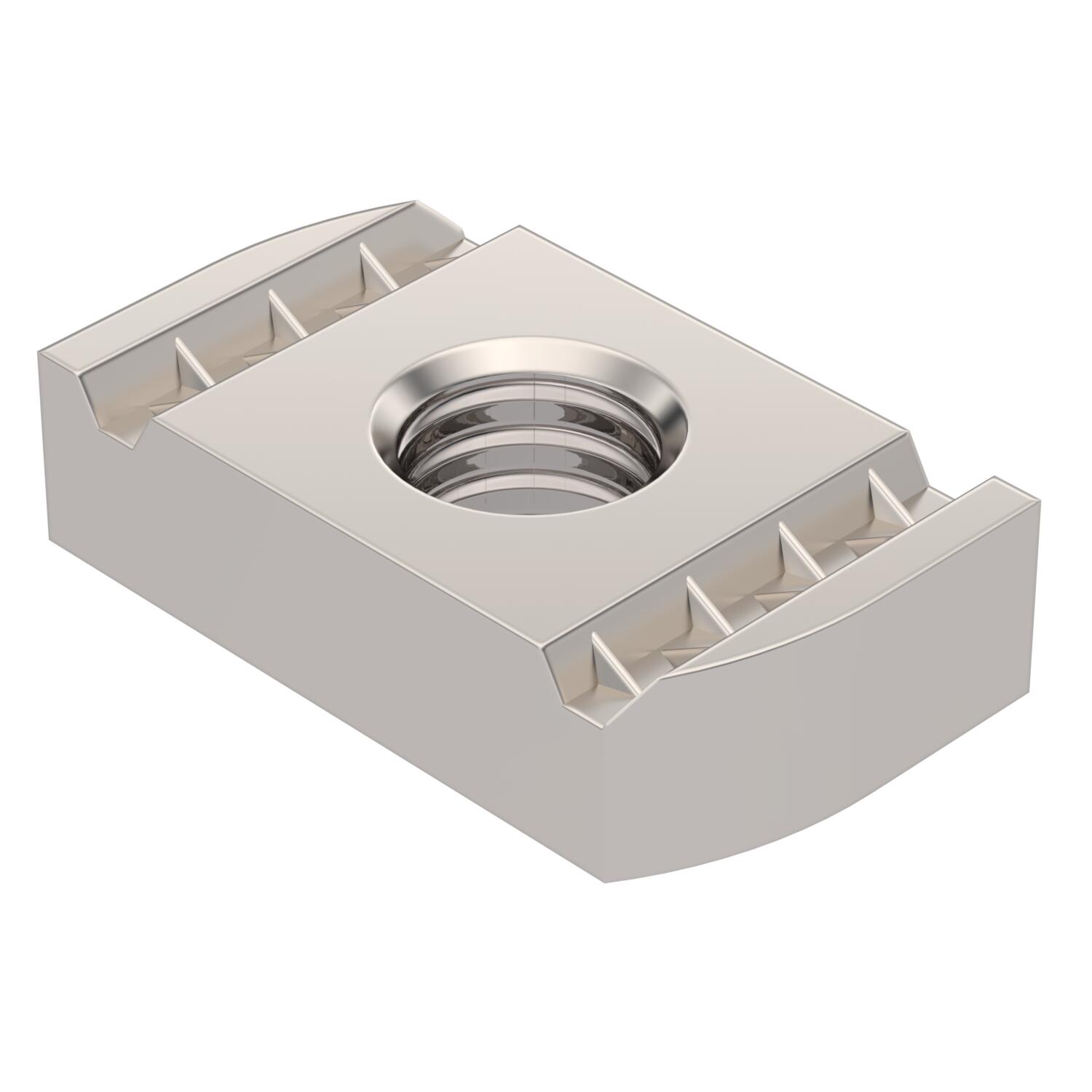

Slide nut A4

Item no. 1147238 | EAN 4012196489923

35 mm
20 mm
Product description
Product description
Slide nut for use with MS4121 und MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,202 kg CO₂e / 1 Piece

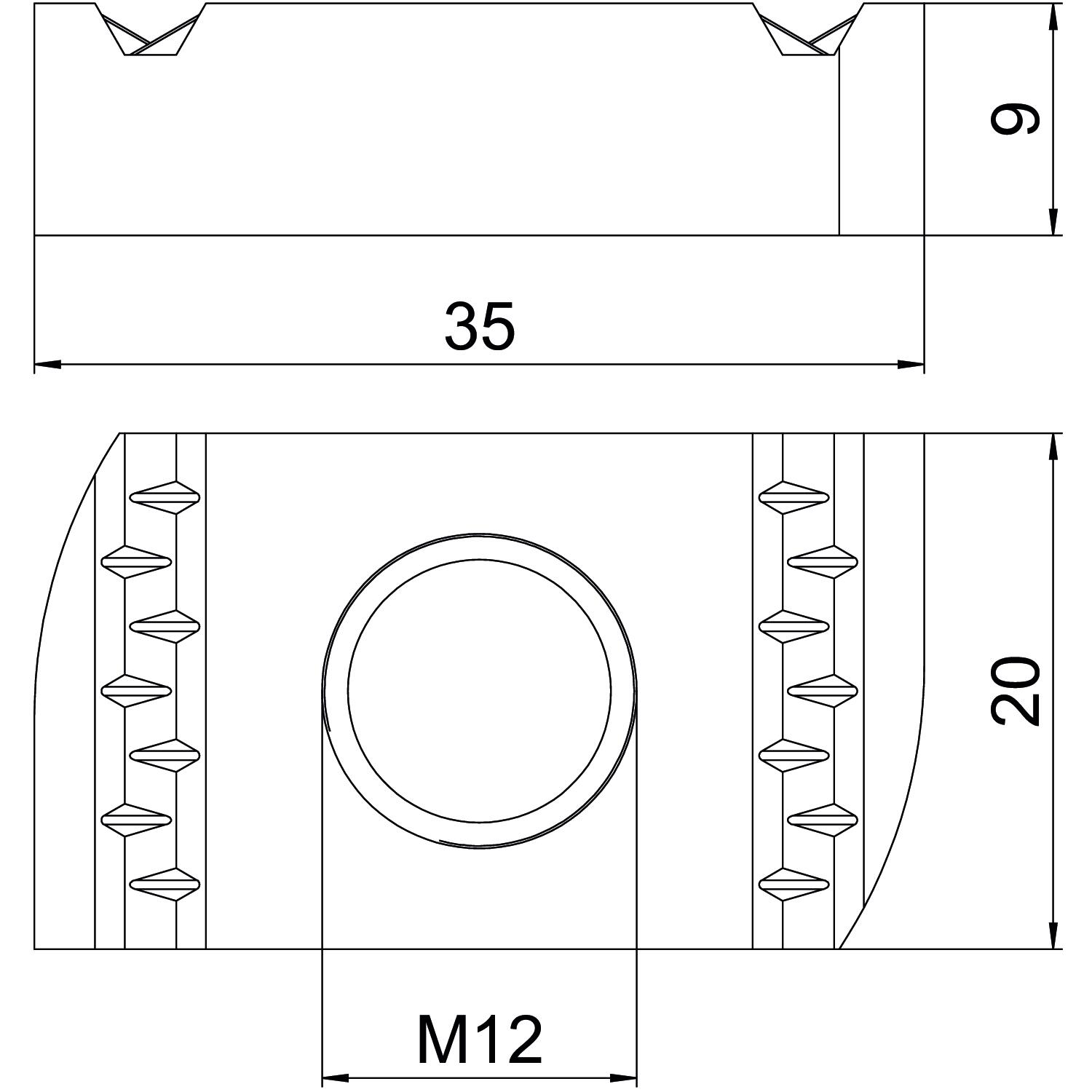

Dimension M12
Dimension H 9 mm
Height 9 mm
Length 35 mm
Material Stainless steel
Surface Bright, treated
Thread M12
Thread metric 12
Width 20 mm
With spring no
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41SN M6 A4 35 mm 20 mm 6 mm M6 1147226
50 piece
MS41SN M8 A4 35 mm 20 mm 6 mm M8 1147230
50 piece
MS41SN M10 A4 35 mm 20 mm 8 mm M10 1147234
50 piece
MS41SN M12 A4 35 mm 20 mm 9 mm M12 1147238
50 piece
